AOC Pixel Policy ISO 9241-307 Class 1
July 25
th
, 2013
AOC strives to deliver the highest quality products. We use some of the industry‟s most advanced manufacturing
processes and practice stringent quality control. However, pixel or sub pixel defects on the TFT monitor panels
used in flat panel monitors are sometimes unavoidable. No manufacturer can guarantee that all panels will be free
from pixel defects, but AOC guarantees that any monitor with an unacceptable number of defects will be repaired or
replaced under warranty. This Pixel Policy explains the different types of pixel defects and defines acceptable
defect levels for each type. In order to qualify for repair or replacement under warranty, the number of pixel defects
on a TFT monitor panel must exceed these acceptable levels.

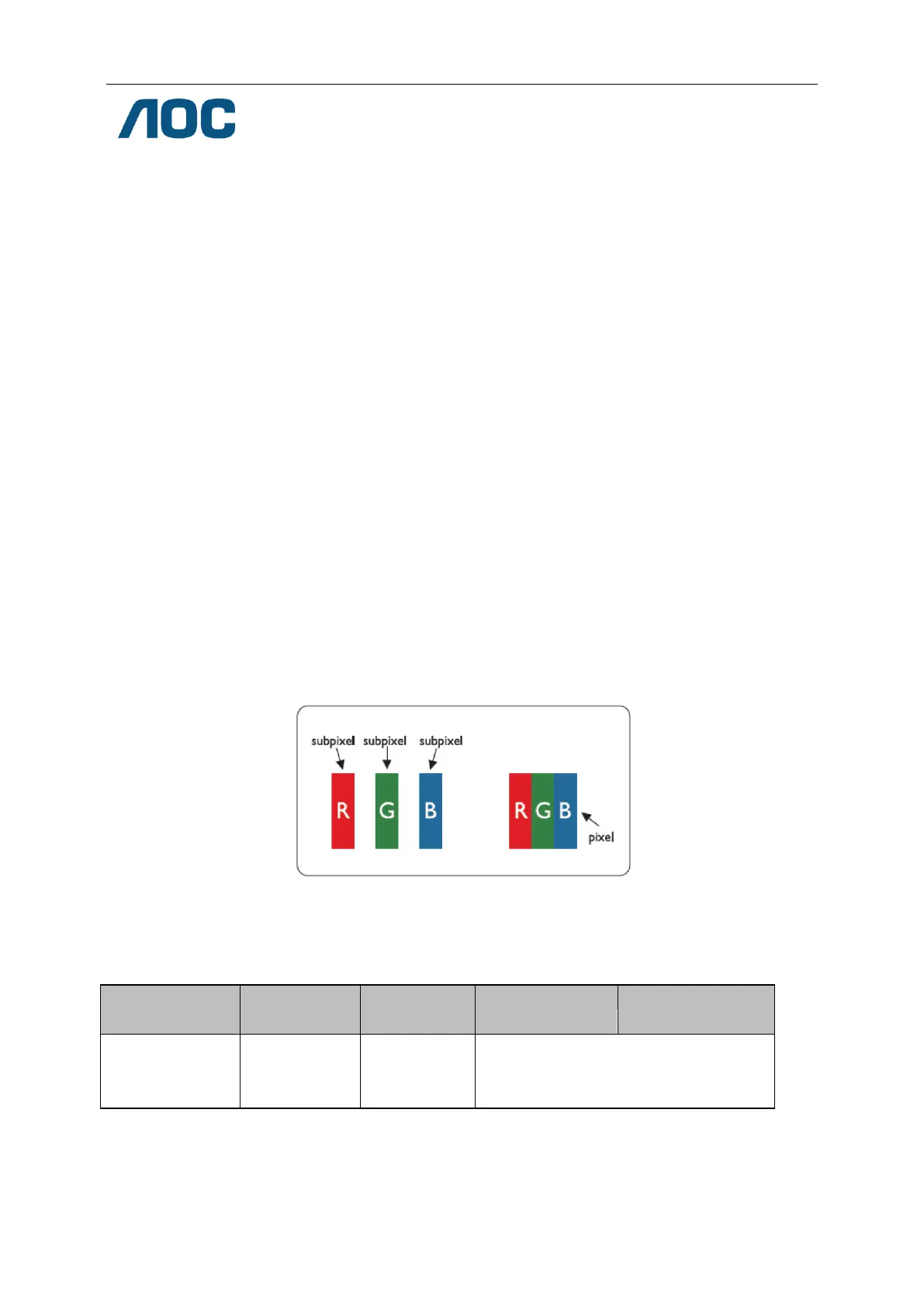

Pixels and Sub Pixel Definition
A pixel, or picture element, is composed of three sub pixels in the primary colors of red, green and blue. When all
sub pixels of pixel are lit, the three colored sub pixel together appear as a single white pixel. When all are dark, the
three colored sub pixels together appear as a single black pixel.
Types of Pixel Defects
 Bright Dot Defects: the monitor displays a dark pattern, sub pixels or pixels are always lit or “on”
 Black Dot Defects: the monitor displays a light pattern, sub pixels or pixels are always dark or “off”.
ISO 9241-307
Pixel Defect Class
Defect Type
1Bright Pixel
Defect Type 2
Black Pixel
Defect Type 3
Bright Sub pixel
Defect Type 4
Black Sub pixel
Classe 1
1
1
2
1
0
+
+
+
1
3
5
AOC International (Europe) B.V.

AOC M2470SWH Specifications

General

3D	No
Panel type	MVA
Pixel pitch	0.2715 x 0.2715 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	-
Pixel frequency	165 MHz
Display diagonal	23.6 \
Surface hardness	3H
Display technology	LED
Maximum refresh rate	60 Hz
Supported video modes	1080p
Viewable size, vertical	293.32 mm
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display brightness (peak)	- cd/m²
Display diagonal (metric)	59.944 cm
Viewable size, horizontal	521.28 mm
Digital vertical frequency	50 - 76 Hz
Digital horizontal frequency	30 - 83 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
HDMI version	1.4
Headphone connectivity	3.5 mm
USB Type-A downstream ports quantity	0
RMS rated power	2 W
Exterior finish type	Textured
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Certification	True
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
Tilt angle range	-5 - 25 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.19 W
Power consumption (standby)	0.37 W
Power consumption (typical)	17.96 W
Package type	Box
Package depth	435 mm
Package width	620 mm
Package height	127 mm
Package weight	5210 g
VGA cable length	1.2 m
Cables included	AC, HDMI, VGA
HDMI cable length	1.5 m
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	221 mm
Height (with stand)	400.4 mm
Weight (with stand)	3580 g
Depth (without stand)	78.2 mm
Width (without stand)	551.4 mm
Height (without stand)	396.9 mm
Weight (without stand)	- g
