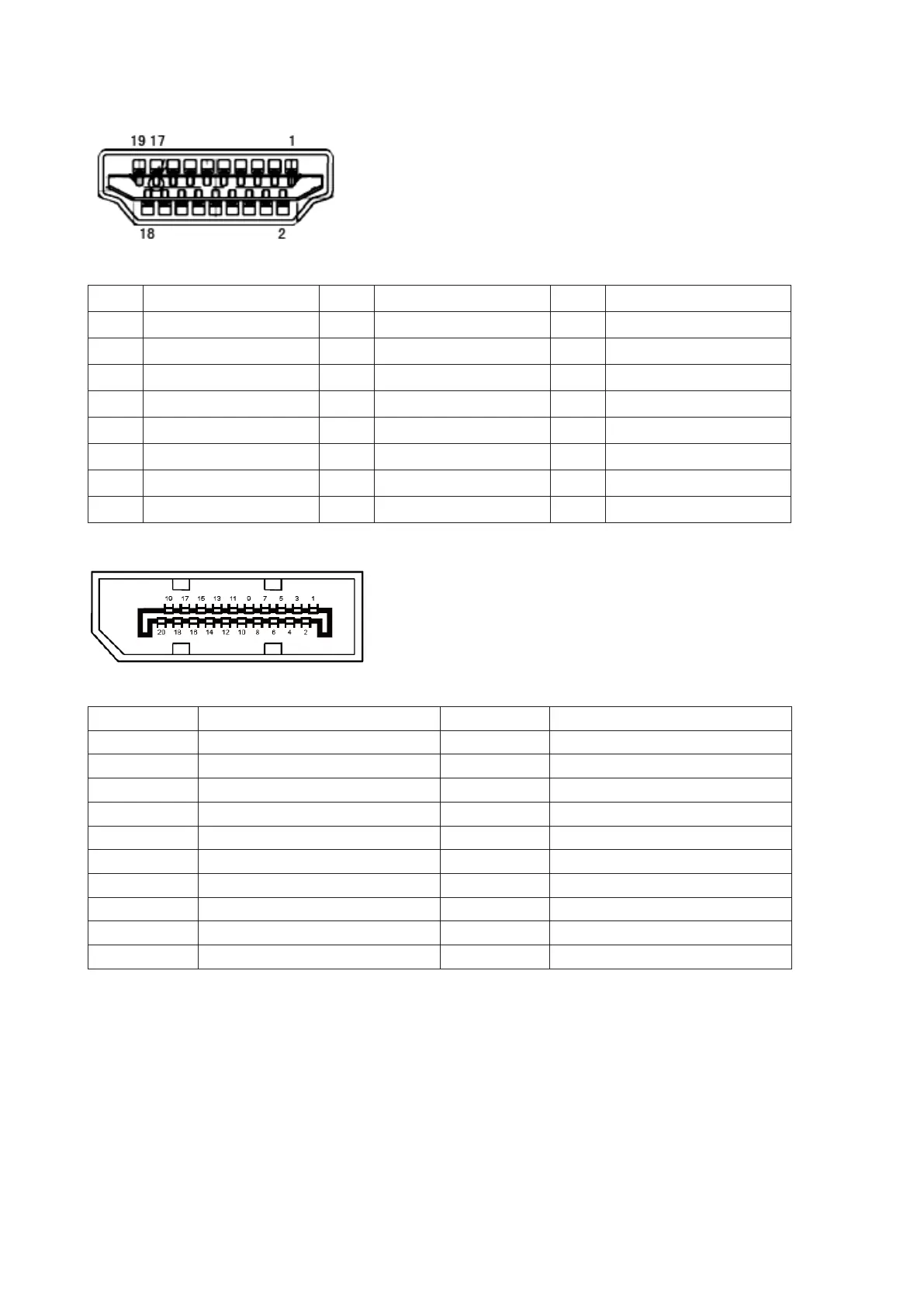

Pin Assignments

19-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND

2 GND 12 ML_Lane 0 (p)

3 ML_Lane 3 (p) 13 CONFIG1

4 ML_Lane 2 (n) 14 CONFIG2

5 GND 15 AUX_CH(p)

6 ML_Lane 2 (p) 16 GND

7 ML_Lane 1 (n) 17 AUX_CH(n)

8 GND 18 Hot Plug Detect

9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR

Questions and Answers:

Need help?

Do you have a question about the AOC Q32G3S and is the answer not in the manual?

AOC Q32G3S Specifications

General

Color gamut	97 %
Pixel pitch	0.273 x 0.273 mm
Screen shape	Flat
Display diagonal	31.5 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	- Hz
NTSC coverage (typical)	106 %
Viewable size, vertical	392.688 mm
sRGB coverage (typical)	120 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Viewable size, horizontal	698.112 mm
Display brightness (typical)	250 cd/m²
HDMI	Yes
HDCP version	2.2
DisplayPort version	1.4
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	37 W
Tilt angle range	-5 - 23 °
Panel mounting interface	100 x 100 mm
Certification	RCM / MEPS / CE / CB/ FCC / KC/KCC/e-Standby / BSMI
Product color	Black, Red
Front bezel color	Black/Red
Market positioning	Gaming
AMD FreeSync type	FreeSync Premium
NVIDIA G-SYNC type	G-SYNC Compatible
