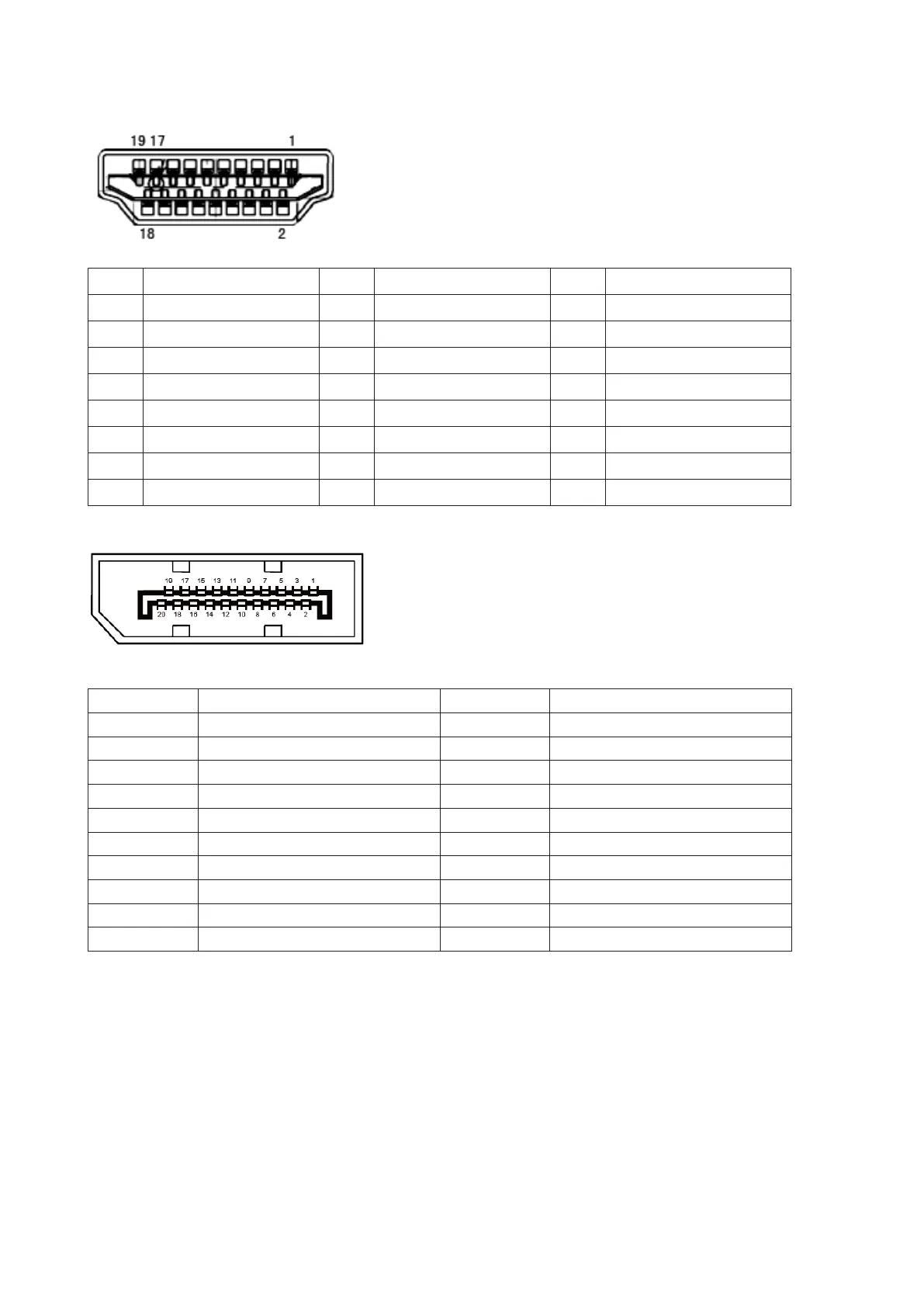

Pin Assignments

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND

2 GND 12 ML_Lane 0 (p)

3 ML_Lane 3 (p) 13 CONFIG1

4 ML_Lane 2 (n) 14 CONFIG2

5 GND 15 AUX_CH(p)

6 ML_Lane 2 (p) 16 GND

7 ML_Lane 1 (n) 17 AUX_CH(n)

8 GND 18 Hot Plug Detect

9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR

Questions and Answers:

Need help?

Do you have a question about the AOC Q32V3S and is the answer not in the manual?

AOC Q32V3S Specifications

General

Feet color	White
Product color	Silver, White
Market positioning	Business
Pixel pitch	0.273 x 0.273 mm
Screen shape	Flat
Display diagonal	31.5 \
Native aspect ratio	-
Maximum refresh rate	75 Hz
NTSC coverage (typical)	89 %
sRGB coverage (typical)	101 %
Contrast ratio (typical)	1200:1
Display number of colors	16.7 million colors
Display diagonal (metric)	80 cm
Display brightness (typical)	250 cd/m²
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	47 W
Tilt angle range	1.5 - 16.5 °
Panel mounting interface	100 x 100 mm
HDMI cable length	1.8 m
Sustainability certificates	CE
