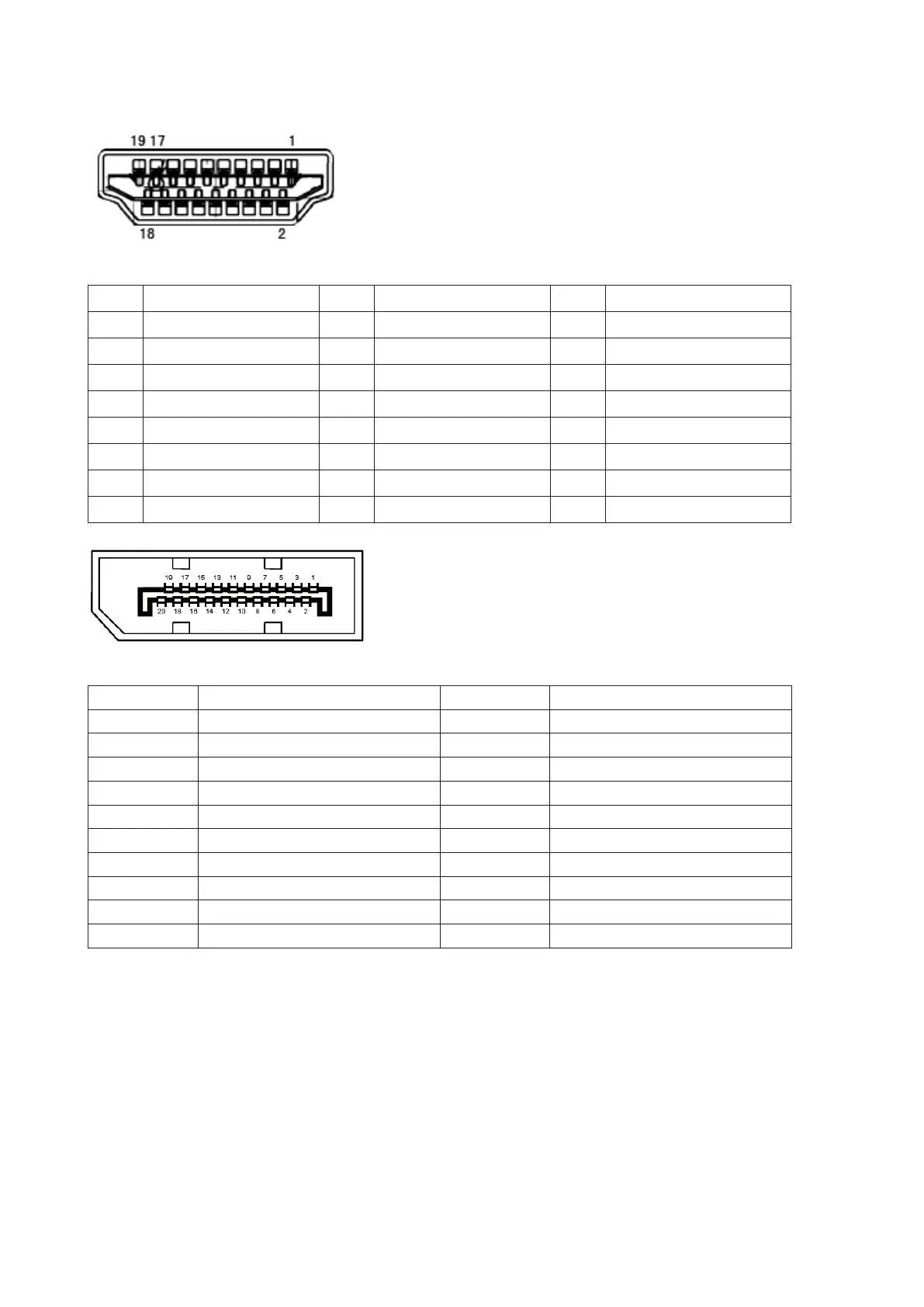

Pin Assignments

19-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND

2 GND 12 ML_Lane 0 (p)

3 ML_Lane 3 (p) 13 CONFIG1

4 ML_Lane 2 (n) 14 CONFIG2

5 GND 15 AUX_CH(p)

6 ML_Lane 2 (p) 16 GND

7 ML_Lane 1 (n) 17 AUX_CH(n)

8 GND 18 Hot Plug Detect

9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR

Questions and Answers:

Need help?

Do you have a question about the AOC Q34E2A and is the answer not in the manual?

AOC Q34E2A Specifications

General

Certification	True
Product color	Black
Detachable stand	Yes
Heavy metals free	Hg (mercury)
Market positioning	Business
Color depth	8 bit
Screen shape	Flat
Pixel density	81 ppi
Backlight type	W-LED
Display surface	Matt
Display diagonal	34 \
Surface hardness	3H
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Adobe RGB coverage	91 %
Display resolution	2560 x 1080 pixels
Display technology	LED
Native aspect ratio	21:9
Maximum refresh rate	75 Hz
Supported video modes	1080p
NTSC coverage (typical)	85 %
sRGB coverage (typical)	123 %
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	86.36 cm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1080
Tilt angle range	-6 - 23 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
HDMI version	1.4
DisplayPort version	1.2
Headphone connectivity	3.5 mm
VGA (D-Sub) ports quantity	0
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.3 W
Power consumption (typical)	36 W
Sustainability certificates	EPEAT Silver
RMS rated power	3 W
HDMI cable length	1.8 m
Package type	Box
Package depth	187 mm
Package width	940 mm
Package height	506 mm
Package weight	10900 g
Exterior finish type	Textured
Recyclable packaging material	100 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	253.8 mm
Height (with stand)	475 mm
Weight (with stand)	8100 g
Depth (without stand)	55.7 mm
Width (without stand)	817.4 mm
Height (without stand)	370.7 mm
