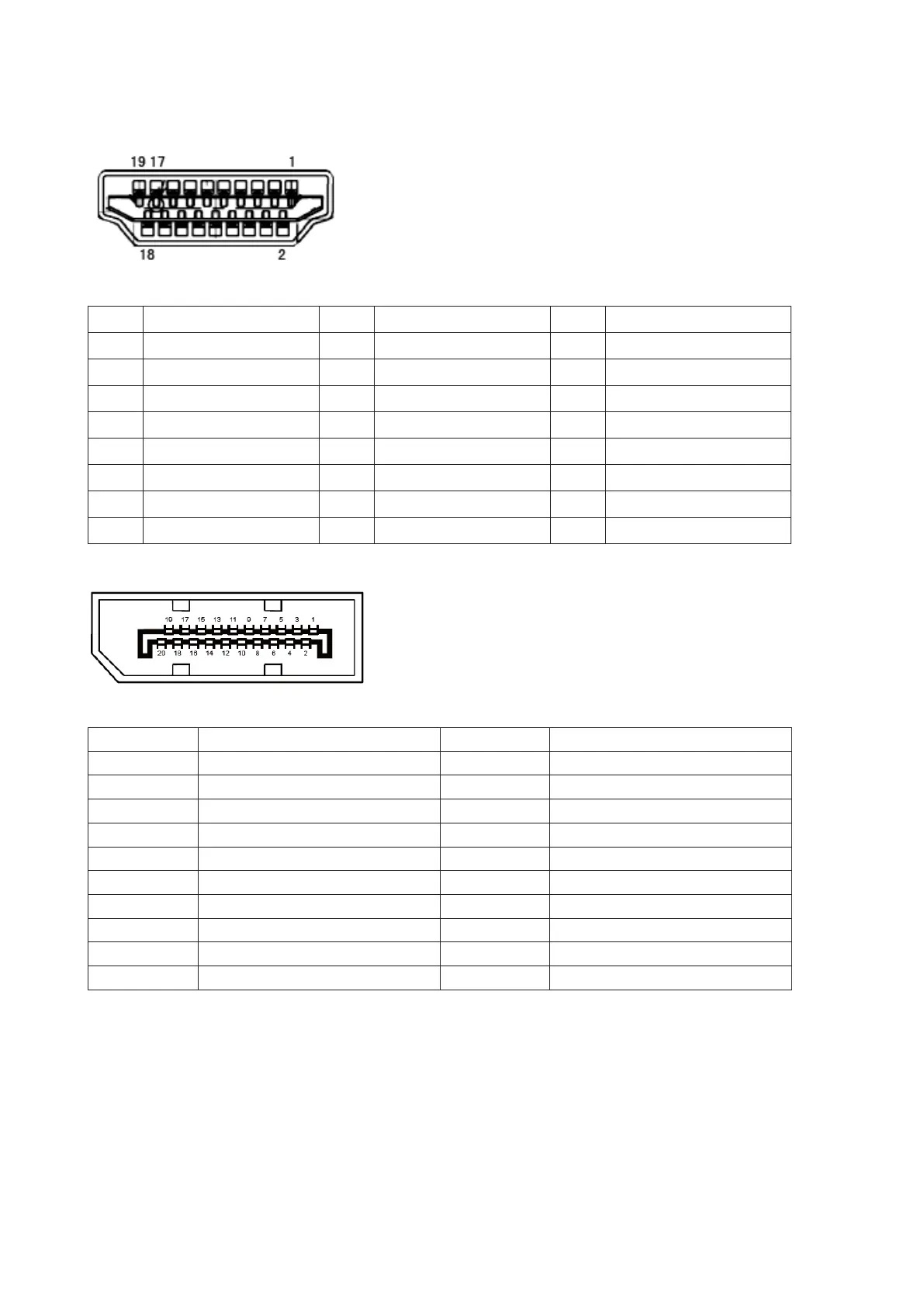

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC U27V4EA Specifications

General

Color depth	10 bit
Aspect ratio	4:3, 16:9
Screen shape	Flat
Pixel density	163 ppi
Backlight type	W-LED
Display surface	Matt
Display diagonal	27 \
Surface hardness	3H
Anti-glare screen	Yes
Adobe RGB coverage	83 %
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Supported video modes	1080p, 1440p, 2160p
NTSC coverage (typical)	79 %
sRGB coverage (typical)	112 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	68.58 cm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080), 2550 x 1440, 3840 x 2160
RMS rated power	2 W
Number of speakers	2
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
DisplayPort version	1.2
Headphone connectivity	3.5 mm
VGA (D-Sub) ports quantity	0
Tilt angle range	-5 - 23 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	33 W
HDMI cable length	1.5 m
Package type	Box
Package depth	167 mm
Package width	683 mm
Package height	461 mm
Package weight	7550 g
Exterior finish type	Textured
Recyclable packaging material	100 %
Harmonized System (HS) code	85285210
Sustainability certificates	WEEE

Weight and Dimensions

Depth (with stand)	187.2 mm
Width (with stand)	613.7 mm
Height (with stand)	462 mm
Weight (with stand)	5130 g
Depth (without stand)	49.2 mm
Height (without stand)	364.2 mm
