AOC U28G2XU User Manual

26

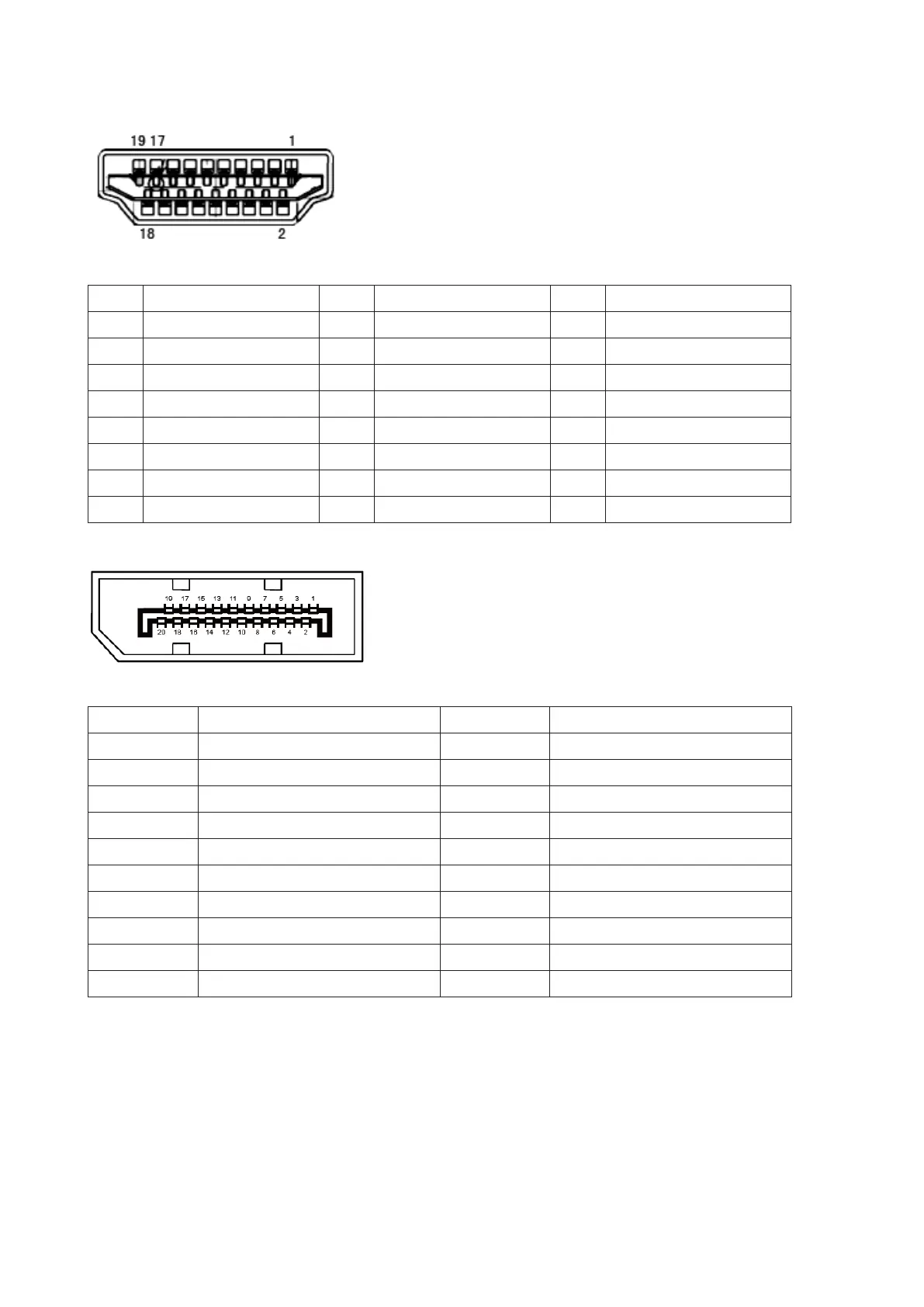

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC U28G2XU Specifications

General

Certification	True
Product color	Black, Red
Detachable stand	Yes
Country of origin	China
Front bezel color	Black/Red
Heavy metals free	Hg (mercury)
Market positioning	Gaming
NVIDIA G-SYNC	No
AMD FreeSync type	FreeSync Premium
AMD FreeSync refresh rate range	48 - 144 Hz
Color depth	8 bit
Screen shape	Flat
Backlight type	W-LED
Display diagonal	28 \
Surface hardness	3H
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Adobe RGB coverage	105 %
Display technology	LED
Native aspect ratio	16:9
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	71.1 cm
Display brightness (typical)	370 cd/m²
High Dynamic Range (HDR) technology	DisplayHDR 400
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.4
Headphone connectivity	3.5 mm
USB Type-A downstream ports quantity	4
Tilt angle range	-5 - 21.5 °
Height adjustment	130 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
Package type	Box
Package depth	593 mm
Package width	160 mm
Package height	715 mm
Package weight	8620 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.5 W
Power consumption (standby)	0.3 W
Power consumption (typical)	- W
RMS rated power	3 W
Exterior finish type	Textured
Recyclable packaging material	100 %
Cables included	DisplayPort, HDMI
DisplayPort cable length	1.8 m
Sustainability certificates	CE, REACH, RoHS
Harmonized System (HS) code	85285210
Commodity Classification Automated Tracking System (CCATS)	8528521000

Weight and Dimensions

Depth (with stand)	244.9 mm
Width (with stand)	636.4 mm
Height (with stand)	469.5 mm
Weight (with stand)	6130 g
Depth (without stand)	49.3 mm
Height (without stand)	368.5 mm
