 Port⑥:Earphoneport，support3.5mm3‐poleearphone
jack;
 Position⑦:AntennaSMAjackconnector.


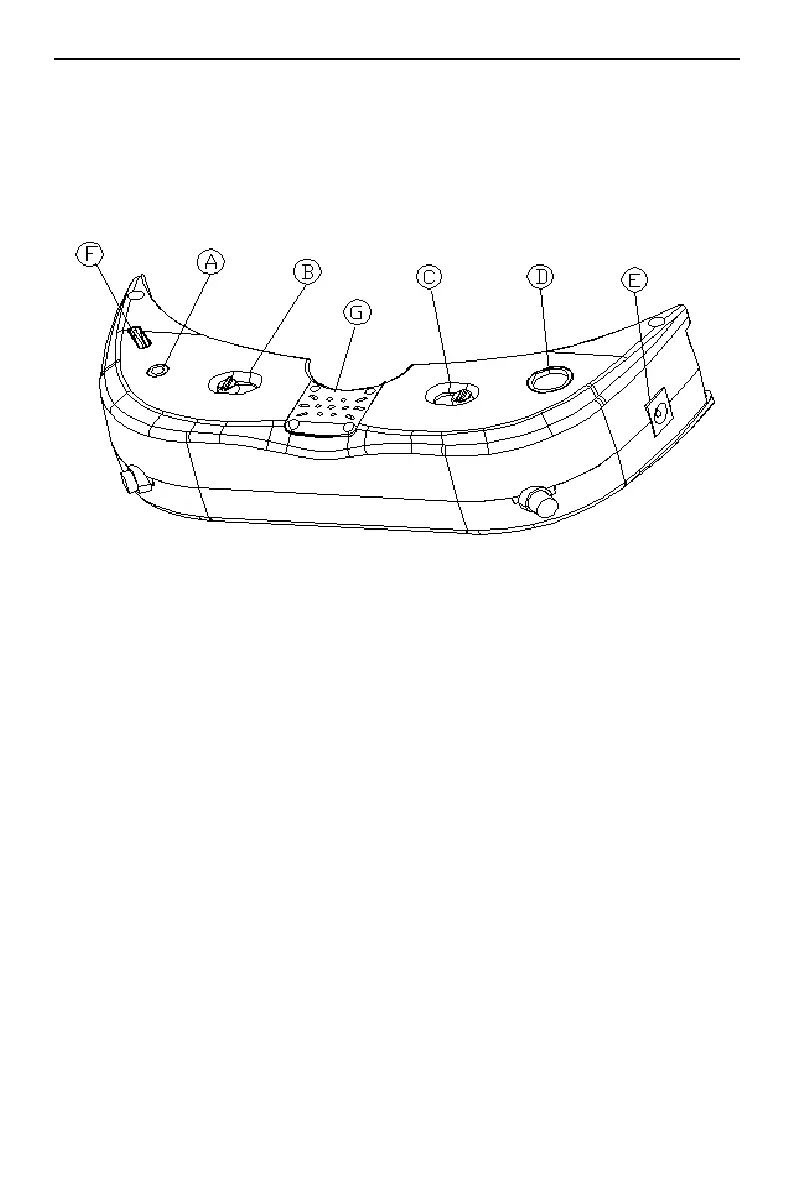

 Port A: AV in/out, support 3.5mm 4‐pole AV jack (when
useRFsignal,pleaseunplugAVcable);
 Position B and C: left and right interpupillary distanc e
slider;
 Port D: Head tracker output data  port (with secondary
powerinput);
 PortE:DCpowerinputport,voltage
range6‐17v;
 Port F: High definition multimedia interface connector,
support720pinput;
 PositionG:Ventilatingfanforanti‐fog.

5.OPERATION:
 TFcardshouldbeformattedbeforeuseforDVRrecording,
otherwiseitmaynotberecognized;
 PleaseshutoffpowerbeforeinsertorpulloutTFcardto
avoidunexpecteddamagetocardorgoggles;
