19

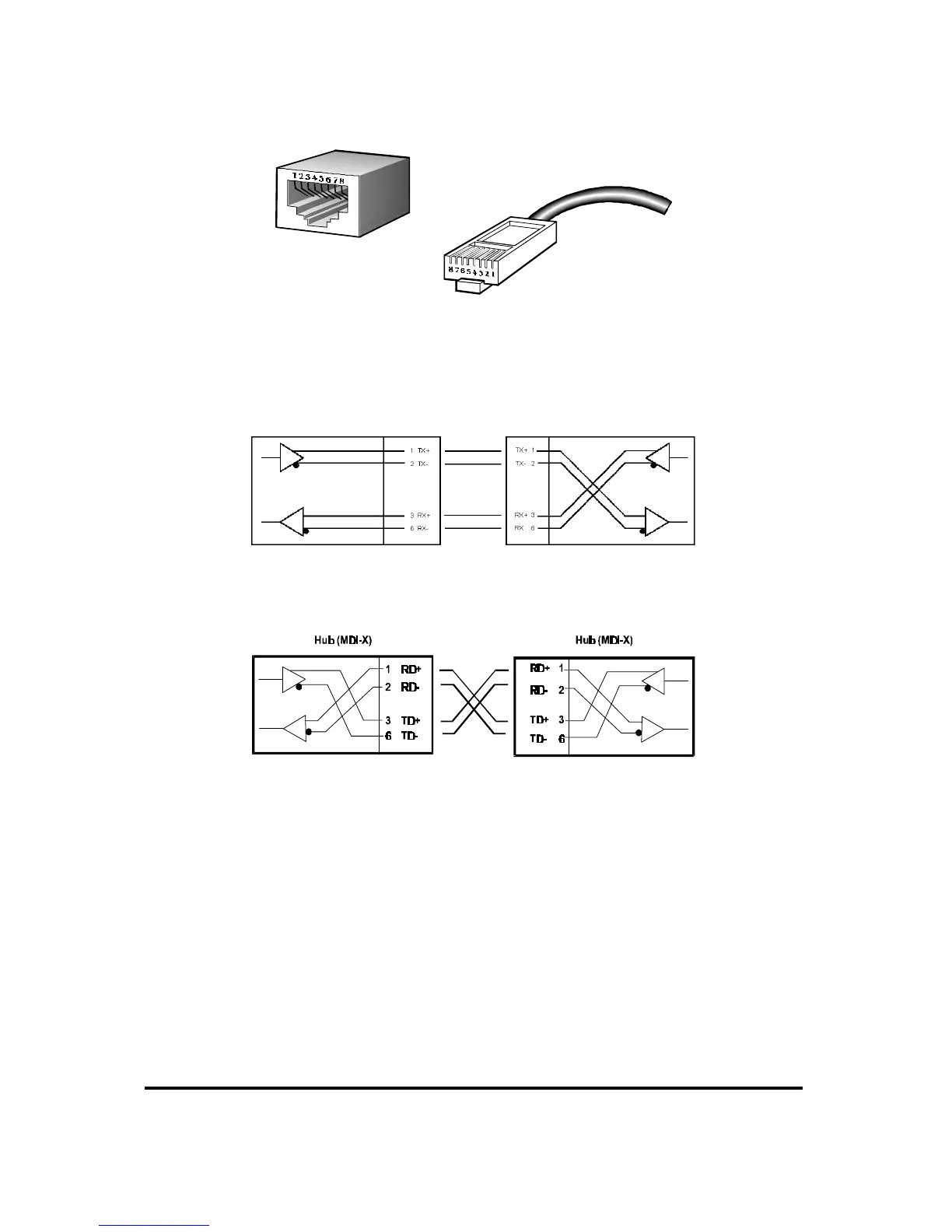

The standard RJ-45 receptacle/connector
The following shows straight cable and crossover cable
connection:
Straight cable for Switch (uplink MDI-II port) to
switch/Hub or other devices connection
Crossover cable for Switch (MDI-X port) to
switch/hub or other network devices (MDI-X port)
connection
