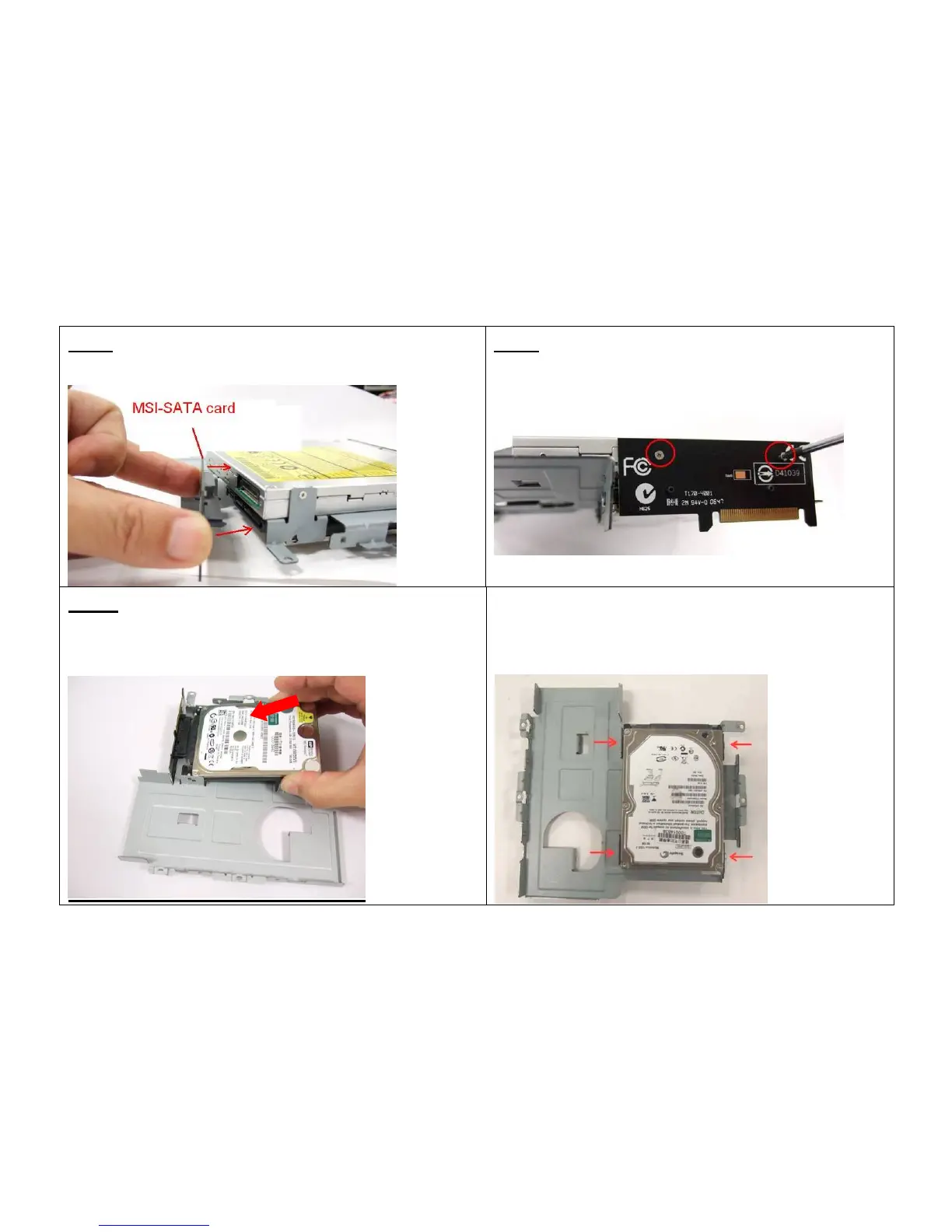

2-3-2.Insert the MPI-SATA card into HDD
2-3-3 Screw MPI-SATA card to ODD with 2
pcs of M2 screws.
(Screwdriver torque : 0.7±0.1kgf.cm)
2-3-4. Put the HDD on support
Please pay attention to the direction of SATA
HDD
and screw HDD with 4pcs of FPH M3 screw
(on both flanks)
(Screwdriver torque : 2.5 ±0.1 kgf. cm )
