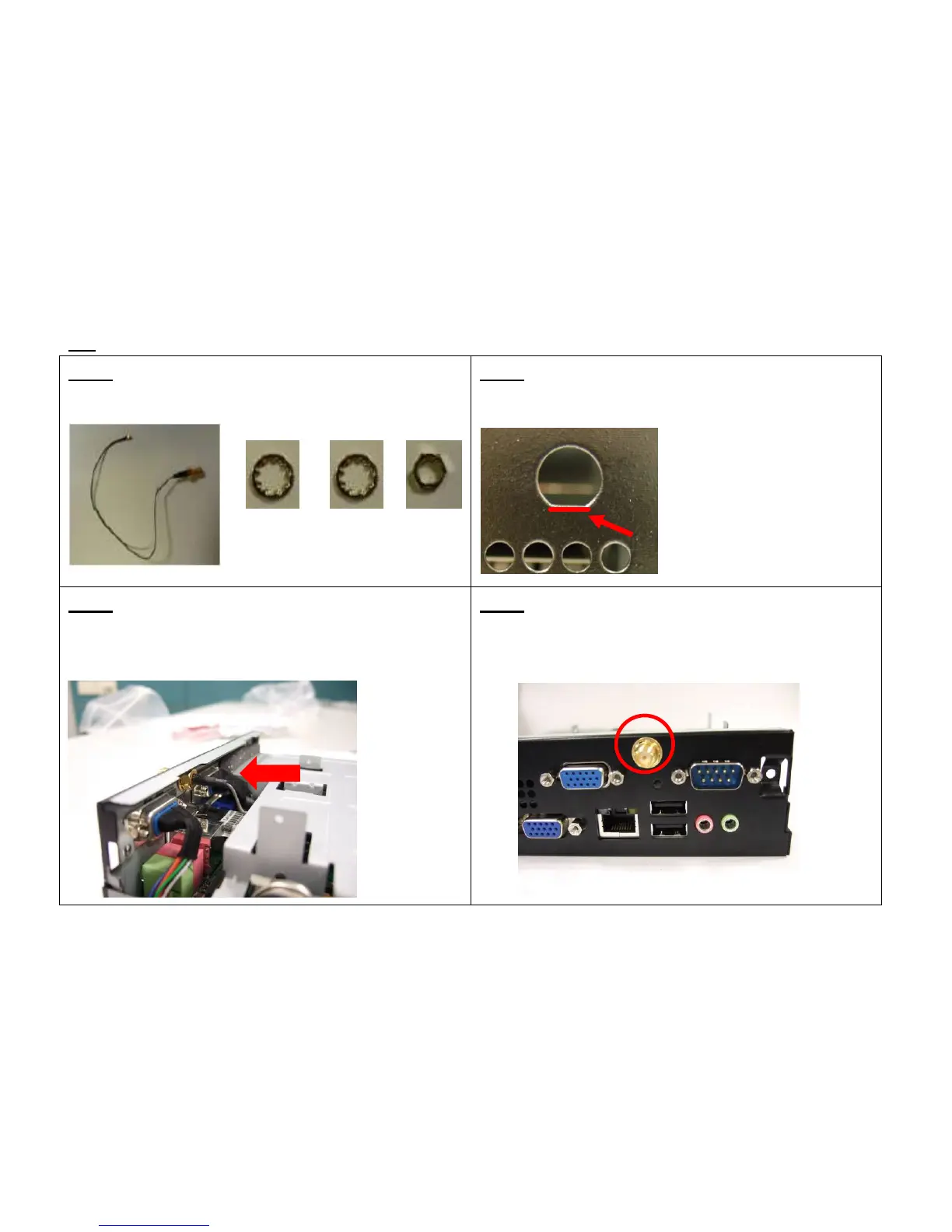

3-7 Assemble Module of Wireless LAN Mini Card or TV Tuner Mini Card
3-7-1. cable and nut
A,B inside housing; C,D outside housing
3-7-2. Note the hole shape to adjust the
antenna SMA connector to insert into the hole.
3-7-3. Insert a washer to one end of the
antenna wire . Attaching another washer and
nut to the antenna wire .
B
C
D
A
3-7-4. Use the screwdriver or the long nose
pliers to fix the nut . .
(Screwdriver torque : 1.5 ±0.1 kgf. cm )
