7. Appendix 2 Table of Screw and Torque

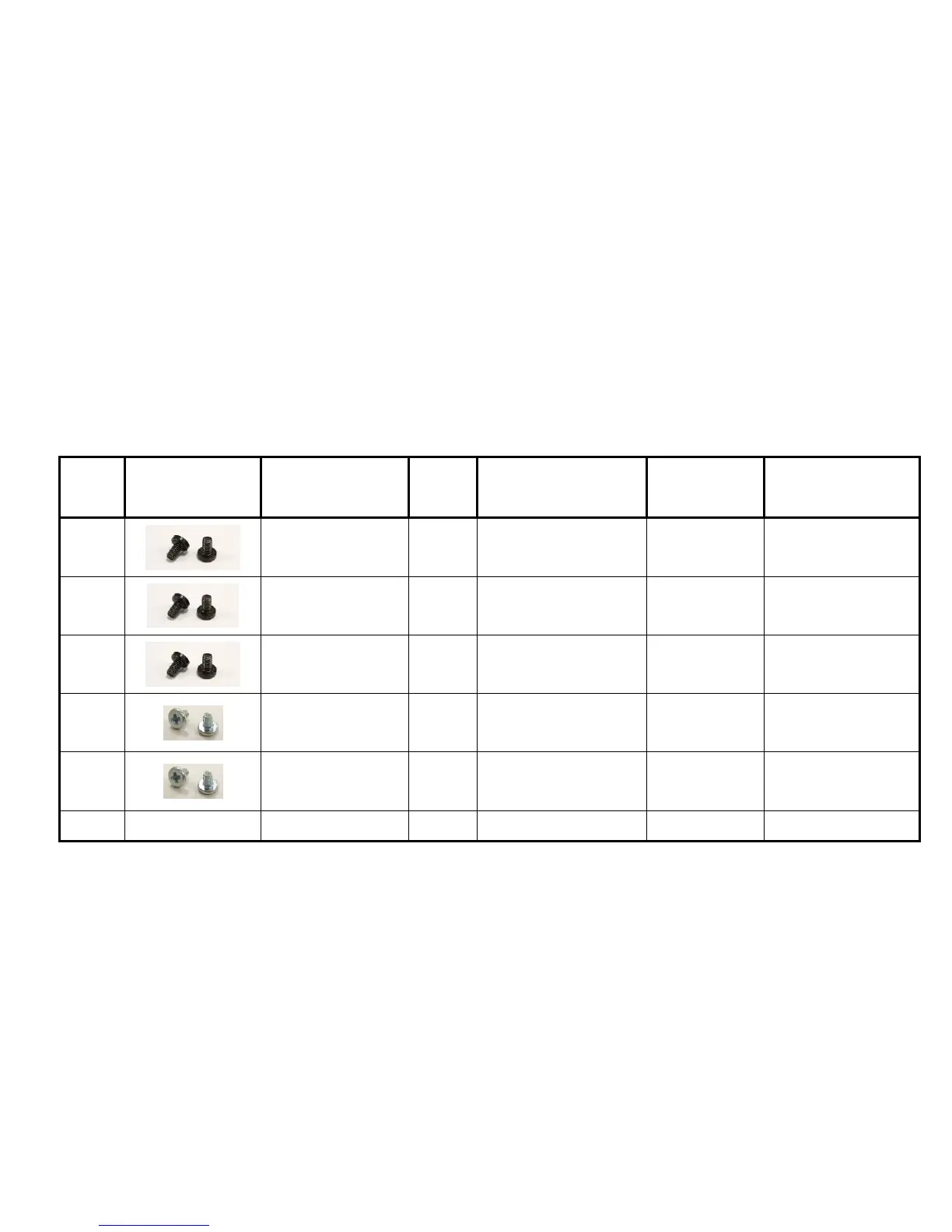

No. Screw Photo Position Q’ty Screw spec. Torque Screw driver
spec.
1 Rear side 2 FPH M3- L5 5±0. 2
kgf-cm
Phillips #2♁
2 HDD 4 FPH M3- L5 2.5±0. 2
kgf-cm
Phillips #2♁
Length ≧ 8cm
3 Supporter 4 FPH M3- L5 5±0. 2
kgf-cm
Phillips #2♁
4 MPI-SATA card 2 FPH M2- L3 0.7±0. 1
kgf-cm
Phillips #1♁
5 Slim ODD 4 FPH M2- L3 0.7±0. 1
kgf-cm
Phillips #1♁
Length ≧ 4cm
