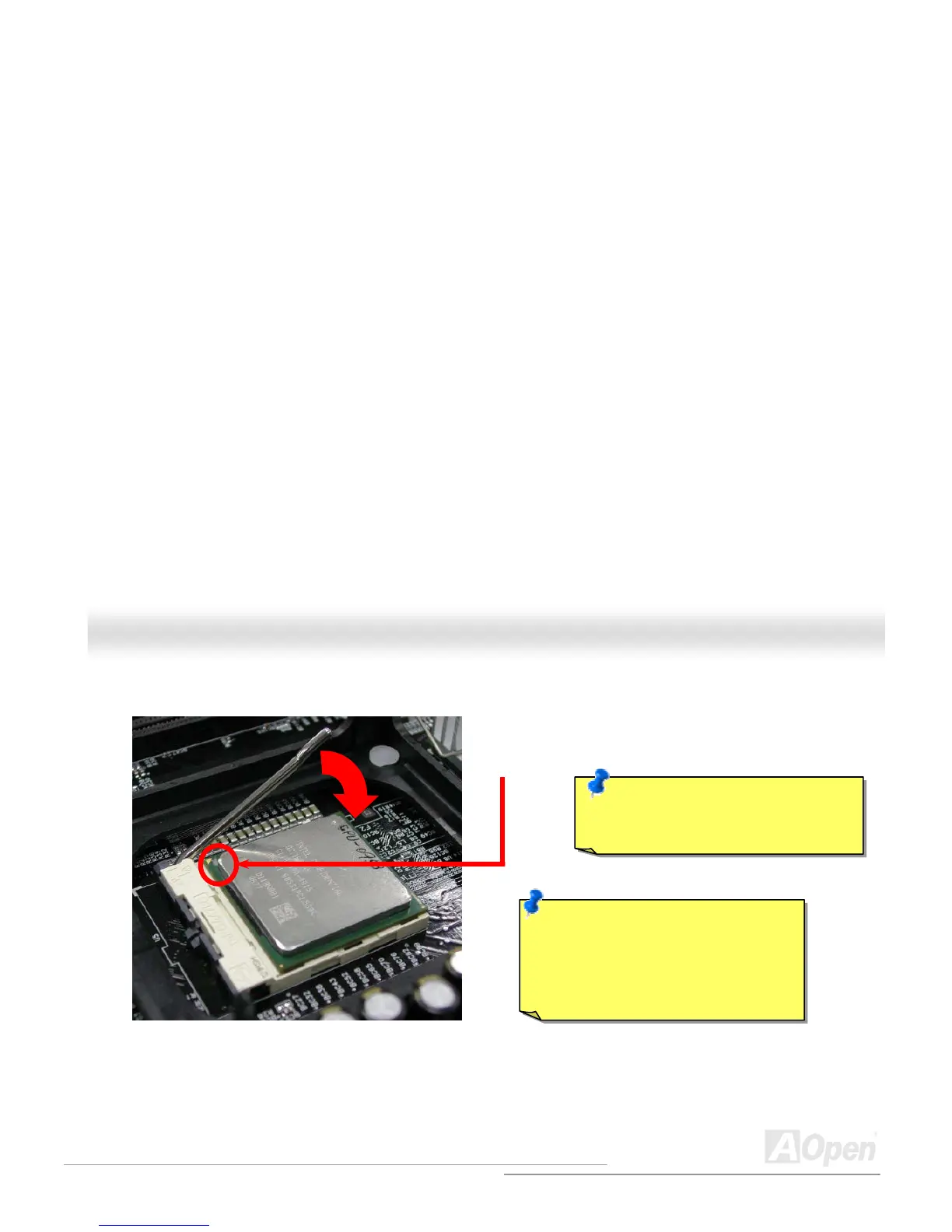

3. Press down the CPU socket lever and finish
CPU installation.
CPU cut edge
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, it
ma
y
dama
g
e the CPU.
Note: This socket supports
Micro-FC-PGA2 package CPU, which
is the latest CPU package developed
by Intel. Other forms of CPU package
are impossible to be fitted in.
Note: This picture is for example only, it may not exactly be the same motherboard.
