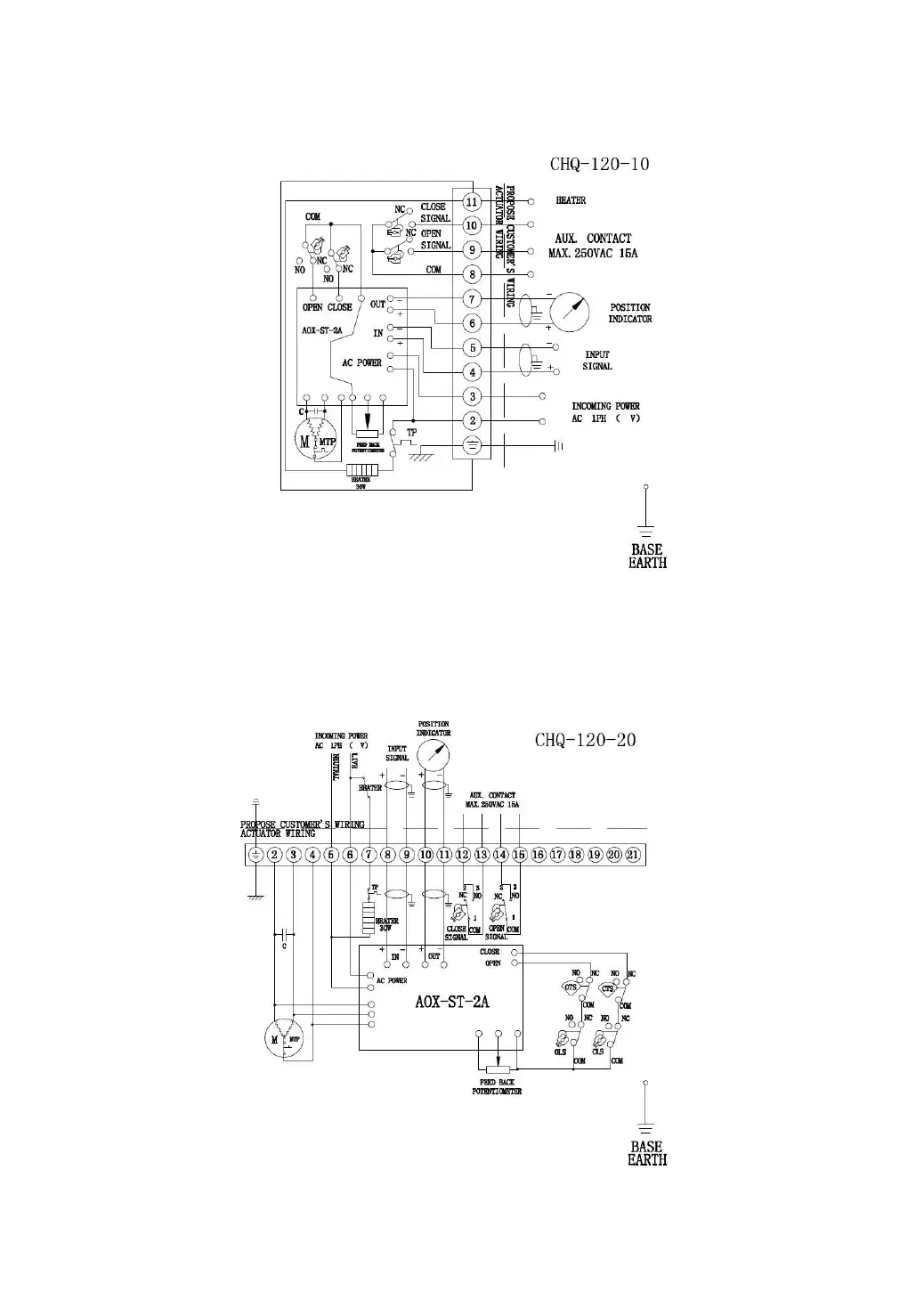

7.3 AOX-Q-005~010 110/220VAC/50/60Hz,1Ph (modulating model)
Picture 5
7.4 AOX-Q-015~600 110/220VAC/50/60Hz,1Ph (Standard modulating model)
Picture 6
