● Temperature may reach a high of 480°C when turned on.
- Do not use near flammable gases, paper and other materials.
- Do not touch heated parts, can cause severe burns.
- Do not touch metallic parts near the Tip.
● Handle with Care
- Never drop or sharply jolt the unit.
- Contains delicate parts that may break if unit is dropped.
● Disconnect plug when not to be used for a long period of time.
- Turn off power during breaks.
● Use only genuine replacement parts.
- Turn-off power and let unit cool before replacing parts.
● Soldering process produces smoke, make sure work area is well
ventilated.
● Do not modify unit
● Never touch the element or tip of the soldering iron. They are very hot
(about 400°C) and will give you a nasty burn.
● Take great care to avoid touching the mains flex with the tip of the
iron. The iron should have a heatproof flex for extra protection. An
ordinary plastic flex will melt immediately if touched by a hot iron and
there is a serious risk of burns and electric shock.
● Always return the soldering iron to its stand when not in use.
● Work in a well-ventilated area. The smoke formed as you melt solder
is mostly from the flux and is quite irritating. Avoid breathing it by
keeping your head on the side and not directly above of your work.
● Wash your hands after using solder. Solder may contain lead which is
a poisonous metal.
CAUTION: Misuse may cause injury and physical damage.
For your own safety, be sure to comply with the following precaution.
CARE and SAFETY PRECAUTIONS
21
Main Station
#
Part Number Description
1 3002290005
Case Cover
2 2005143X8
3x8 Screw
PCB936A
936A PCB
PCB936
936 PCB
4 3004290030
Face Plate
5 20051009
M9 Medium
6 20051309
M9 Nut
7 3005936
Knob
8 30090301
Rubber Stop
9 10090405
Fuse Holder
with Fuse
10 2005154x60
4x60 Screw
3
#
Part Number Description
11
10039.220V
936A transformer 220V
10039.110V
936A transformer
110V
10037.220V
936 transformer
220V
10037.110V
936 transformer
110V
12 960101.1
Receptacle Nut
13 3002290006
Case Bottom
14 2005154x12
4x12 Screw
15 960101
Receptacle Holder
16 101020201
Power Switch

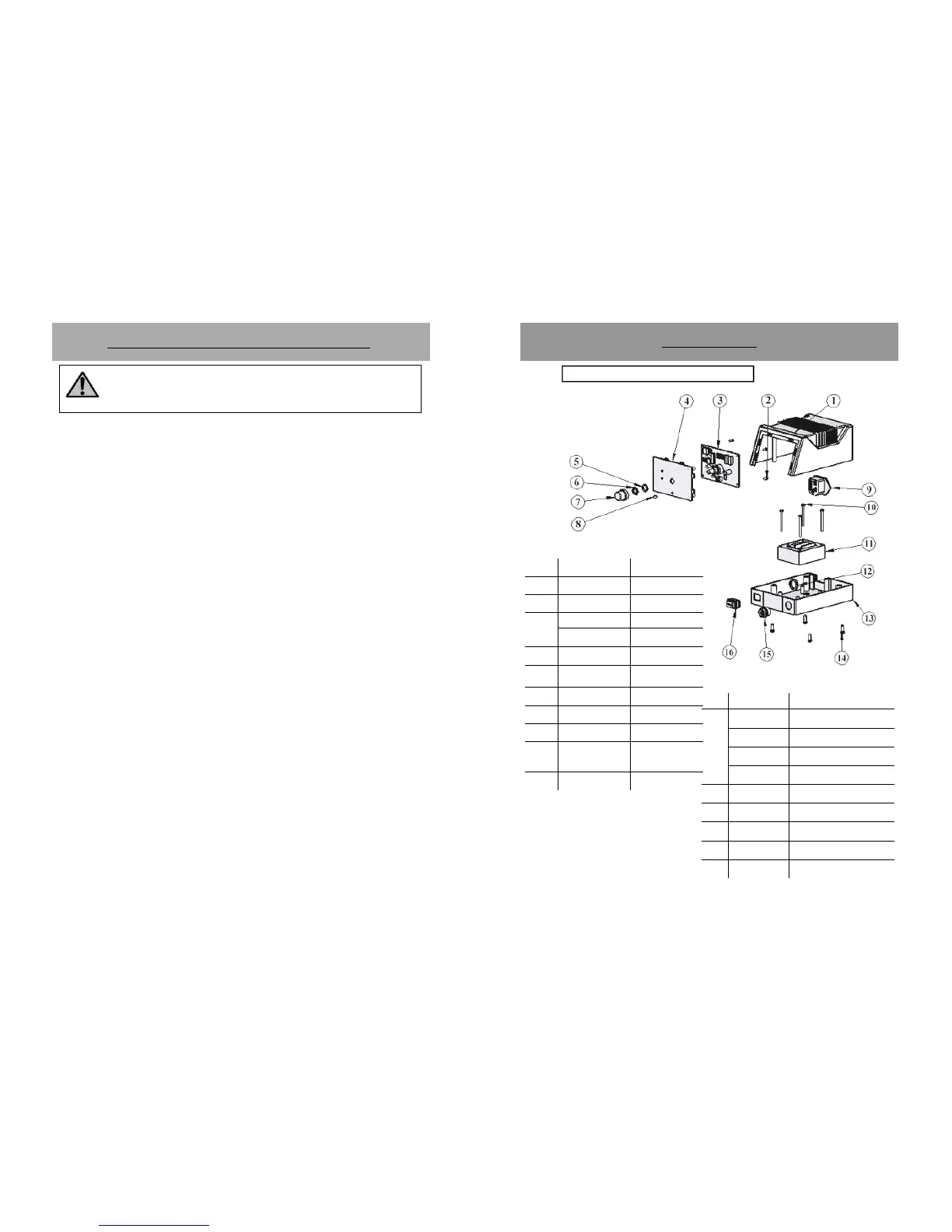

PARTS LIST
