IMPORTANT
After each eBike assembly check the brakes functionality and make sure all thread connections
are fastened properly.

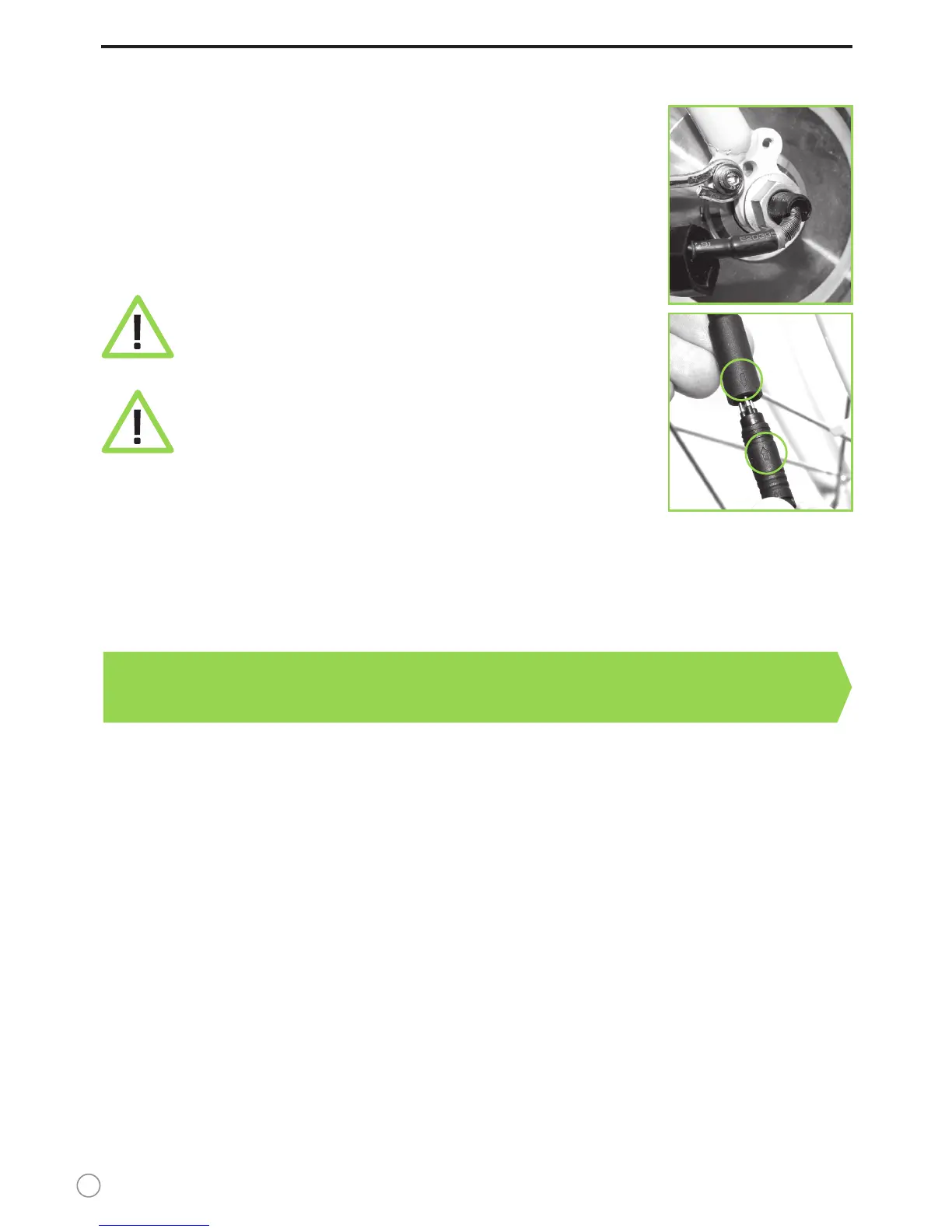

Assembly and disassembly front or rear wheel with motor
Due to the need of transport or service there may be a situation that you might
need to dismantle front or rear wheel with motor. At first disconnect the motor
connector that is approximately 20 cm away from the motor axle. Then release
the V-brake (if applied), change the gear to the smallest sprocket (applies to the
rear motors), use spanner no. 18 to release the motor axle nut and remove the
wheel from the dropouts. For reassembly proceed in the reverse order.
During the wheel assembly with the front or rear motor pay
attention to correct position of the motor axle by moving
downwards. The cable must lead to the motor from underneath.
Otherwise water may get into motor and damage it.
During the connector assembly make sure the bolded arrows
on both connector parts are pointing towards each other.
Connect the connector with sufficient force. Insufficient
inserting may cause the lack of motor function or the connector
damage.
ASSEMBLY AND SETTING UP EBIKE
Installation of brake disc
For brake disc installation use only original screws from motor (M5x8). Inner parts of motor will be blocked in
case of using longer screws than 8mm.
16
