APART PIR7600 - IR and Remote Control Systems; IR Receiver and Extender; Wired Remote Control; Power and Muting Features

REMOTE CONTROLLED PRE-AMPLIFIER
SLIMLINESLIMLINESLIMLINESLIMLINE
REMOTE CONTROLLED PRE-AMPLIFIER
IRIR
IR-LED
CD-PLAYER
TUNER
DVD
.....
IR - EYE
RECEIVER
OTHER
IR-REMOTE
CONTROL
PIR-7600
IR-REMOTE
CONTROL

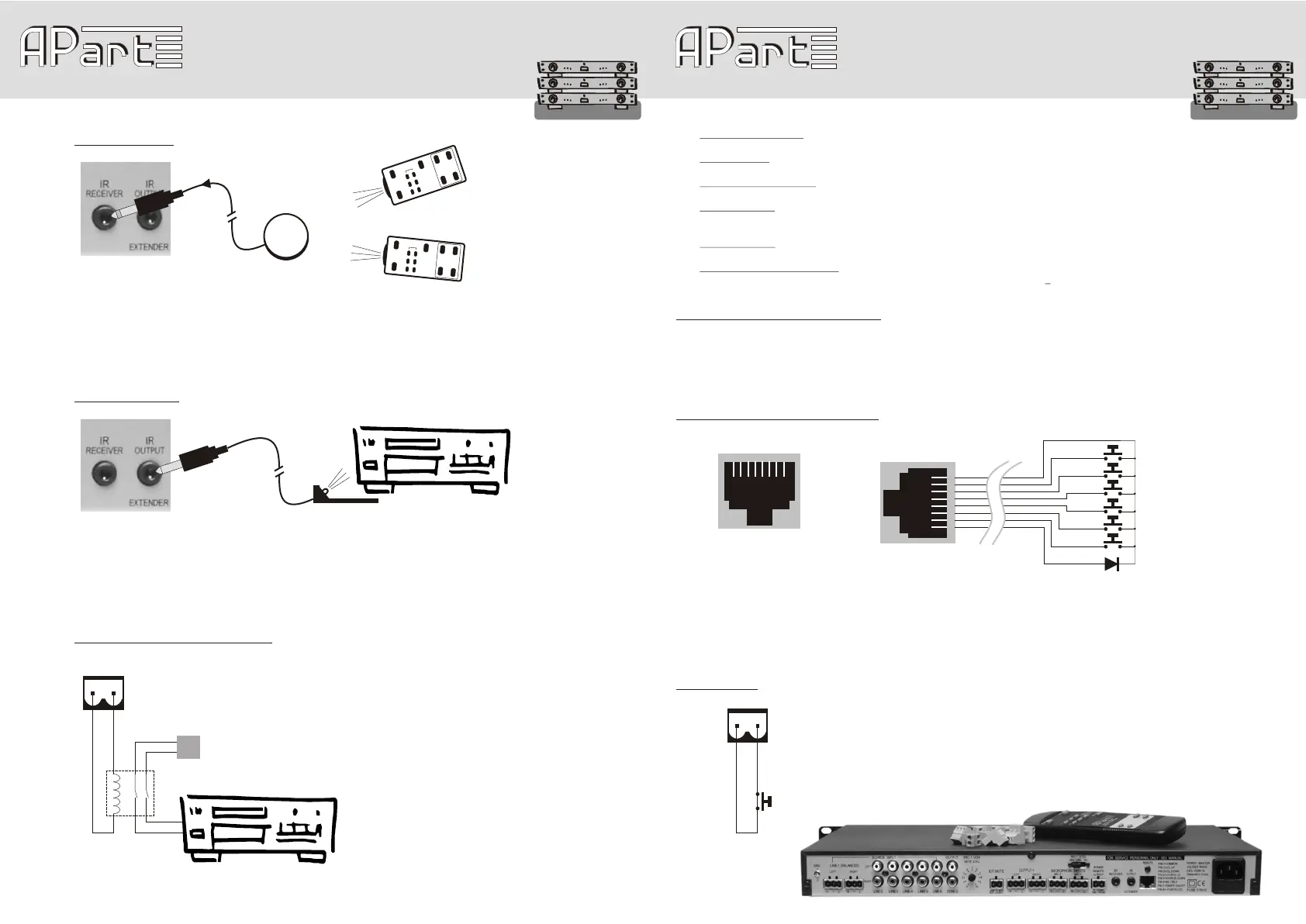

IR RECEIVER
The external IR receiver send’s all (PIR7600 or other Rc’s) received IR codes to the PIR7600.
The PIR7600 copy’s the IR signals to the IR output.
All IR signals (system or foreign) can be extended with the PIR7600.
IR EXTENDER
Connect the IR-receiver to the IR output on the PIR7600.
Make shure the IR emitter and the IR receiver (of the ...) have eye contact with each other.
POWER REMOTE OUTPUT
GND +12Volt
12 Volt / 50mA output to switch ON other appliances.
To switch larger currents & voltages it’s recommended to connect a 12V relay
to this terminal.
This way you can switch on/off all of your appliances at ones.
MAIN
12 Volt
Relay
20 Microphone inputs
Balanced microphone inputs, the same inputs as on the front panel (2)
21. MIC1 level
The level of the microphone 1 input (21 or 2) can be switched to Line or Telephone signal strenght.
22.Power remote output
When the PIR7600 is switched on there is 12 volt present on this connector.
23. IR Receiver
Mini jack input for connecting the supplied external IR receiver.
This receiver copy’s all the received IR signals to the IR extender output.
24. IR Extender
Mini jack output for connecting the supplied external IR emmiter.
25. Remote RJ-45 connector
RJ-45 connector for controlling the PIR-7600 with a wired remote control.
WIRED REMOTE CONTROL
1 8.........
1 : COMMON
2 : VOLUME UP
3 : VOLUME DOWN
4 : SOURCE UP
5 : SOURCE DOWN
6 : MIC ONLY
7 : POWER ON / OFF
8 : + POWER LED
1
2
3
4
5
6
7
8
COMMON
VOLUME UP
VOLUME DOWN
SOURCE UP
SOURCE DOWN
MIC ONLY
POWER ON/OFF
POWER LED
The inputs of the PIR7600 wired remote control
are opto-isolated and low impedant.
Therefore you can put more then 1000 metres
of wire between the remote and the PIR7600.
EXT. MUTE
External MUTE contact.
When you short this contact source input 2-6 are being muted.
How much the signal is muted can be controlled by the MIC-1 VOX level.
PHANTOM POWER SUPPLY
You can apply Phantom power supply to microphone input 1 & 2.
To enable the Phantom power you have to set Jumper JP2 (MIC2) , JP1 (MIC1)
These jumpers are located inside the unit, on the pcb of the frontpanel.
36
