Apator Powogaz JS - Installation Positions

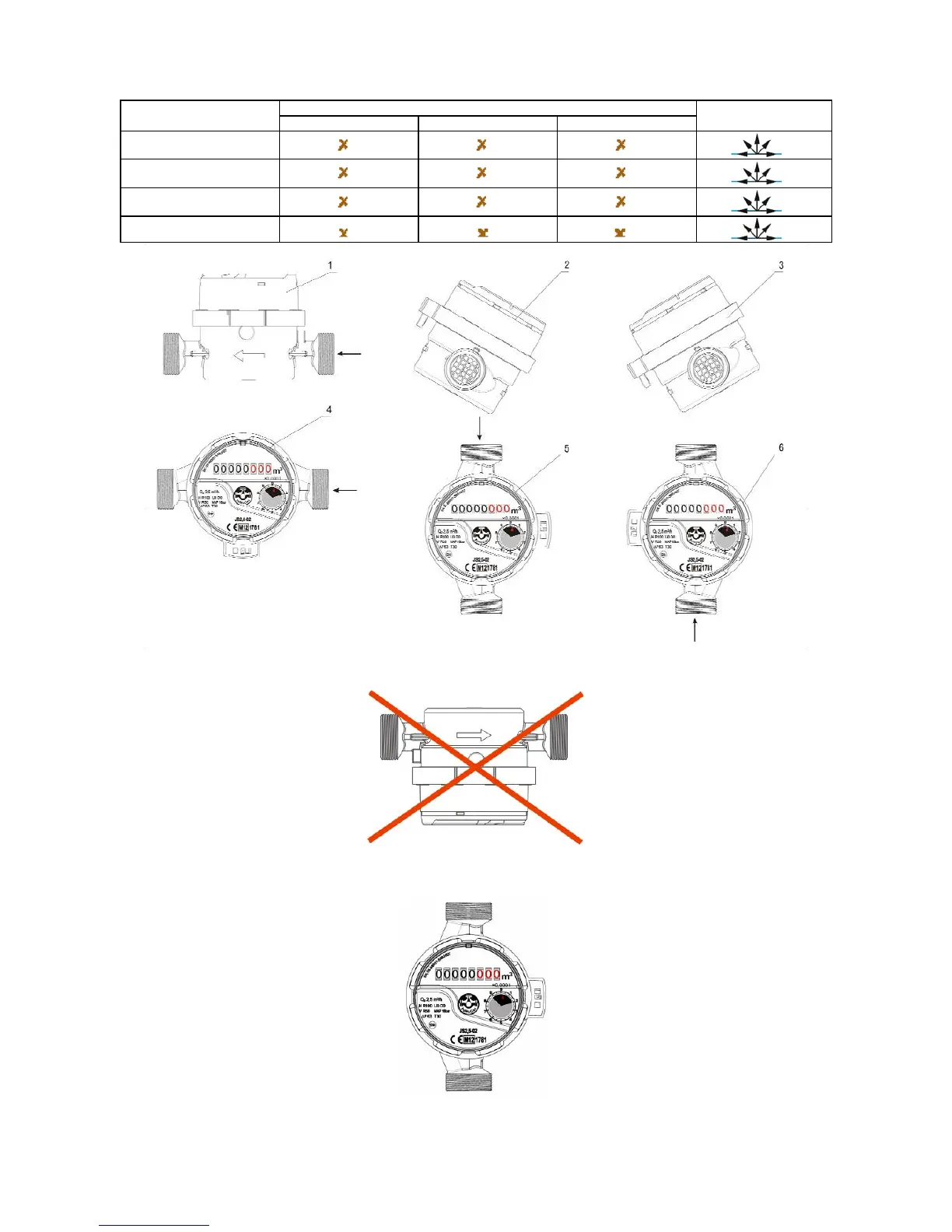

Table 2 – Installation positions
Installation orientation
Water meter type
Horizontal Vertical Diagonal
Counter location
JS; JS-NK; JS-NKP;
(DN15÷40)
JM;
(DN15÷20)
JS90; JS90-NK; JS90-NKP;
(DN15÷20)
JS130; JS130-NK; JS130-NKP;
(DN25÷40)
Fig. 1 Sample permitted installation positions of Apator Powogaz water meters, type JS (DN 15-40).
Fig. 2 Forbidden ways of mounting the watermeters produced by APATOR POWOGAZ;
Fig. 3 Recommended position of the counting mechanism while vertical montage;
1 -horizontal orientation (class C; R160 or B; R100 - H)
2, 3 - diagonal orientation (class A; R40 to 63 - V)
4,5,6 - vertical orientation (class A; R40 to R63 - V)
