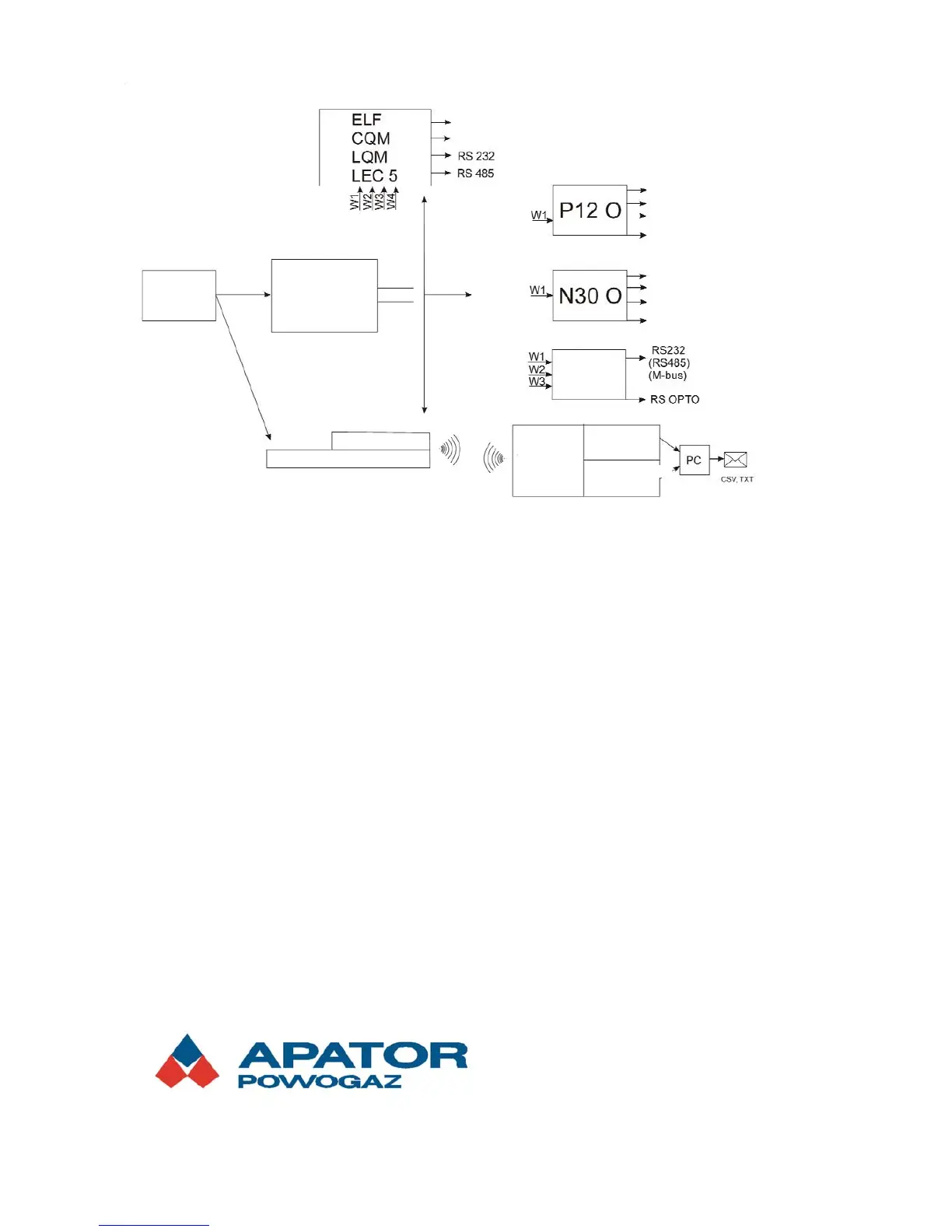

Fig. 5 Example connection scheme for remote transfer of readings
12.2. Other pulse values than in the basic design (factory) may be ordered as well for the reed switch
transmitter, according to specification sheets. In case of such order, pulse values will be according to
the client requirements specified in the order.
12.3. Extension of transmitter cable
In order to extend the standard transmitter cable, use a cable with a single conductor diameter of at
least. 0.75 mm
2
taking into account the recommendation, that the total impedance of the extended
section should not be higher than 500 Ohm. See to it that the extended cable does not cross with the
existing layout of power supply or automatic control cables
Warning: Use possibly the shortest extensions.
13. What to do with used product packages
The package is made of recyclable corrugated board. You can dispose of it in every waste paper
purchase point. Additional information regarding the re-cycling of particular materials which the water
meters are built of as well as proper disposal methods can be obtained in relevant company
departments.
14. User's evaluation
The operating instructions are constantly updated. You can help us optimize the operating instruction to
better suit the users' needs by sending us your suggestions. Please, send all the remarks regarding the
operating instruction as well as the use of water meters to the manufacturer's address.
WARNING!!!
Within the range of the technological progress, the manufacturer reserves the right to introduce
changes to the manufactured products without marking them in the operating instruction as long as the
main features of the product are preserved. We send a spare parts catalogue upon the client's request.
Heat meter counter
(battery powered)
RF module
M-Bus module
Pulse
transducer
Reed
switch
