Automatic Transfer Switch Installation and Quick Start4

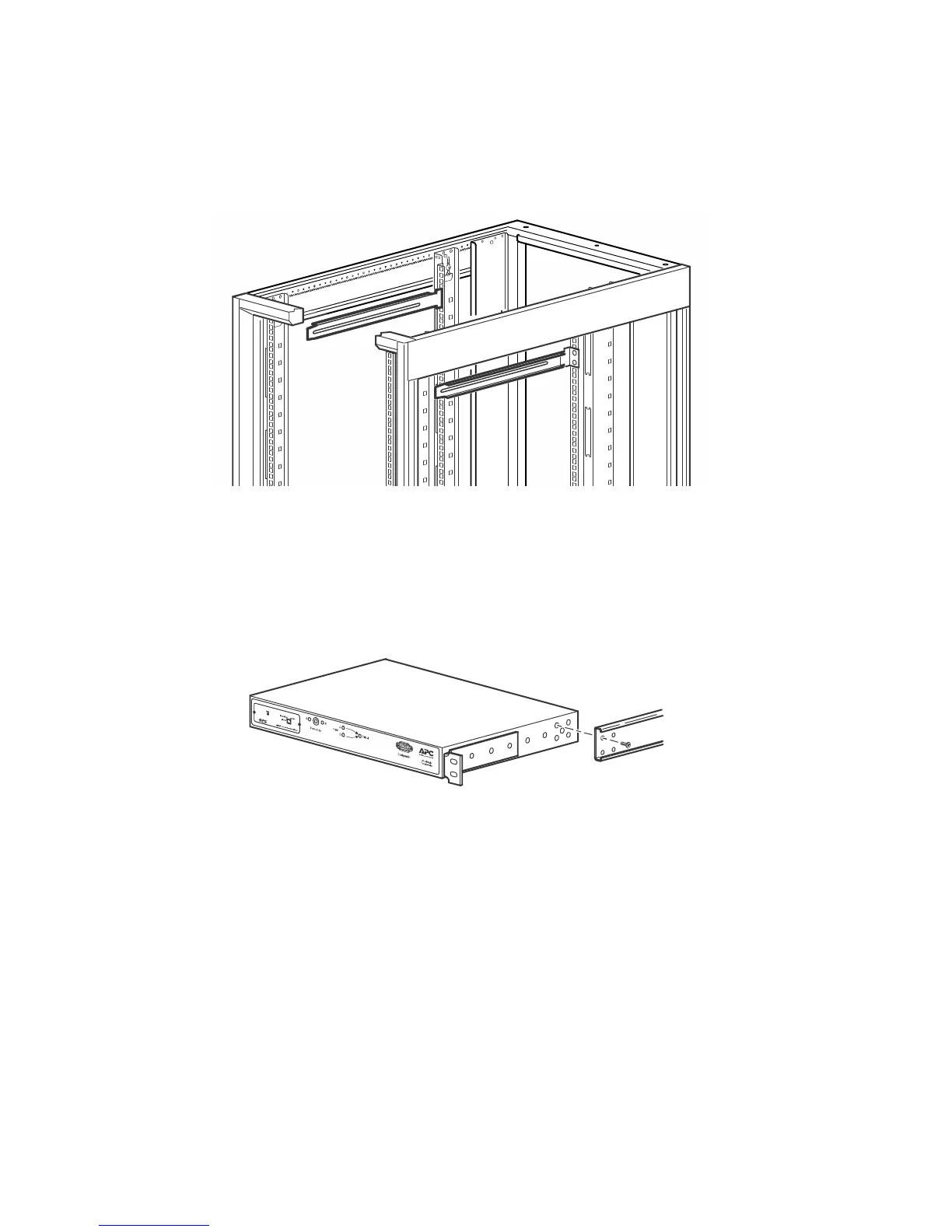

Attach rear segments to the rack

1. Insert cage nuts (provided with your enclosure) on the rear vertical mounting rails at your chosen

location.

2. Align the rear segments of the adjustable bracket with the cage nuts you inserted in step 1.

3. Insert and tighten mounting screws (provided).

Attach front segments to the switch

1. Align the front segments of the adjustable bracket with the four corresponding holes on the sides

of the switch.

2. Attach both front segments to the switch using two Phillips pan-head screws (provided) for each

bracket segment.
