Apec Water WTS-MAX User Manual

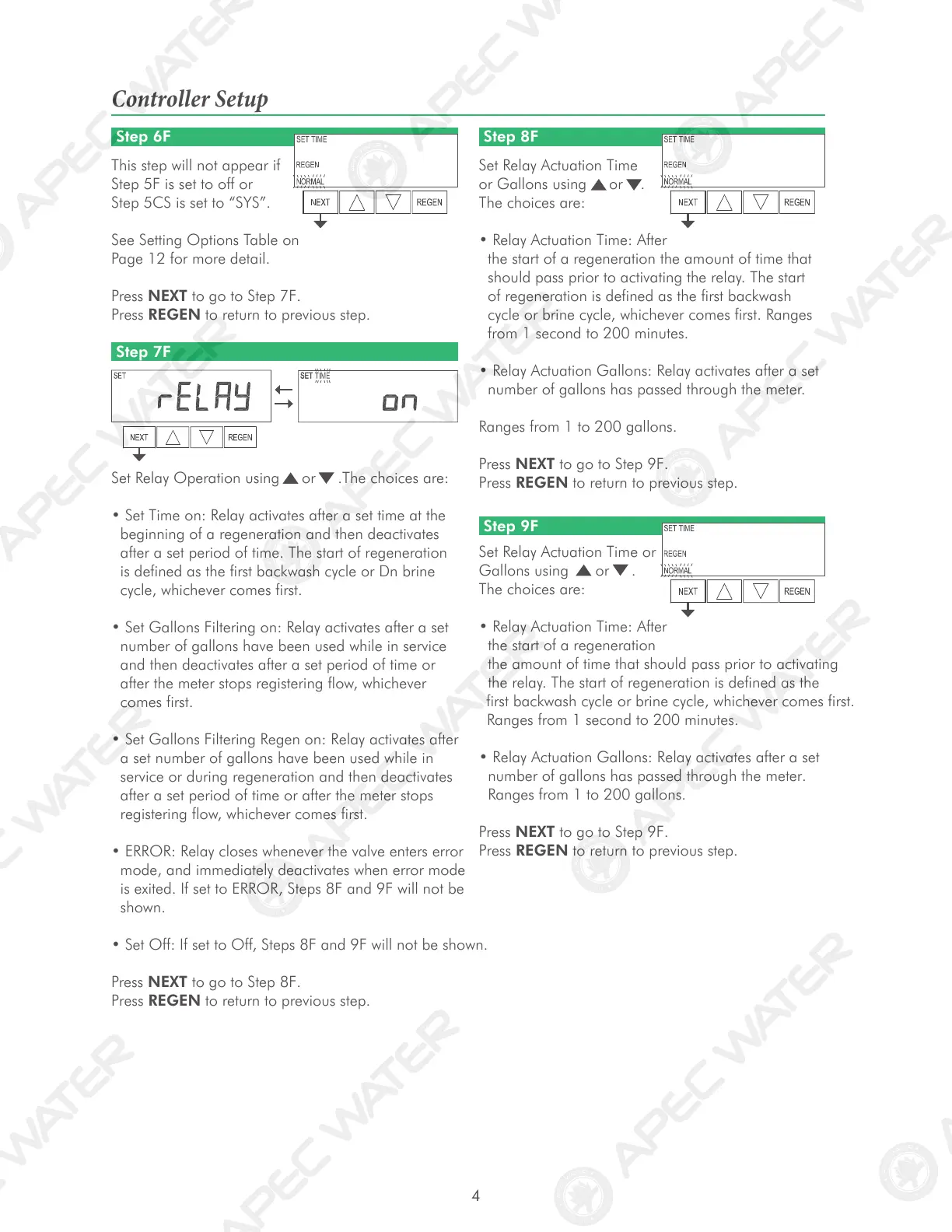

Controller Setup
Step 6F
Step 7F
Step 8F
Step 9F
This step will not appear if
Step 5F is set to off or
Step 5CS is set to “SYS”.
See Setting Options Table on
Page 12 for more detail.
Press NEXT to go to Step 7F.
Press REGEN to return to previous step.
Set Relay Operation using or .The choices are:
• Set Time on: Relay activates after a set time at the
beginning of a regeneration and then deactivates
after a set period of time. The start of regeneration
is defined as the first backwash cycle or Dn brine
cycle, whichever comes first.
• Set Gallons Filtering on: Relay activates after a set
number of gallons have been used while in service
and then deactivates after a set period of time or
after the meter stops registering flow, whichever
comes first.
• Set Gallons Filtering Regen on: Relay activates after
a set number of gallons have been used while in
service or during regeneration and then deactivates
after a set period of time or after the meter stops
registering flow, whichever comes first.
• ERROR: Relay closes whenever the valve enters error
mode, and immediately deactivates when error mode
is exited. If set to ERROR, Steps 8F and 9F will not be
shown.
• Set Off: If set to Off, Steps 8F and 9F will not be shown.
Press NEXT to go to Step 8F.
Press REGEN to return to previous step.
Set Relay Actuation Time
or Gallons using or .
The choices are:
• Relay Actuation Time: After
the start of a regeneration the amount of time that
should pass prior to activating the relay. The start
of regeneration is defined as the first backwash
cycle or brine cycle, whichever comes first. Ranges
from 1 second to 200 minutes.
• Relay Actuation Gallons: Relay activates after a set
number of gallons has passed through the meter.
Ranges from 1 to 200 gallons.
Press NEXT to go to Step 9F.
Press REGEN to return to previous step.
Set Relay Actuation Time or
Gallons using or .
The choices are:
• Relay Actuation Time: After
the start of a regeneration
the amount of time that should pass prior to activating
the relay. The start of regeneration is defined as the
first backwash cycle or brine cycle, whichever comes first.
Ranges from 1 second to 200 minutes.
• Relay Actuation Gallons: Relay activates after a set
number of gallons has passed through the meter.
Ranges from 1 to 200 gallons.
Press NEXT to go to Step 9F.
Press REGEN to return to previous step.
