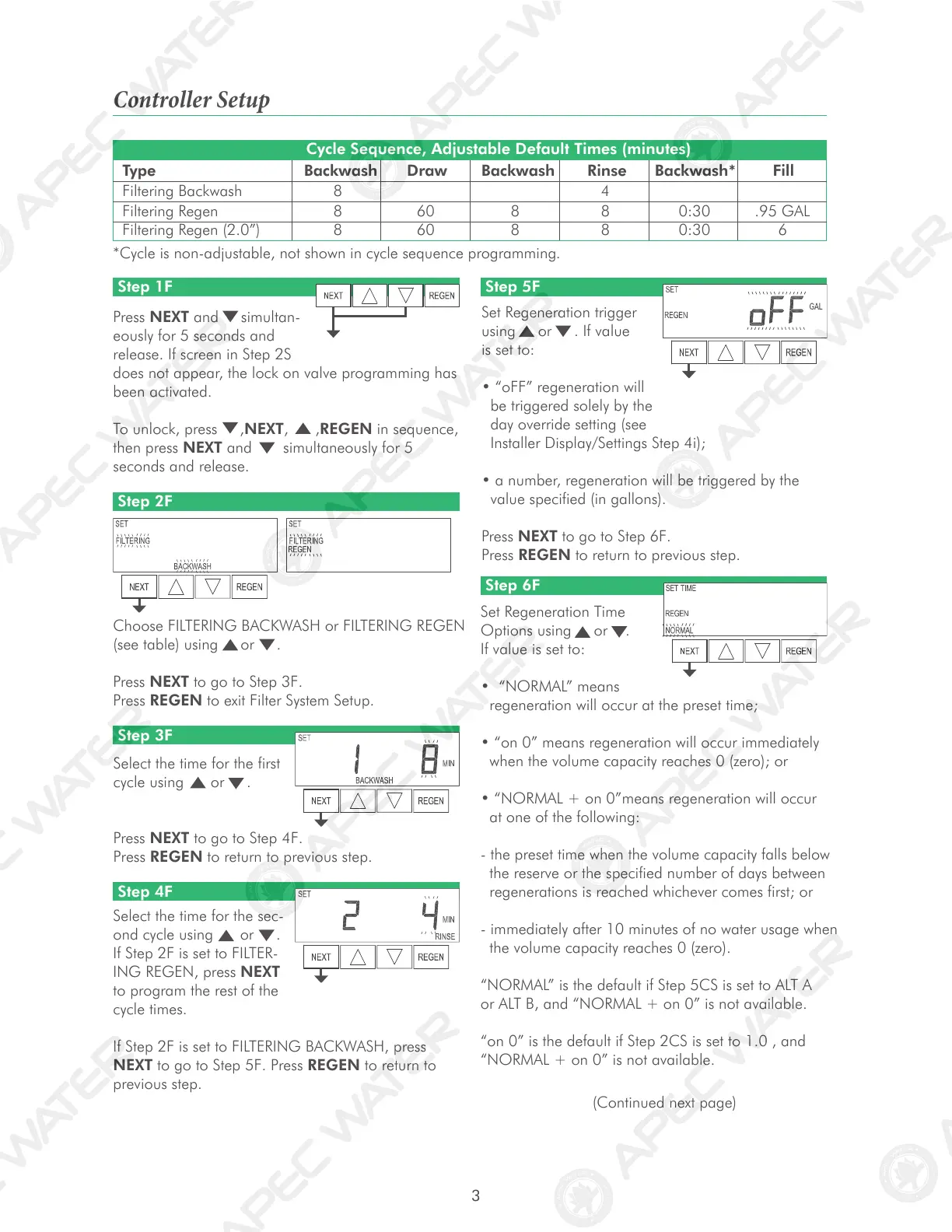

Controller Setup
Step 1F
Step 2F
Step 3F
Step 5F
Step 6F
Step 4F
(Continued next page)
Cycle Sequence, Adjustable Default Times (minutes)
Type Backwash Draw Backwash Rinse Backwash* Fill
Filtering Backwash 8 4
Filtering Regen 8 60 8 8 0:30 .95 GAL
Filtering Regen (2.0”)
8
60
8
8
0:30
6
*Cycle is non-adjustable, not shown in cycle sequence programming.
Press NEXT and simultan-
eously for 5 seconds and
release. If screen in Step 2S
does not appear, the lock on valve programming has
been activated.
To unlock, press ,NEXT, ,REGEN in sequence,
then press NEXT and simultaneously for 5
seconds and release.
Choose FILTERING BACKWASH or FILTERING REGEN
(see table) using or .
Press NEXT to go to Step 3F.
Press REGEN to exit Filter System Setup.
Select the time for the first
cycle using or .
Press NEXT to go to Step 4F.
Press REGEN to return to previous step.
Select the time for the sec-
ond cycle using or .
If Step 2F is set to FILTER-
ING REGEN, press NEXT
to program the rest of the
cycle times.
If Step 2F is set to FILTERING BACKWASH, press
NEXT to go to Step 5F. Press REGEN to return to
previous step.
Set Regeneration trigger
using or . If value
is set to:
• “oFF” regeneration will
be triggered solely by the
day override setting (see
Installer Display/Settings Step 4i);
• a number, regeneration will be triggered by the
value specified (in gallons).
Press NEXT to go to Step 6F.
Press REGEN to return to previous step.
Set Regeneration Time
Options using or .
If value is set to:
• “NORMAL” means
regeneration will occur at the preset time;
• “on 0” means regeneration will occur immediately
when the volume capacity reaches 0 (zero); or
• “NORMAL + on 0”means regeneration will occur
at one of the following:
- the preset time when the volume capacity falls below
the reserve or the specified number of days between
regenerations is reached whichever comes first; or
- immediately after 10 minutes of no water usage when
the volume capacity reaches 0 (zero).
“NORMAL” is the default if Step 5CS is set to ALT A
or ALT B, and “NORMAL + on 0” is not available.
“on 0” is the default if Step 2CS is set to 1.0 , and
“NORMAL + on 0” is not available.
