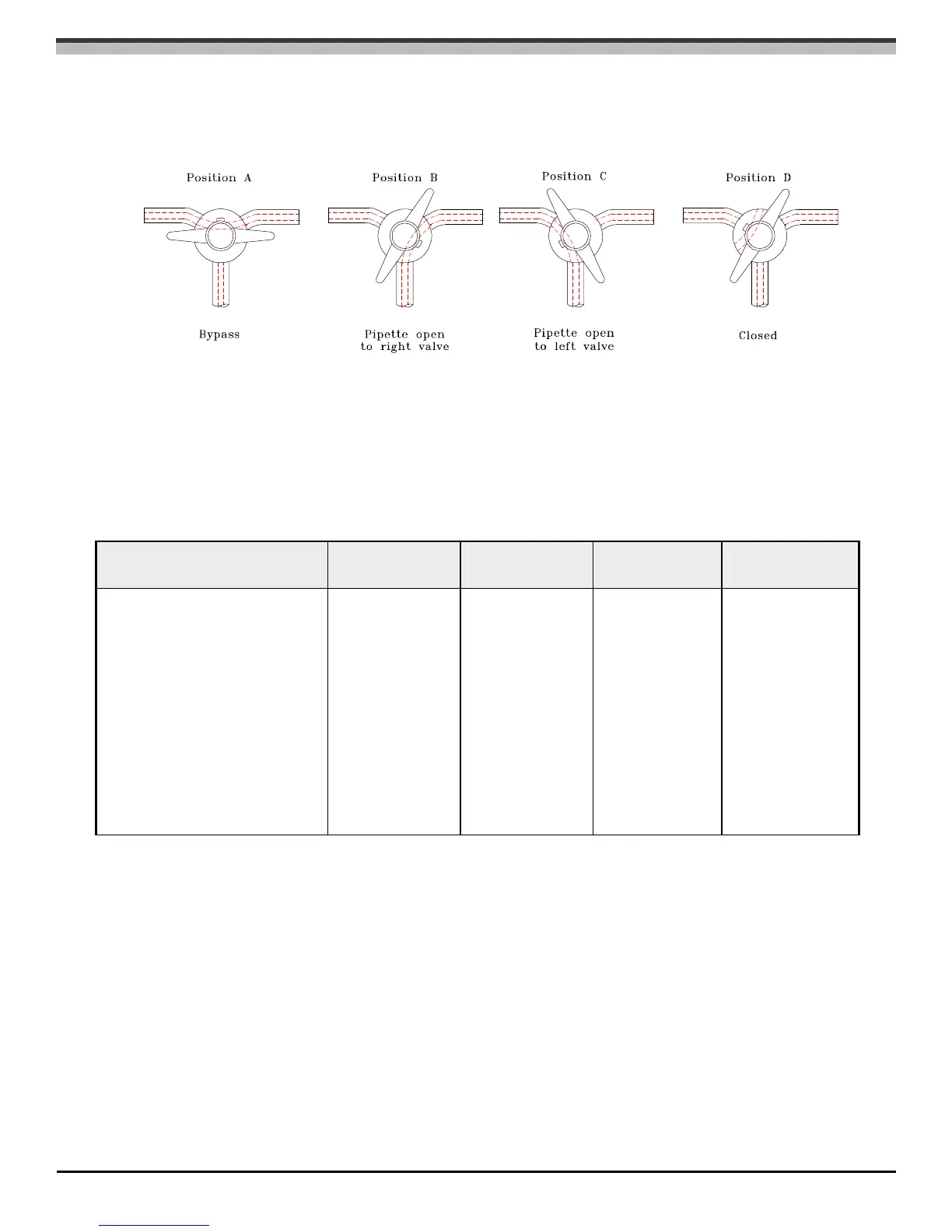

Figure 6 VSC-33 Valve Position Schematic
Table 2 VSC-33 Valve Positions
(refer to Figure 6)
Analytical Step Burette Valve
Position
CO
2
Pipette
Valve Position
O
2
Pipette
Valve Position
CO Pipette
Valve Position
Initial leak check A A A A
Connect bag to analyzer C A A A
Purge analyzer with sample B A A A
Load sample into analyzer C A A D
Stabilize Sample C A A D
CO
2
absorption passes B C A D
O
2
absorption passes B A C D
CO absorption passes B A A C
Flushing of Manifold A A A A
