API 600 - MOUNTING TO 7.25 - 8.25 PEDESTALS; Mounting to your pedestal; MOUNTING TO 8.25 - 12 PEDESTALS

292930
HEATED 20” BIRD BATH
Item # 600
Miller Manufacturing, Glencoe, MN 55336 USA • www.miller-mfg.com
Mounting to your pedestal
1. Assemble bracket following exploded diagram.
2. Screw the set screws (part #G) at least 1” into the mount.
3. Place the mount on the center of the pedestal and center the mount so
the center bolt (part #N) is directly in the center of the pedestal.
4. Loosen the three screws (part # I) holding the arms (part #A) in place.
Then open or close the arms so that the mount conforms to the sides
of your pedestal (i.e. so the points of the set screws (part #G) are against
the sides of your pedestal).
5. Make sure the center bolt (part #N) is still positioned in the center of
your pedestal. (If the center bolt is misaligned with the center of your
pedestal – reposition the mount and repeat step #3 again).
6. T
ighten the three arms as tight as possible. You must use a wrench and
screwdriver on the three screws (part #I) holding the arms in place.
Mounting to your pedestal
1. Assemble bracket following exploded diagram found in section for
bird bath pedestal between 7.25” and 8.25” except substitute small set
screws (part #F) in place of large set screws (part #G).
2. Back the three set screws (part #F) out of arms (part #A) as far as
possible.
3. Place the mount on the center of the pedestal and center the mount so
the center bolt (part #N) is directly in the center of the pedestal.
4. Loosen the three screws (part #I) holding the arms (part #A) in place.
Then open or close the arms so that the mount conforms to the sides of
your pedestal (i.e. so the arms are “hugging” the sides of your pedestal
and are as close as they can possibly go).
5. Make sure the center bolt (part #N) is still positioned in the center of
your pedestal. If the center bolt is misaligned with the center of your
pedestal – reposition the mount and repeat step #3 again.
7. Check to be sure the arms (part #A) are all at the same level.
8. Use a screwdriver to tighten the three set screws (part #G). Do not over
tighten these screws because this will bend the arms of the mount.
Just tighten each one enough to dig slightly into the surface (if your
pedestal is plastic, the set screws will probably not dig into the surface
but will bend the surface which will be sufficient).
9. Place the bath on the center screw and rotate the bath clockwise until
tight against the arms of the mount.
10. If your bath sits crooked, you may remove the bath by rotating
counterclockwise. Then loosen the proper set screw (part #G) and
adjust the mount by moving the corresponding arm upward. Re-
tighten the set screw before placing your bath back on the mount.
6.
Tighten the three arms as tight as possible. You must use a wrench and
screwdriver on the three screws (part #I) holding the arms in place.
7. Check to be sure the arms (part #A) are all at the same level.
8. Use a screwdriver to tighten the three set screws (part #F). Do not over
tighten these screws because this will bend the arms of the mount.
Just tighten each one enough to dig
slightly into the surface (if your
pedestal is plastic, the set screws will probably not dig into the surface
but will bend the surface which will be sufficient).
9. Place the bath on the center screw and rotate the bath clockwise until
tight against the arms of the mount.
10. If your bath sits crooked, you may remove the bath by rotating
counterclockwise. Then loosen the proper set screw (part #F) and adjust
the mount by moving the corresponding arm upward. Re-tighten the
set screw before placing your bath back on the mount.
IF THE DIAMETER OF THE TOP OF YOUR BIRD BATH PEDESTAL IS BETWEEN 7.25” AND 8.25”
IF THE DIAMETER OF THE TOP OF YOUR BIRD BATH PEDESTAL IS BETWEEN 8.25” AND 12”
If this nut does not fit flush and tight with the round disc
(part #C), then you should add 2 washers between the
round disc and the nut.

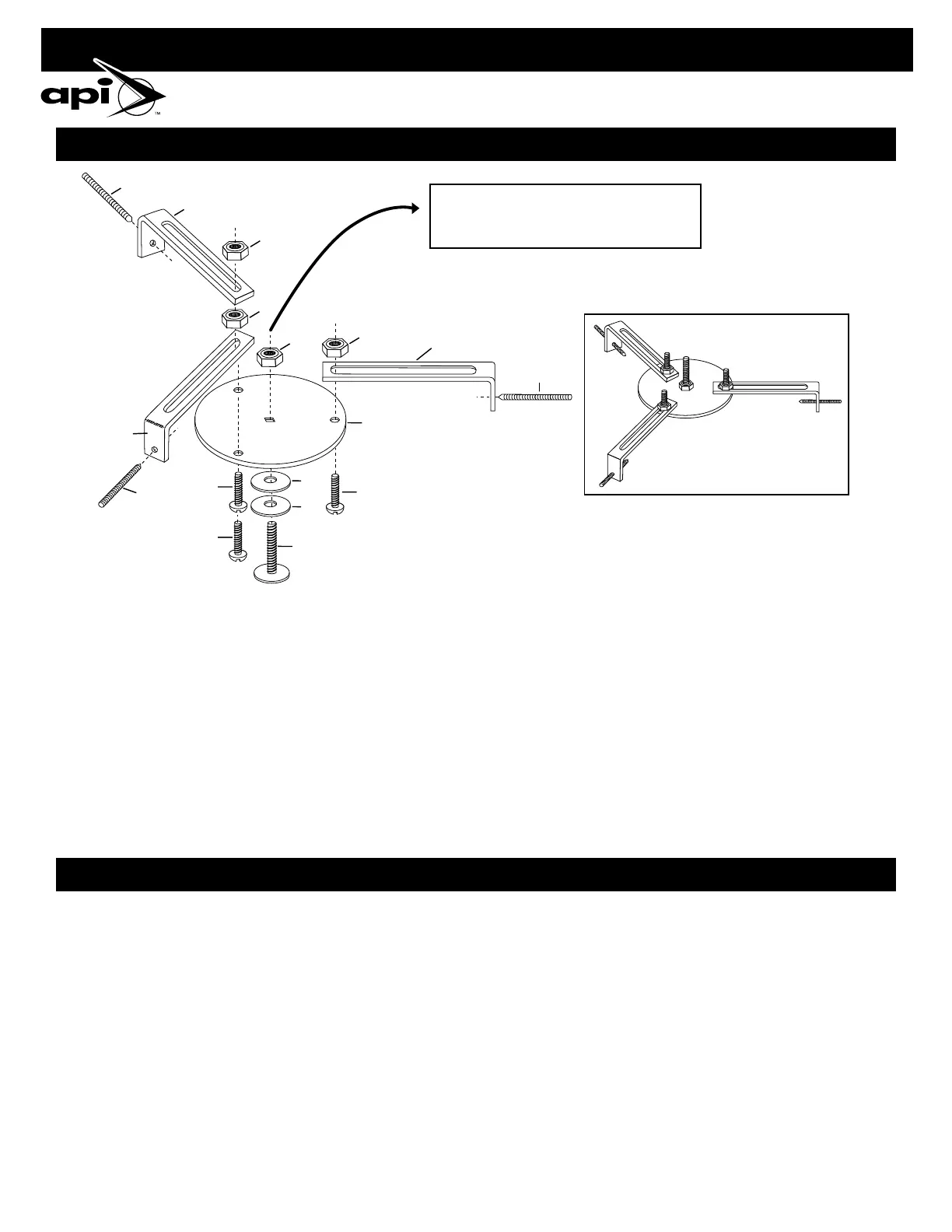

(Exploded Diagram)
L
L
L
E
I
I
I
G
G
G
C
K
K
N
A
A
A
(Finished Diagram)
