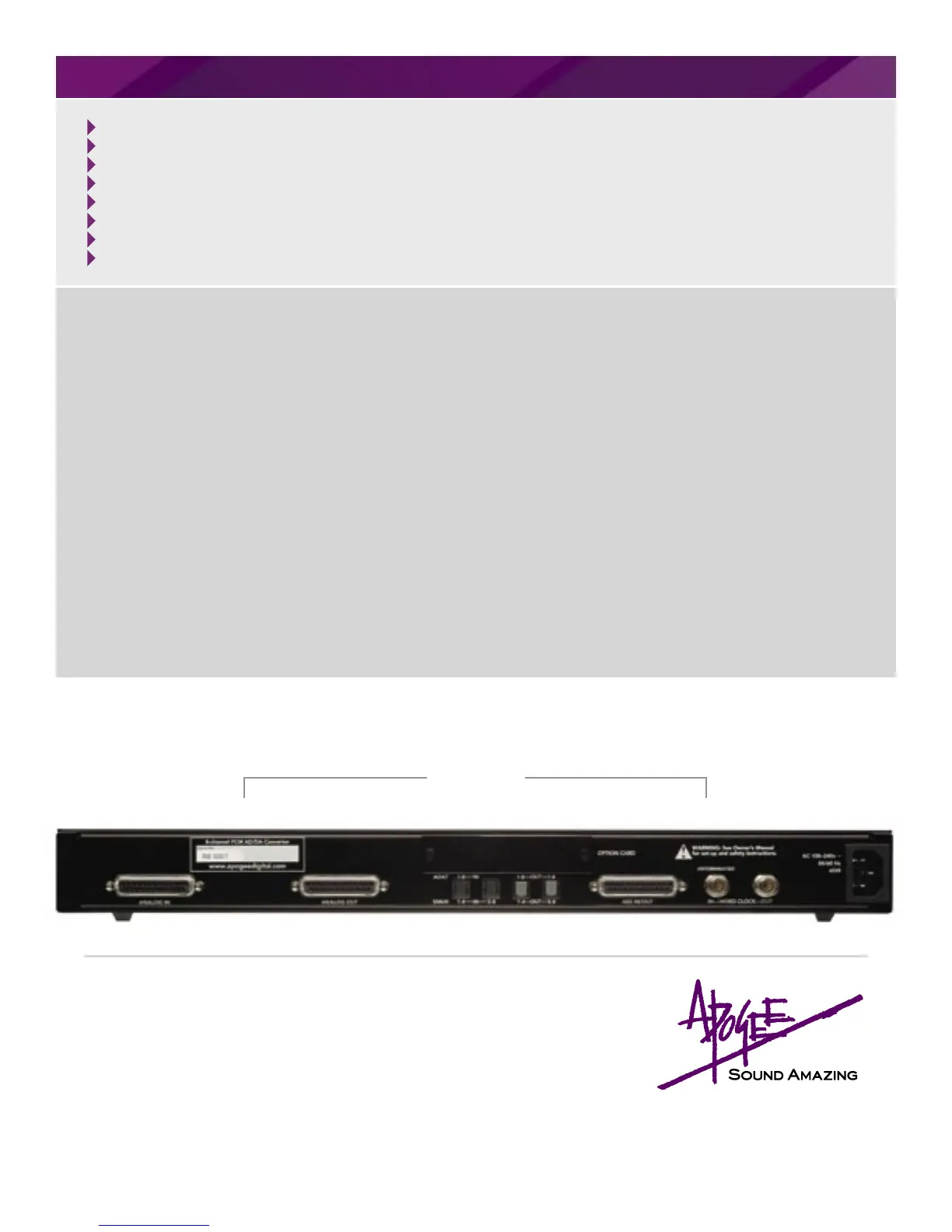

Rear Panel
ROSETTA 800 Features & Specifications
8 channels of premium 24-bit AD/DA conversion
Sample rates up to 96kHz with optional 192kHz upgrade
8 channels of AES, ADAT I/O
Optional FireWire expansion card for compatibility with OS X, and Windows XP (X-FireWire card)
Optional expansion card for direct connection to Pro Tools HD (X-HD card)
Optional expansion card for direct connection to Pro Tools Mix (X-Digi-Mix card)
“Soft Limit” for maximum digital level without overs
“UV22HR” for superior dither of high-resolution digital signal to 16 bits for the Internet and CD mastering
For more info: 310 915.1000
www.apogeedigital.com/rosetta800
Due to on-going development Apogee reserves the right to change all information and specifications without notice.
APOGEE DIGITAL • Santa Monica, CA • www.apogeedigital.com • 310 915.1000
© 2004 Apogee Electronics Corporation. All trademarks herein are property of their respective holders.
Doc: ROSETTA800_DS, APR/04 • PRINTED IN USA
Inputs:
• Analog In 1-8: Balanced, DSUB connector
• AES in: x 4, transformer balanced, DSUB connector
• Optical - ADAT/SMUX In: Toslink
• WC In: BNC 75 ohm
Outputs:
• Analog Out 1-8: Balanced, DSUB connector.
• AES Out: x 4, transformer balanced,DSUB connector
• Optical - ADAT/SMUX Out: Toslink
• WC Out: BNC 75 ohm
Specs:
• Sample rates: 44.1 - 48k, 88.2 - 96k (+/-10%); 176.4 - 192k (optional)
• Frequency response: 10 –20k (+/- 0.2 dB) at 44.1k
• Analog max levels: +6dBV, +20dBu, +24dBu max (set by internal jumper)
• Dynamic range: 114 dB A weighted (AD + DA)
• THD+N: -105 dB (AD), -103 dB (DA)
• Power: 90-250 VAC, 50-60Hz, 45Watt
