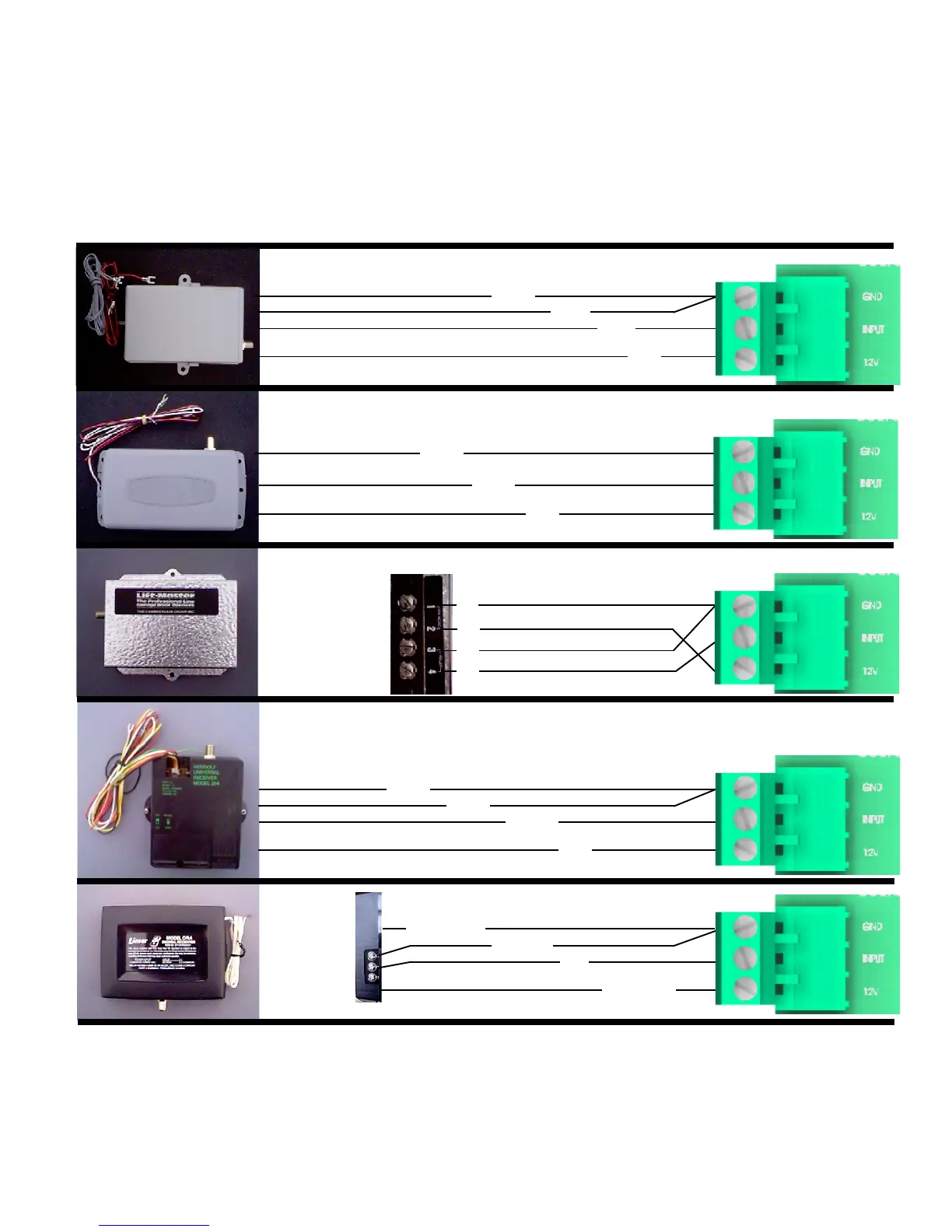

APOLLO Gate Operators RECEIVER OPTIONS
Do not confuse the receiver code switches with the red program switches on the gate control board.
Never set all code switches to the same position. Transmitters must match code switches for proper operation.
If power is taken directly from battery or connected as shown below, receiver should be configured for 12VDC
Multi-Code/Digi-Code
Allstar
Lift-Master*
black
gray
gray
red
white
black
red
4
3
2
1
Heddolf
Linear
black
yellow
red
white/silver
common
n/o
white/gold
white
* Lift-Master will require that the 12/24 jumper be set to 12 and the C/M (constant/momentary) jumper be set to C
