OPERATOR INSTALLATION

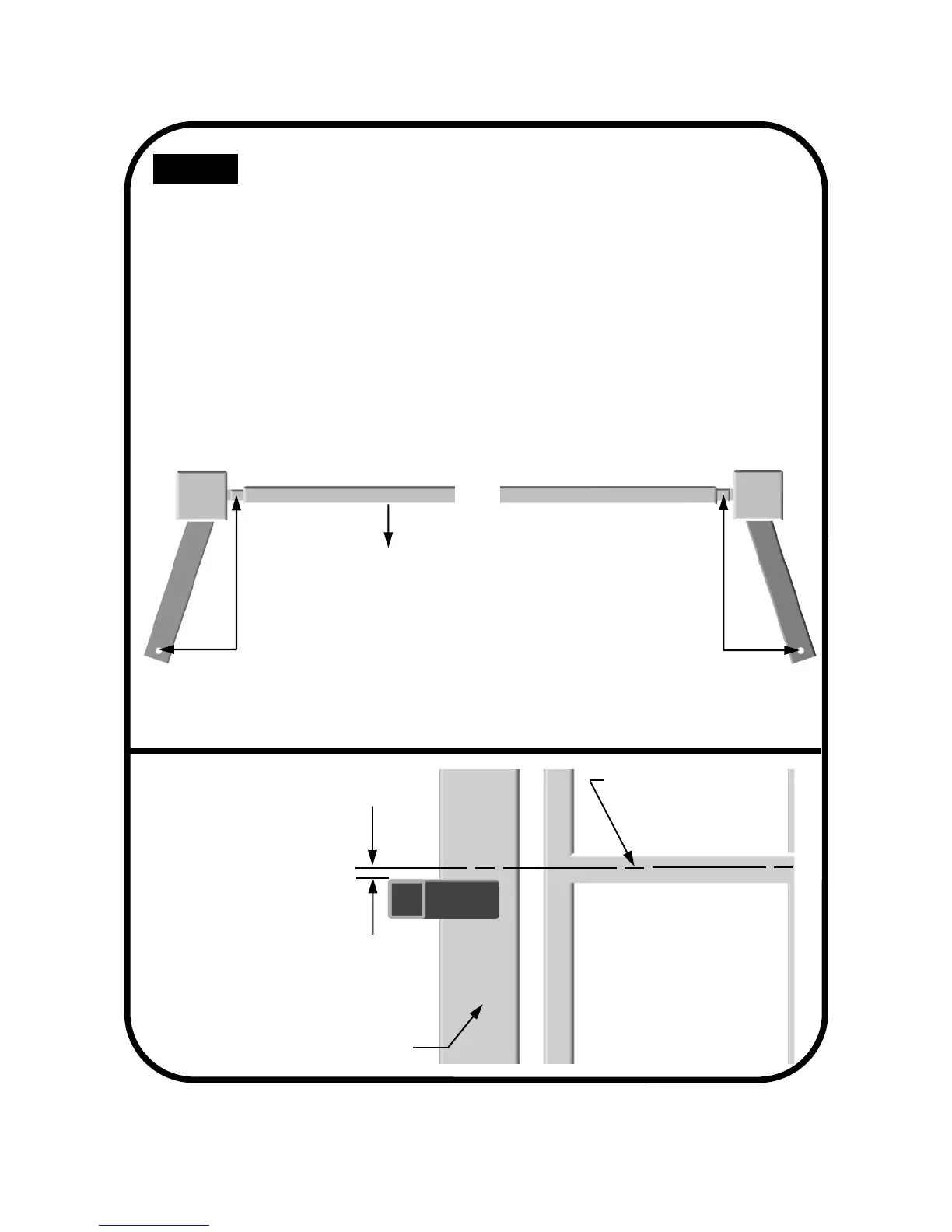

Location of Pivot Point.
1/2”
Center Line of attachment
point for gate bracket
Hinge post
Vertical position
of pivot arm
Measurements are taken from
the center of the hinge.
STEP 1
PIVOT ARM INSTALLATION (standard pull to open)
Front View
Pivot ArmMust be level
Notes:
PULL TO OPEN pulls gate open (actuator is extended when gate is in the closed position).
PUSH TO OPEN pushes the gate open (actuator is retracted when gate is in the closed
position).
For PUSH TO OPEN installations see page 12.
If a 400 Upgrade Kit is to be used, refer to the 400 instructions for pivot point location.
The following instructions provide up to 105
o
of swing.
Gate (closed)
13”
6”
Direction of
opening
13”
6”
Left Hand Swing
Right Hand Swing
Top View
To Next Page
