Apollo 7100 - Chain & Chain Bolt Installation

CHAIN & CHAIN BOLT INSTALLATION
STEP 1.

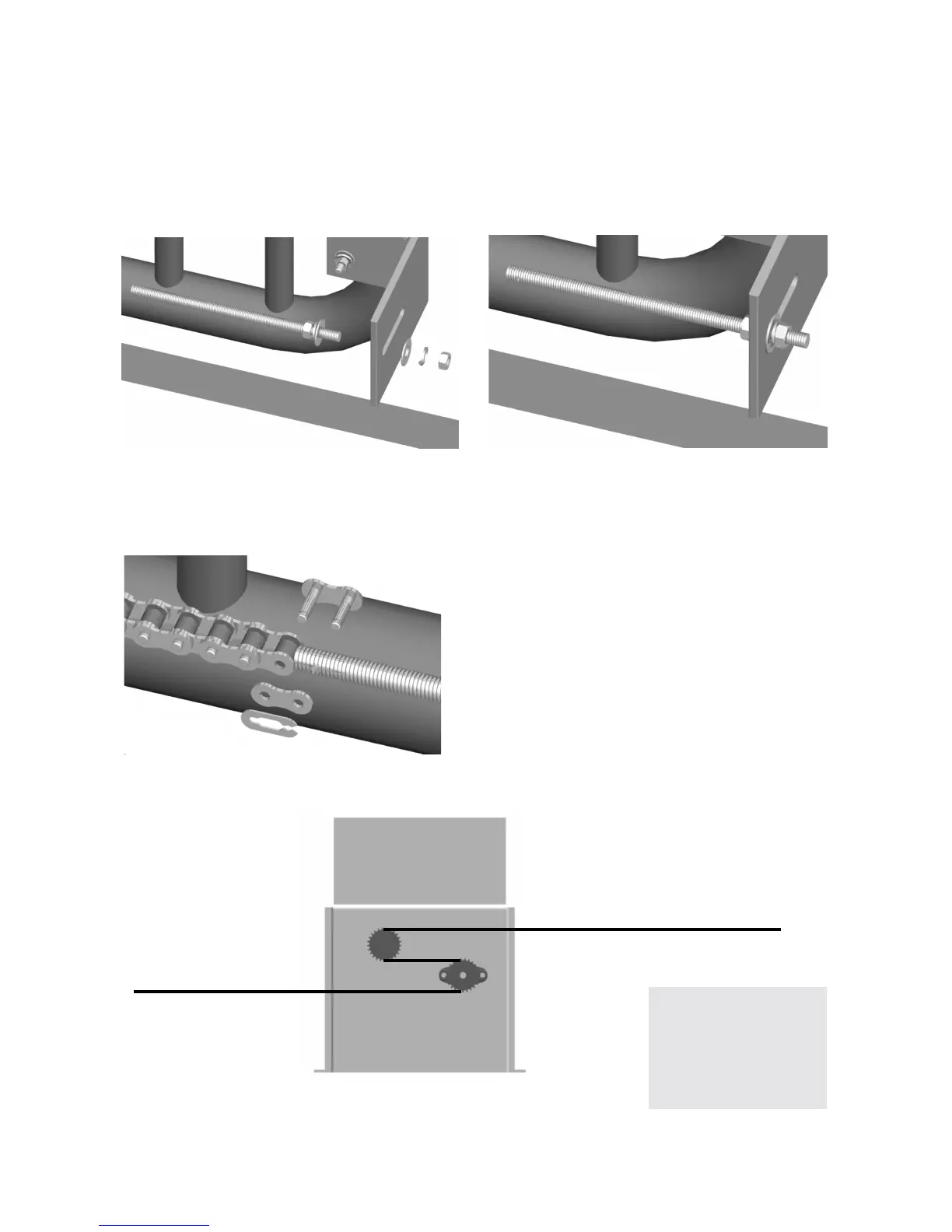

Connect chain bolt to the chain bracket as per Figure A & B on both ends of the gate.
STEP 2.
Attach the chain to the chain bolt using the
master chain link.
Note:
A chain breaking tool may
be required to reduce the chain to
the proper length.
Chain Path
Fig A
Fig B
TIP:
If welding
equipment is available,
tack weld the chain
bracket to the gate on
each end to prevent
slippage.
9
