Apollo 7100 - Receiver Options

14

Gate Operators

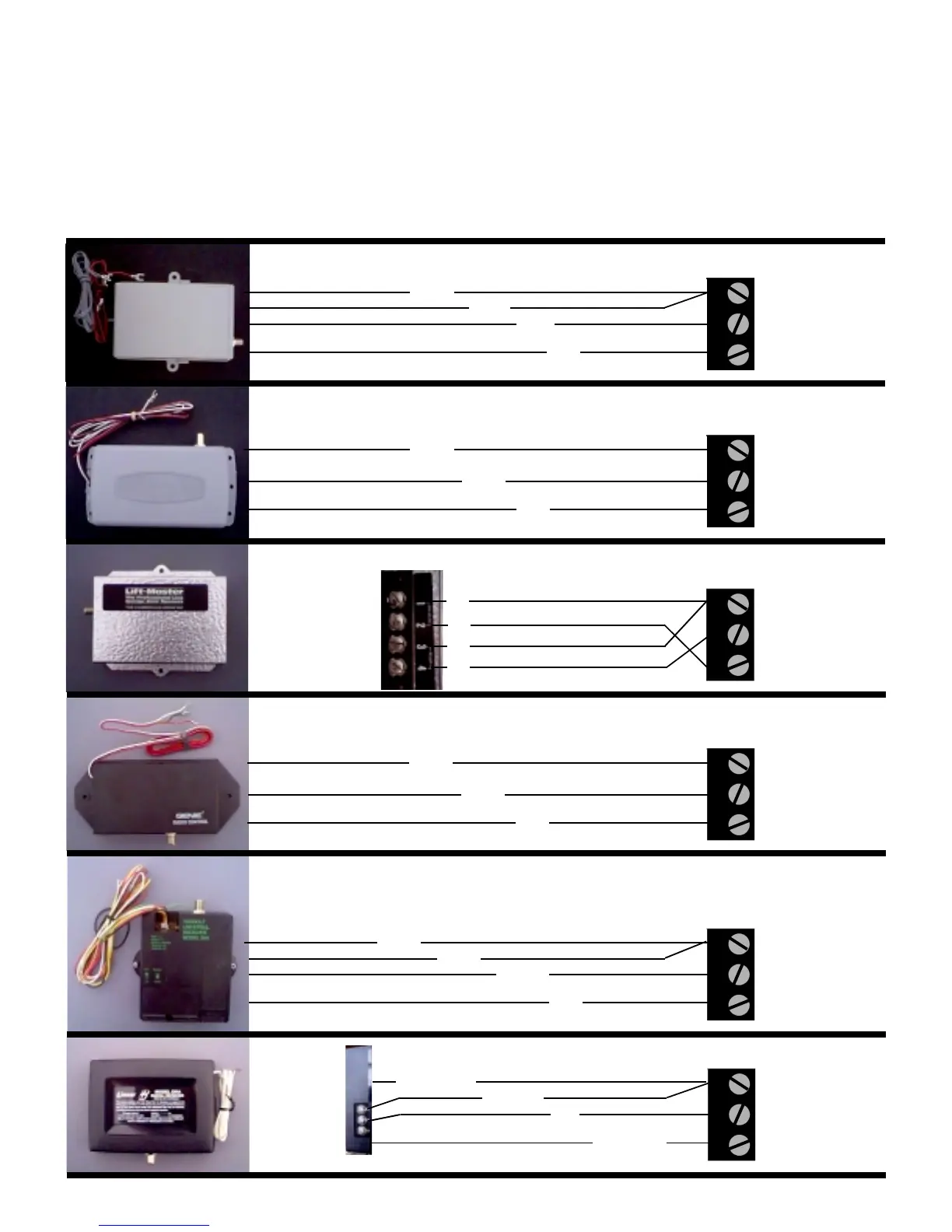

RECEIVER OPTIONS
Multi-Code
Allister
Lift-Master
Genie
Heddolf
Linear
GND INP 12V
GND
INP
12V
black
gray
gray
red
GND INP 12V
GND
INP
12V
white
black
red
GND INP 12V
GND
INP
12V
GND INP 12V
GND
INP
12V
GND INP 12V
GND
INP
12V
black
yellow
red
GND INP 12V
GND
INP
12V
white/silver
common
n/o
white/gold
4
3
2
1
white
black
red
white
Do not confuse the receiver code switches with the red program switches on the gate control board.
Never set all code switches to the same position. Transmitters must match code switches for proper operation.
If power is taken directly from battery or connected as shown below, receiver should be configured for 12VDC.
