Apollo AIM-2SL User Manual

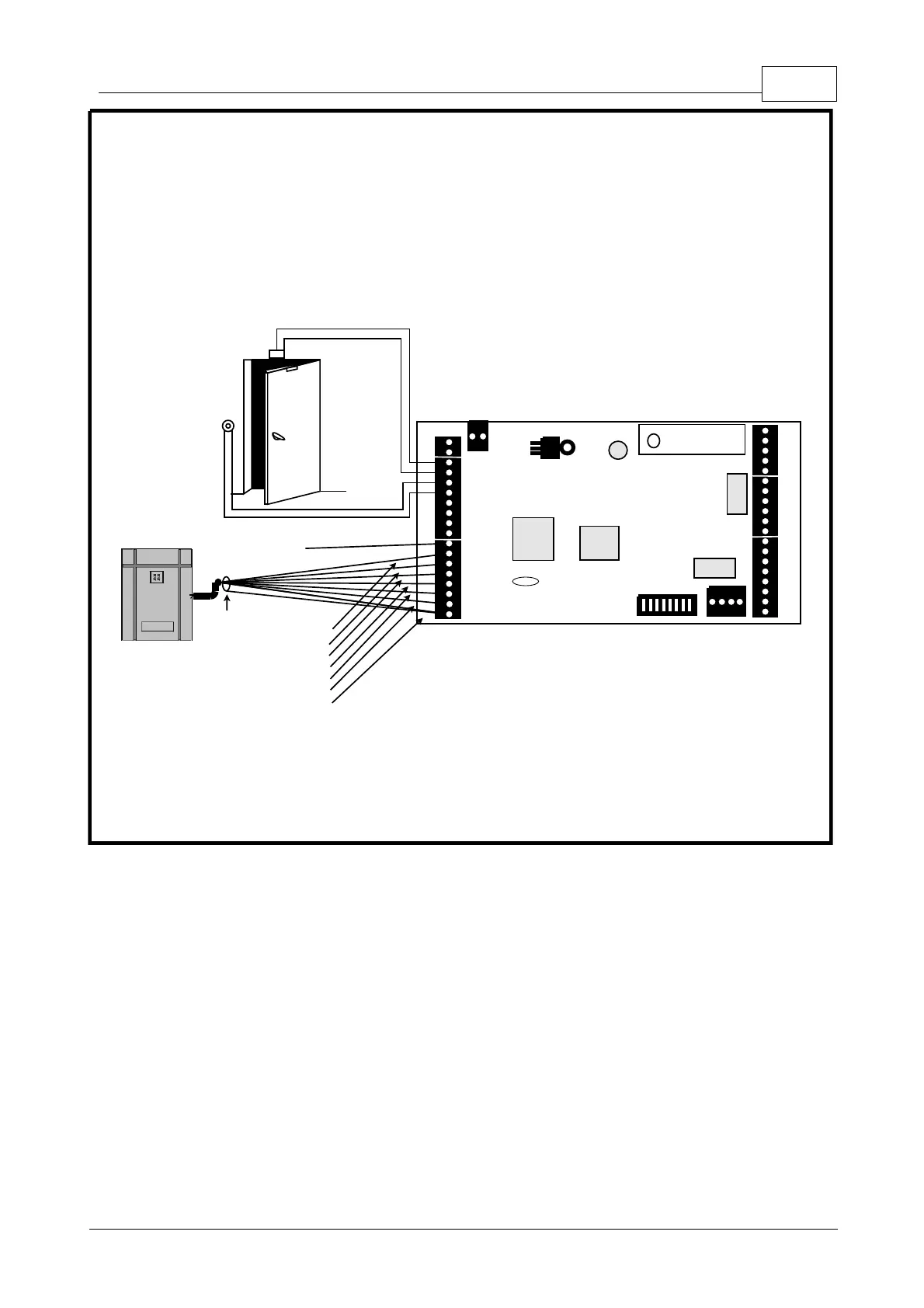

18System Wiring
© 2011 Apollo Security Inc.
Door Contact Switch
(normally closed)
Exit Push Button
(normally open)
Brown LED
Red +5 VDC
Green Data 0
White Data 1
Yellow Buzzer
Orange LED
Black Ground
Yellow LED (If used)
Shield
Table 3. 4 .1: AIM-1/2SL Reader 1 Wiring.
The AIM-1/2SL supports up to two card readers which
are connected in standard configuration. For each reader connection there is a door contact input, exit push
button input and one axillary input which is displayed here connected to a motion sensor. Refer to the
Terminal Connectors table and the installation instructions for the reader that will be used for exact wiring
positions.
