Apollo AIM-2SL User Manual

26System Wiring
© 2011 Apollo Security Inc.
3.7.4 ADA External High Security Relays
12 Vdc
Power Supply
+
-
Apollo Card Reader
Interface
OUT
RET/GND
+
-
Door
Strike
I
N
+
I
N
-
V
I
N
G
N
D
N
C
N
0
C
D
I
O
(DC Powered)

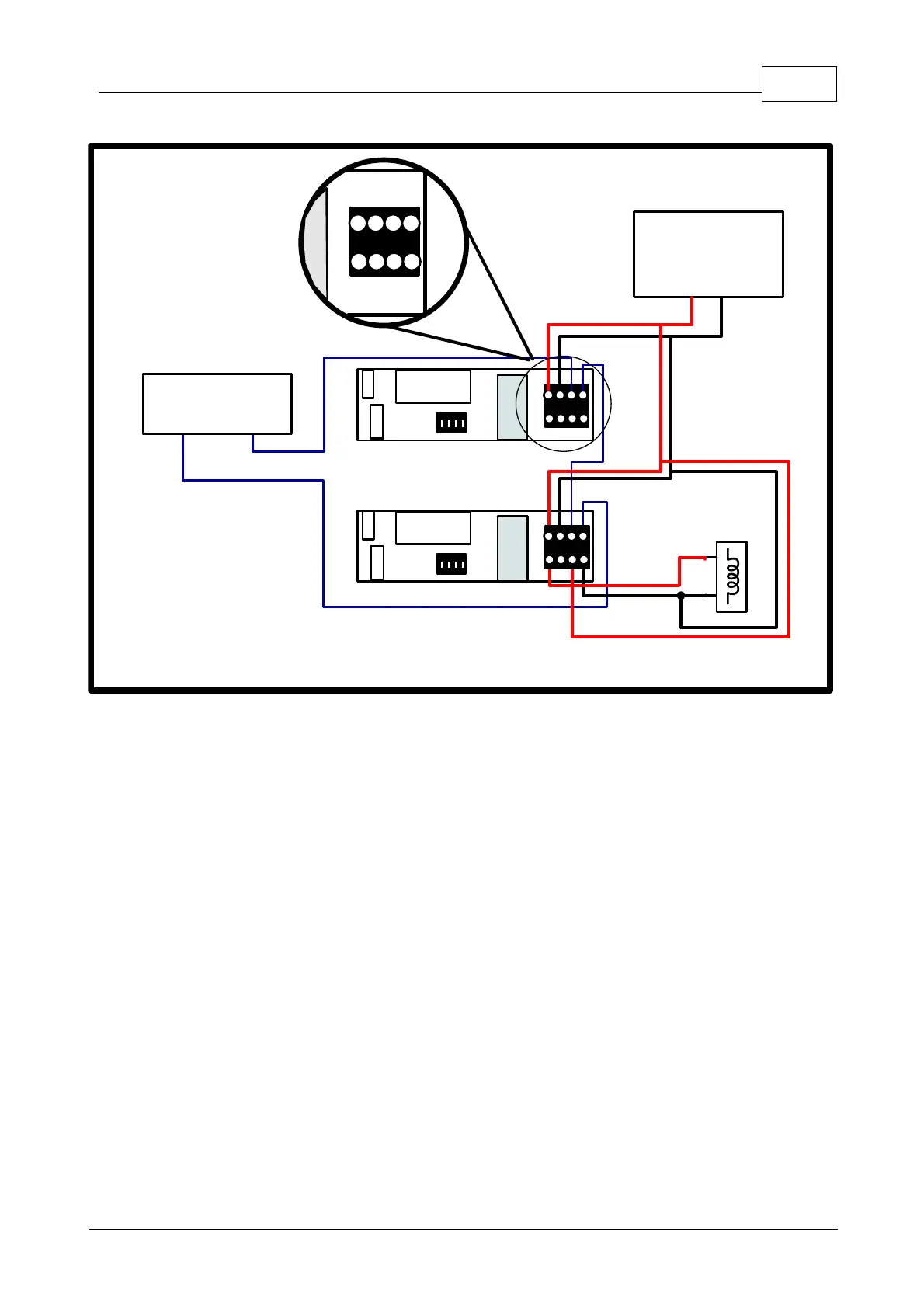

Figure 3.7.3 ADA-11 Loop and Strike Wiring.
An example showing wiring with two ADA-11s with
a DC Powered Door Strike. The strike is wired Fail-Secure, thus power is supplied to the strike only when the
relay is activated. The ADA-10 is wired in a similar fashion but instead of wiring to terminals, wiring must be
connected to the special connector of the ADA-10.
