Apollo av Series User Manual

● Propeller cover

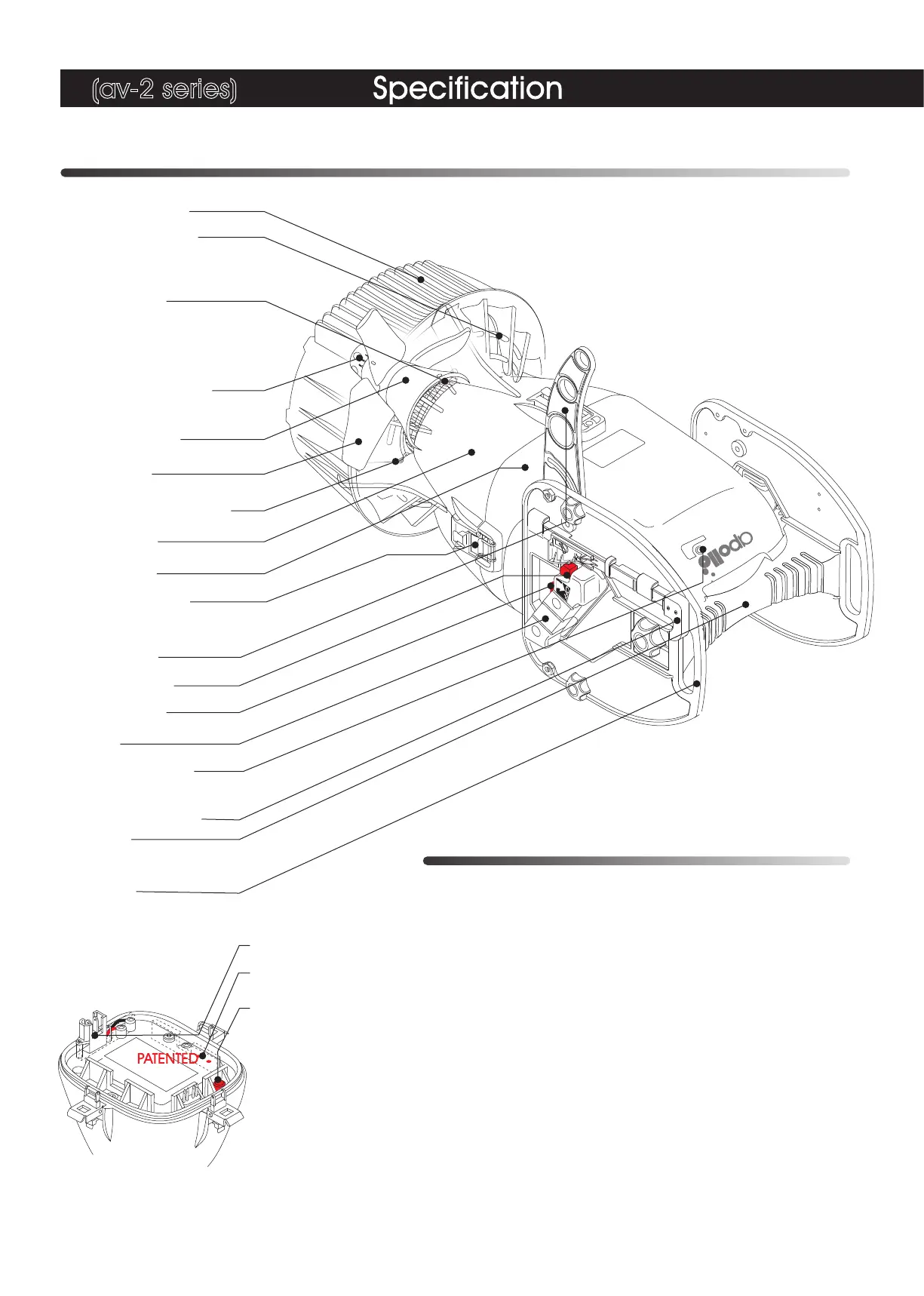

The av-2 EVOLUTION name of each part
Specification
● Propeller screen
● Propeller Assy
● Propellers
● Clamp ring
● Clamp ring lock lever
● Body Assy
● Head Assy
● Locking buckle
● Wing arms
● Starter switch
● Main switch
● Grips
● Handle
●Battery plug
●Water leak sensor
terminal
●Water leak alert lump
● Saddle
● Accelerator lever
● Battery indicator
● Pitch control dial
Length and width
Weight
Submerged unit weight
Speed
Active depth
Active range
Body
Motor
REV reducer
Speed adjuster
Safety devices
Accessories
: 720mm × 340mm
: 20.4kg with battery
: 0.5kg
: 0～4.5km/h
It depends on the divers posture, physique and
equipment.
: approx 70m
: 9400m
: Shock resistant ABS resin
: 24V Brushless motor
: Ring epicyclical gear speed reducer
: Rotational speed control
: Variable pitch-type propeller (3 steps)
: Sensation current shut-down device
Water leakage sensor function turns on warning
lamp when water enters the motor or battery
housing and automatically shuts down operations.
: Water-cooling motor deployment
: O-ring seal for the main body
: O-ring seal for the propeller end of the body
: Silicone grease
09
(av-2 series)

Apollo av Series Specifications
