3
WIRING
(NOTE OUTPUT RELAYS ARE RATED TO A MAXIMUM OF 3 AMPS PER FUNCTION)
• All APOLLO receivers include a wiring diagram on the side of the receiver enclosure –your system may have spare wires
in the loom that are not used
• Wires in the receiver wiring loom will either be colour coded or numbered (larger systems) for ease of recognition.
• Output voltage will match the power source supplied to the receiver EG: if you power the receiver with a 12vdc power source the
output from the function wires will be 12vdc positive.
• Function outputs shown on the wiring diagram are labeled with letters which correspond to the letters / functions shown on the
transmitter schematic in this manual.
• All APOLLO receivers will have a master output labeled on the wiring diagram as “ ID1” you can read further about his output
under APOLLO programming on page four of this manual
Input Voltage
All APOLLO receivers are “multivolt” and will accept a DC supply voltage of between 9 – 30 VDC
CAUTION
Ensure none of the APOLLO outputs are connected to a switch, solenoid or similar that exceeds a draw of 3 amps per function
OPERATING INSTRUCTIONS
How to turn on your APOLLO
To power up the system the following procedure applies.
1. Insert the transmitter power-on key under the green button and rotate the transmitter “ EMS stop button” in a clockwise direction
until it pops up. . The LED will flash red briefly and then start flashing green.
2. Rotate the “ EMS stop button” located on the receiver face in a clockwise direction until it pops up. The PWR LED should light up
4. Press and release any transmitter function button to start-up the APOLLO system
The “OP” LED should come on and remain on, indicating the system is in operation mode
How to turn off your APOLLO
1. Press the transmitter EMS-stop button” inwards (This will shut down the main contact in the receiver unit ).
2. Remove the transmitter power-on key from under the green button
3. Shut down the receiver by depressing the “ EMS stop button” located on the receiver face.

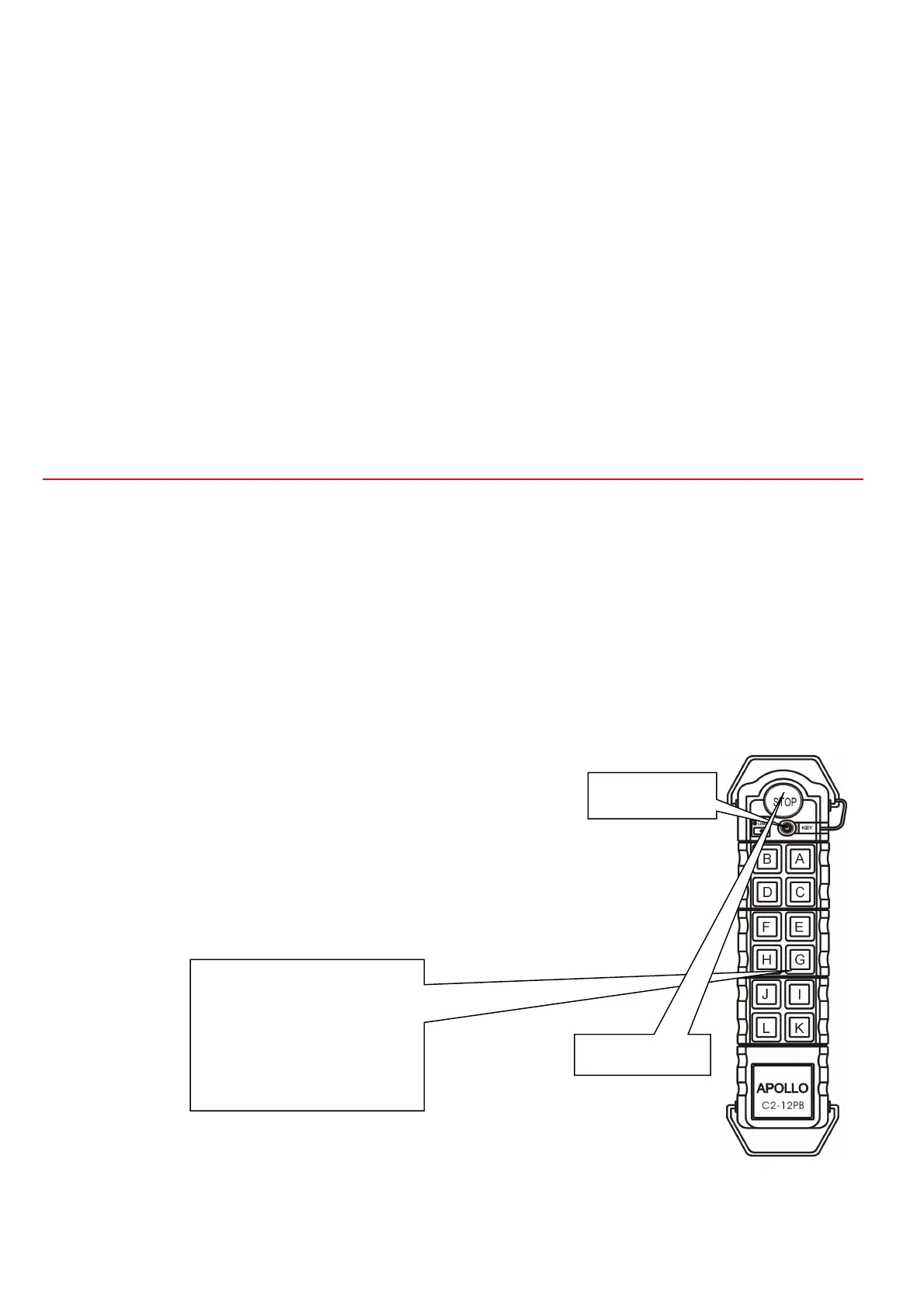

Push any function button once to
start up the APOLLO system once
the EMS buttons on the transmitter
and receiver are in the on position
and the power on key is
inserted
Power-on key
EMS-stop button
