APOLLO PROGRAMMING
The APOLLO systems in standard format come with all functions as momentary
EG: When a function button is depressed on the transmitter the corresponding function will output on the receiver only for as long as the
transmitter button remains depressed.
Latching functions and key interlocks can be programmed upon request, please contact your distributor for further information.
Master Output Functionality
The APOLLO systems also feature a master output, this output can be configured to provide an output when one or more of the transmitter
function buttons are active to your requirements. Factory set to provide master output cross all functions when active. Master Output wire is
identified as “ID1” on the side of your receiver. To change factory setting please contact your distributor.
Auto Shut down
In standard format the APOLLO receiver and transmitter are not set to shutdown automatically.
TRANSMITTER AND RECEIVER LED STATUS INDICATORS
Transmitter LED indicator

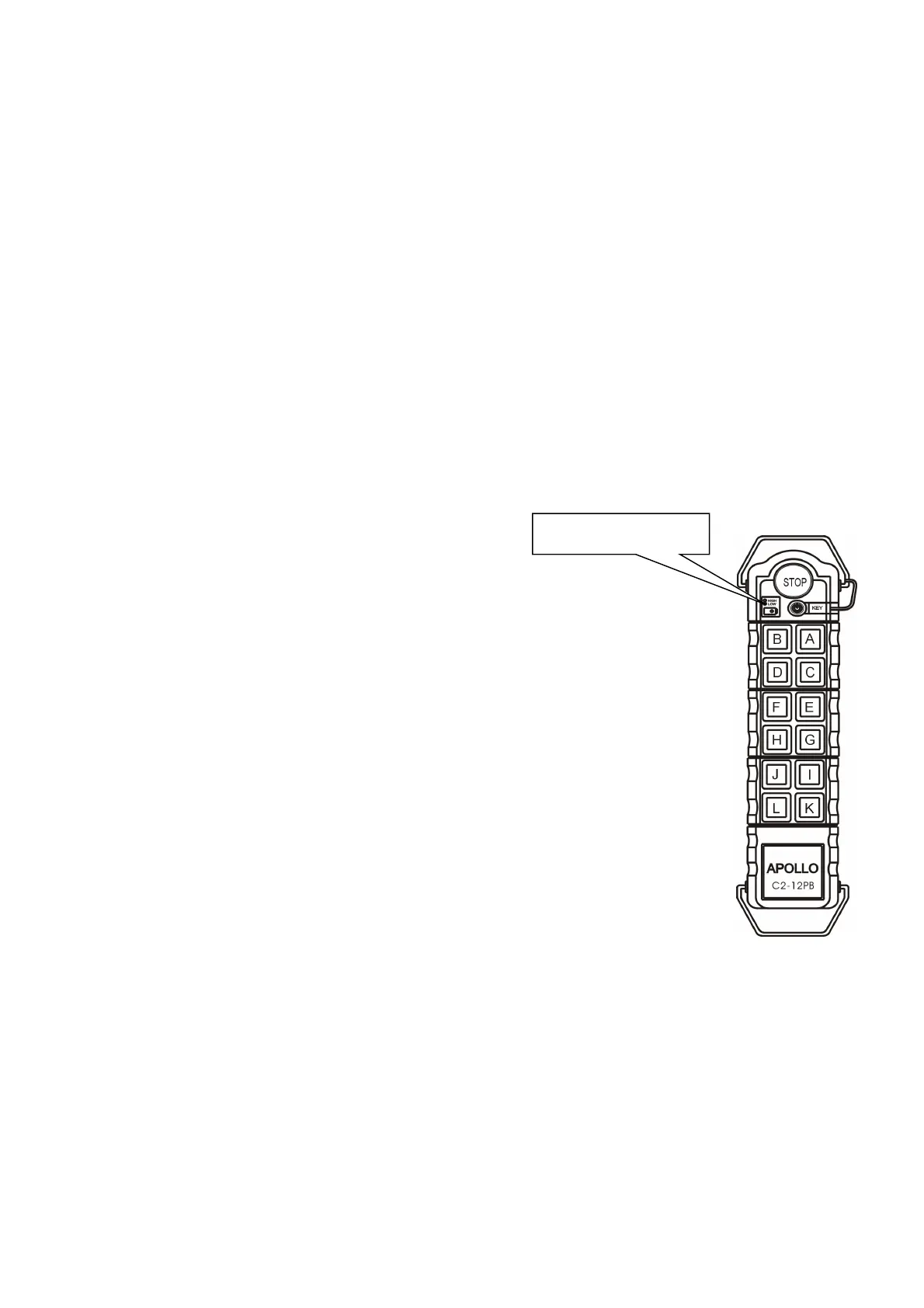

1. The APOLLO transmitter features a dual colour LED indicator. When first powered up the LED will flash
once /second, it’ll do this 7 times and then stop. When transmitting the LED will blink rapidly, stop transmission
and the LED will flash 7 times and then stop. The transmitter has no “Auto Off” function and will remain on until
the red mushroom switch is depressed.
2. When the LED is green the transmitter battery power is sufficient, if the LED turns to red this indicates low
power and batteries must be replaced. Please replace the batteries with 4pcs of AA/UM-3 ( 1.5V ) alkaline
batteries, or nickel rechargeable batteries immediately, or the transmitter will automatically shut down after 10
sec.
Receiver LED indicators (Status)
PWR = LED indicator is green when the receiver is connected to a power supply and has been turned on via
clockwise rotation of the receiver “ EMS “ button into an outward position
OP* = LED indicator is green when the Transmitter has been turned on and a transmitter function button
pressed to start the system – confirmation that the receiver is in operation mode and ready to receive
transmission
DATA = LED indicator generally glows solid when an authorized transmission is being received.
RF = LED blinks rapidly and randomly, showing that radio signals of any frequency are present
* OP LED, this is the most important indicator, it confirms the both the transmitter and receiver are on, communicating and ready for
operation
