7
8PB decoder & relay board
10PB decoder & relay board
12PB decoder & relay board
4PB decoder & relay board
6PB decoder & relay board
8PB decoder & relay board
10PB decoder & relay board
12PB decoder & relay board
2
2
Nylon Belt for Transmitter
WARRANTY
Your APOLLO system is covered by warranty against defects in materials and workmanship for the period of 12 months from date of
purchase.
This warranty does not cover equipment that has been abused or damaged due to careless handling.
This warranty extends to the repair or replacement of APOLLO system components only at Traxion Distributions discretion.

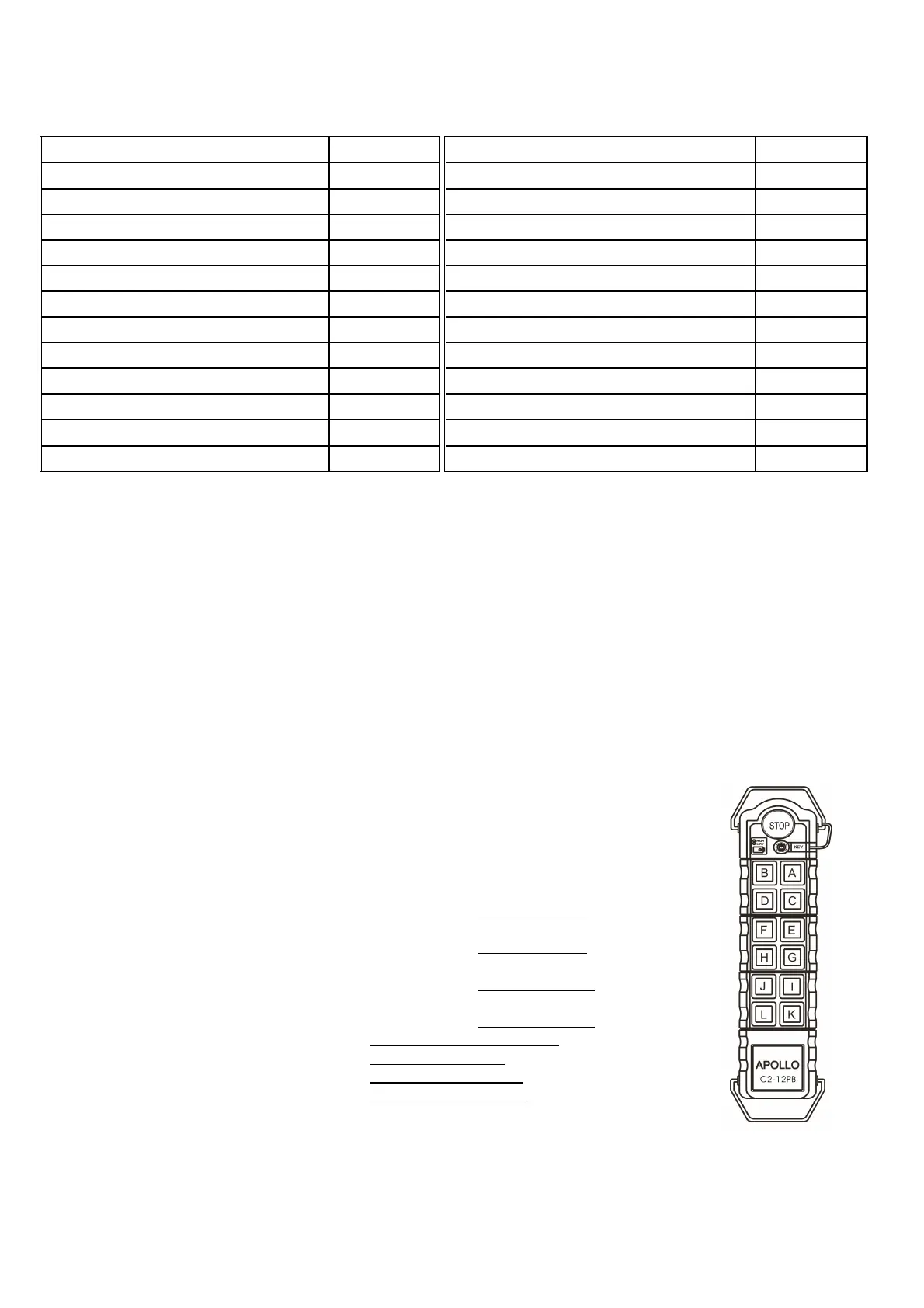

APOLLO WIRING DIAGRAMS
Note: wire / function number is printed on each wire in the loom coloured or not
Note: each function maximum 3 amps – each output positive switch 12 or 24 volt dependent upon supply voltage to the Apollo receiver
Wire number Wire colour Transmitter designation
1 yellow Button A
2 yellow Button B
3 orange Button C
4 green Button D
5 green Button E
6 orange Button F 6 function system
7 blue Button G
8 blue Button H 8 function system
9 orange Button I
10 brown Button J 10 function system
11 brown Button K
12 orange Button L 12 function system
13 Grey Master output wire all systems
14 Grey Spare wire all systems
15 red Main positive all systems
16 black Main negative all systems
