INSTALLATION, OPERATION & MAINTENANCE
MANUAL

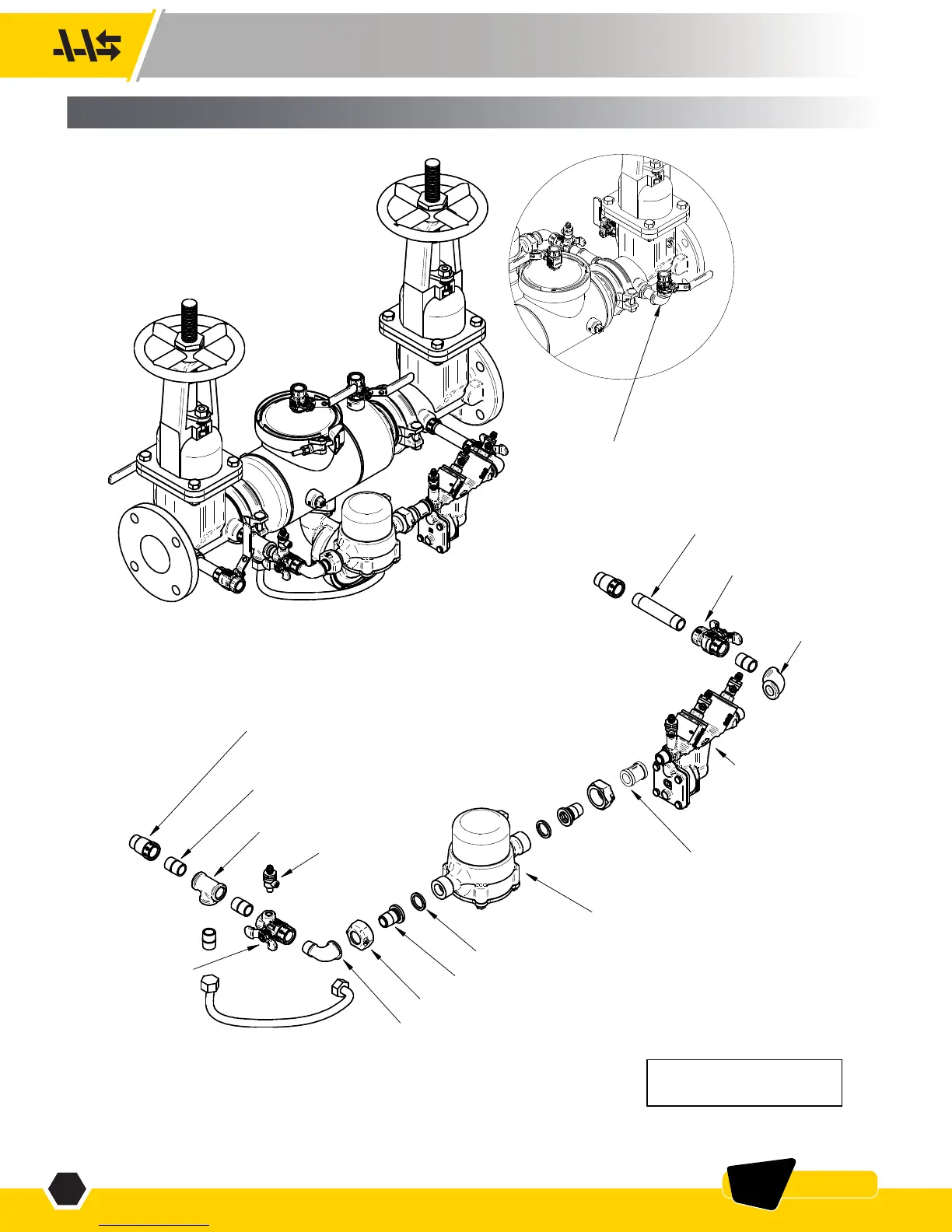

2-1/2" & 3"
TYPE 1
BYPASS
LINE
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
Note: Before attaching bypass line,
remove #2 test cock, nipple, and
reducer and move to the opposite
side of the gate valve.
3/4" MNPT X
1/2" FNPT Fitting
(2 ea.)
1/2" X 1-1/2" Long Nipple
1/2" Ball Valve
without Tapped Port
1/2" RPLF4A
Reduced Pressure
Backflow Preventer
1/2" Meter Connector (2 ea.)
Water Meter
Rubber Washer (2 ea.)
1/2" Street Elbow
Meter Nut (2 ea.)
1/2" Ball Valve
with Tapped Port
(Note Location
of Port)
1/2" Close Nipple (4 ea.)
(~1" Long)
1/2" Tee
Test Cock
1/2" Coupling
1/2" 90°
Elbow
BYPASS KITS
