Apollo RP4A User Manual

25
Customer Service (704) 841-6000
backflow.apollovalves.com
ES1600 REV A.
BFMMRP4ALBF

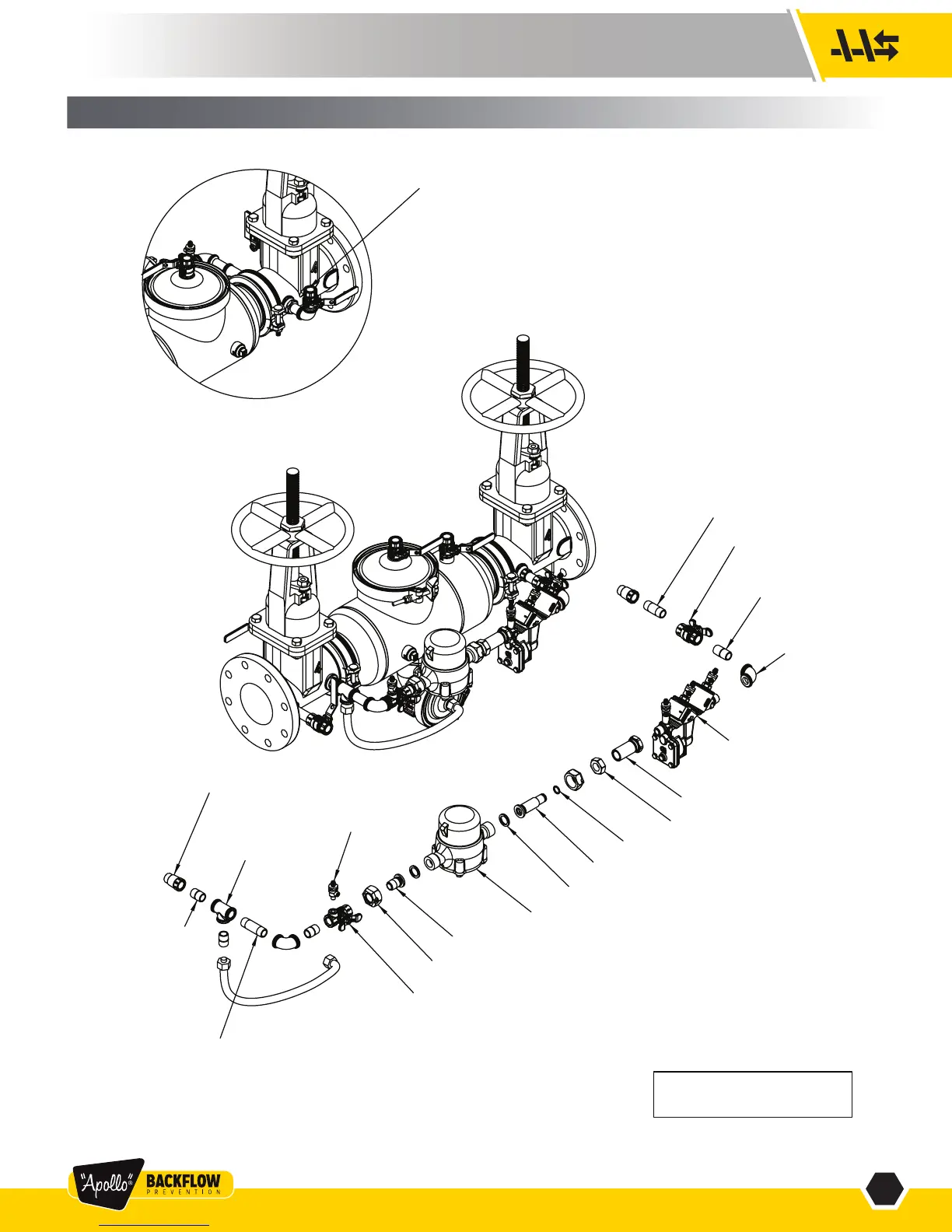

APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
4"
TYPE 1
BYPASS
LINE
Note: Before attaching bypass line,
remove #2 test cock, nipple, and
reducer and move to the opposite
side of the gate valve.
3/4" MNPT X
1/2" FNPT Fitting
(2 ea.)
Test Cock
1/2" Close
Nipple
(~1" Long,
3 ea.)
1/2" Tee
1/2" X 2-1/2"
Long Nipple
1/2" Ball Valve with Tapped Port
(Note Location of Port)
Meter Nut (2 ea.)
Meter Connector
Water Meter
Rubber Washer (2 ea.)
Adjustment Joint Coupling
1/2" RPLF4A
Reduced Pressure
Backflow Preventer
1/2" Ball Valve
without Tapped
Port
1/2" X 2" Long Nipple
1/2" 90°
Elbow
(2 ea.)
Adjustment Joint Nut
Adjustment Joint O-ring
Adjustment Joint Adapter
1/2" X 1-1/2"
Long Nipple
BYPASS KITS
