Apollo RP4A User Manual

27
Customer Service (704) 841-6000
backflow.apollovalves.com
ES1600 REV A.
BFMMRP4ALBF

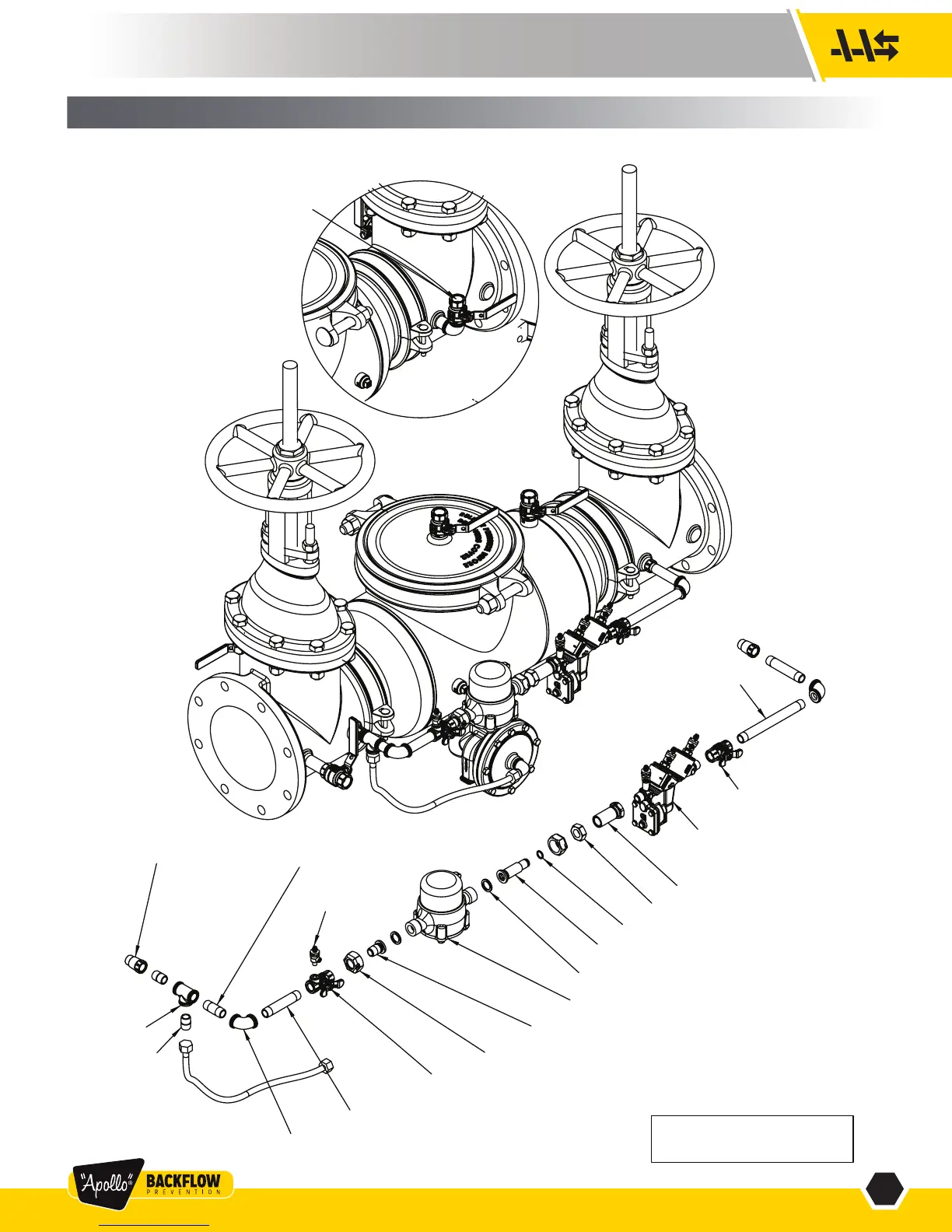

APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
8"
TYPE 1
BYPASS
LINE
Note: Before attaching bypass line,
remove #2 test cock and nipple
and move them to the opposite
side of the gate valve.
Test Cock
3/4" Male NPT
X 1/2" Female NPT
Fitting (2 ea.)
1/2" Tee
1/2" Close
Nipple
(~1" Long,
2 ea.)
1/2" X 2"
Long Nipple
1/2" 90° Elbow (2 ea.)
1/2" X 4" Long Nipple (2 ea.)
1/2" Ball Valve with Tapped Port
(Note Location of Port)
Meter Nut (2 ea.)
Meter Connector
Rubber Washer (2 ea.)
Water Meter
Adjustment Joint Coupling
1/2" RPLF4A
Reduced Pressure
Backflow Preventer
1/2" Ball Valve
without Tapped Port
1/2" X 7-1/2"
Long Nipple
Adjustment Joint Nut
Adjustment Joint O-ring
Adjustment Joint Adapter
BYPASS KITS
