Apollo RPLF4A User Manual

30
Customer Service (704) 841-6000
www.apolloflowcontrols.com
“Apl”
Flow Controls
INSTALLATION, OPERATION & MAINTENANCE
MANUAL

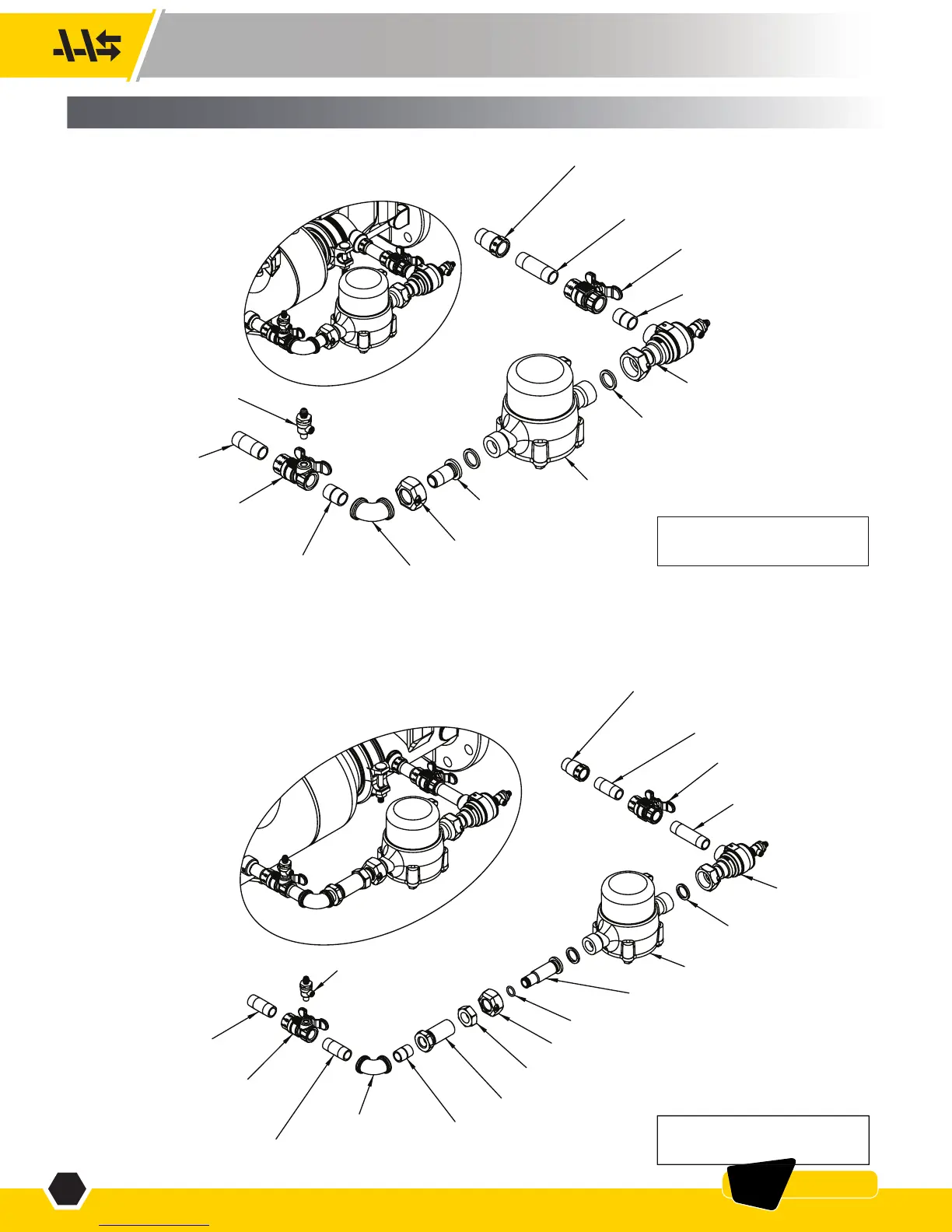

1/2" Close Nipple
(~1" Long)
1/2" Close Nipple
(~1" Long)
1/2" 90° Elbow
Meter Nut
Meter
Adapter
Water
Meter
Rubber Washer
2 Each
1/2" Single Check Valve
1/2" Ball Valve
Without Tapped Port
3/4" Male NPT X
1/2" Female NPT Fitting
1/2" X 2"
Long Nipple
1/2" X 2-1/2" Long Nipple
1/2" Ball Valve
With Tapped Port
(Note Location of Port)
Test Cock
2-1/2" & 3"
TYPE 2
BYPASS
LINE
Test Cock
1/2" 90°
Elbow
1/2" Close Nipple
(~1" Long)
Adjustment Joint Retainer
Adjustment Joint Nut
Adjustment Joint O-ring
Adjustment Joint Adapter
Meter Nut
Water Meter
Rubber Washer
2 each
1/2" Single
Check Valve
1/2" Ball Valve
Without Tapped Port
3/4" Male NPT X
1/2" Female NPT Fitting
4"
TYPE 2
BYPASS
LINE
1/2" X 2"
Long Nipple
1/2" X 2"
Long Nipple
1/2" X 2" Long Nipple
1/2" X 3"
Long Nipple
1/2" Ball Valve
with Tapped Port
(Note Location of Port)
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
BYPASS KITS
