Apollo RPLF4A User Manual

31
Customer Service (704) 841-6000
backflow.apollovalves.com
ES1600 REV A.
BFMMRP4ALBF

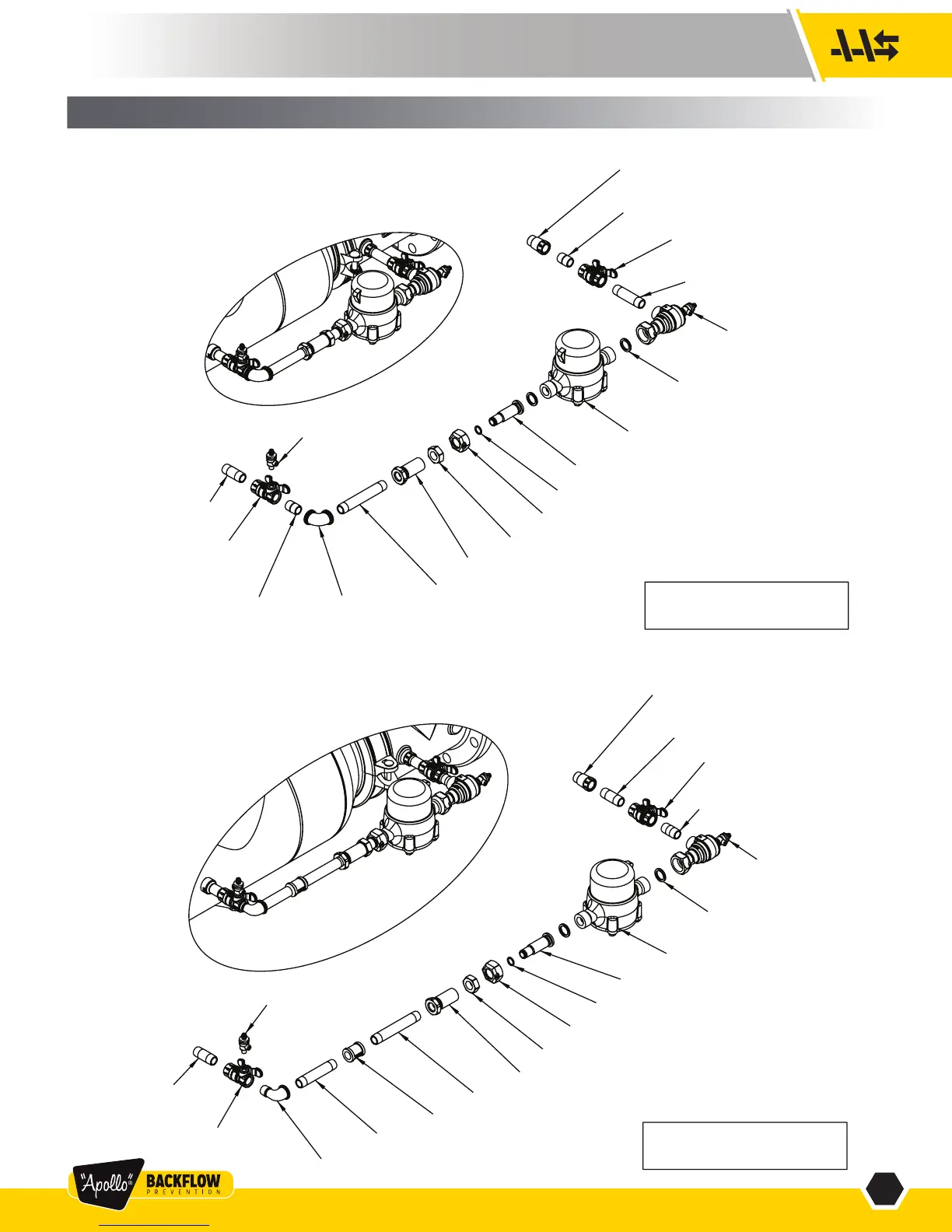

6"
TYPE 2
BYPASS
LINE
1/2" Ball Valve
with Tapped Port
(Note Location of Port)
1/2" Ball Valve
Without Tapped Port
1/2" Close Nipple
(~1" Long)
1/2" Close Nipple (~1" Long)
1/2" 90° Elbow
Adjustment Joint Retainer
Adjustment Joint Nut
Adjustment Joint Adapter
Adjustment Joint O-ring
Meter Nut
Rubber Washer
2 each
Water Meter
1/2" Single
Check Valve
3/4" Male NPT X
1/2" Female NPT Fitting
1/2" X 2" Long Nipple
1/2" X 5" Long Nipple
1/2" X 3" Long Nipple
Test Cock
8"
TYPE 2
BYPASS
LINE
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
Test Cock
1/2" X 2"
Long Nipple
1/2" Ball Valve
with Tapped Port
(Note Location of Port)
1/2" Street Elbow
1/2" Coupling
Adjustment Joint Retainer
Adjustment Joint Nut
Adjustment Joint O-ring
Adjustment Joint Adapter
Water Meter
Rubber Washer
2 each
1/2" Single
Check Valve
1/2" Ball Valve
Without Tapped Port
3/4" Male NPT X
1/2" Female NPT Fitting
Meter Nut
1/2" X 4" Long Nipple
1/2" X 5" Long Nipple
1/2" X 1-1/2" Long Nipple
1/2" X 2" Long Nipple
APPLY TEFLON TAPE TO PIPE
THREADS AND INSTALL
COMPONENTS AS SHOWN.
BYPASS KITS
