iMac (21.5-inch, Late 2009) Views — Screw Chart 220
2010-11-18

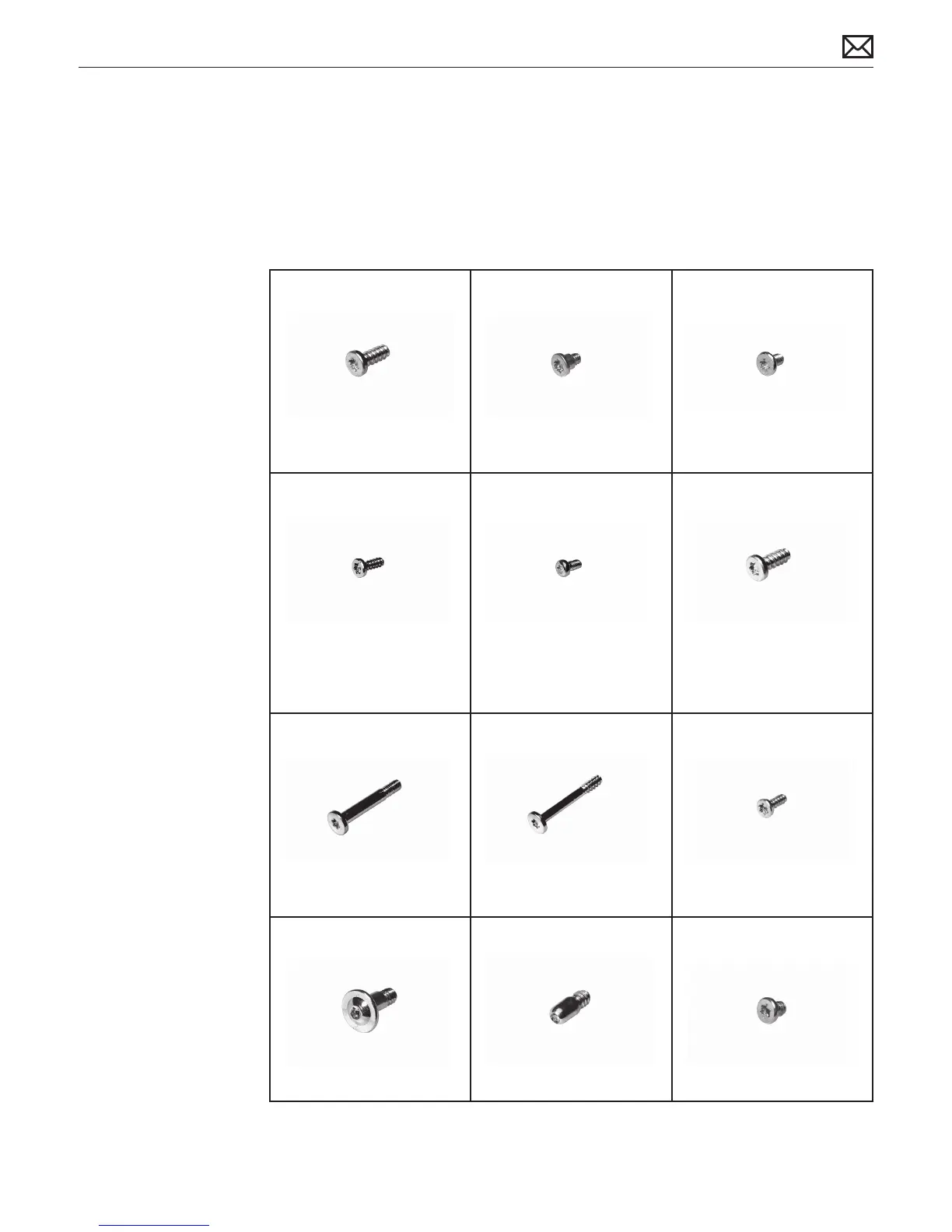

Screw Chart
Note: Screws are not to scale.
922-9246
T10
LCD panel (8)
922-9239
T10
Camera (2)
922-4723
T8
Bluetooth antenna (2), AirPort
antenna (2), video card (2)
922-9247
T8
Bluetooth board (1)
922-8579
T6
AirPort card (1)
922-6850
T10
AirPort carrier board (2), LED
backlight board (2), Power
supply (1), Hard drive (2),
Optical drive (4), AC inlet (3)
922-9244
T10
Power supply, machine (2)
922-9243
T10
Power supply, long (1),
Logic board, long 24mm (3)
922-9241
T8
SD board (1)
922-9136
T8
Hard drive clip to HDD (2)
922-7001
T8
Hard drive pins (2)
922-9245
T10
Audio cable (2)
