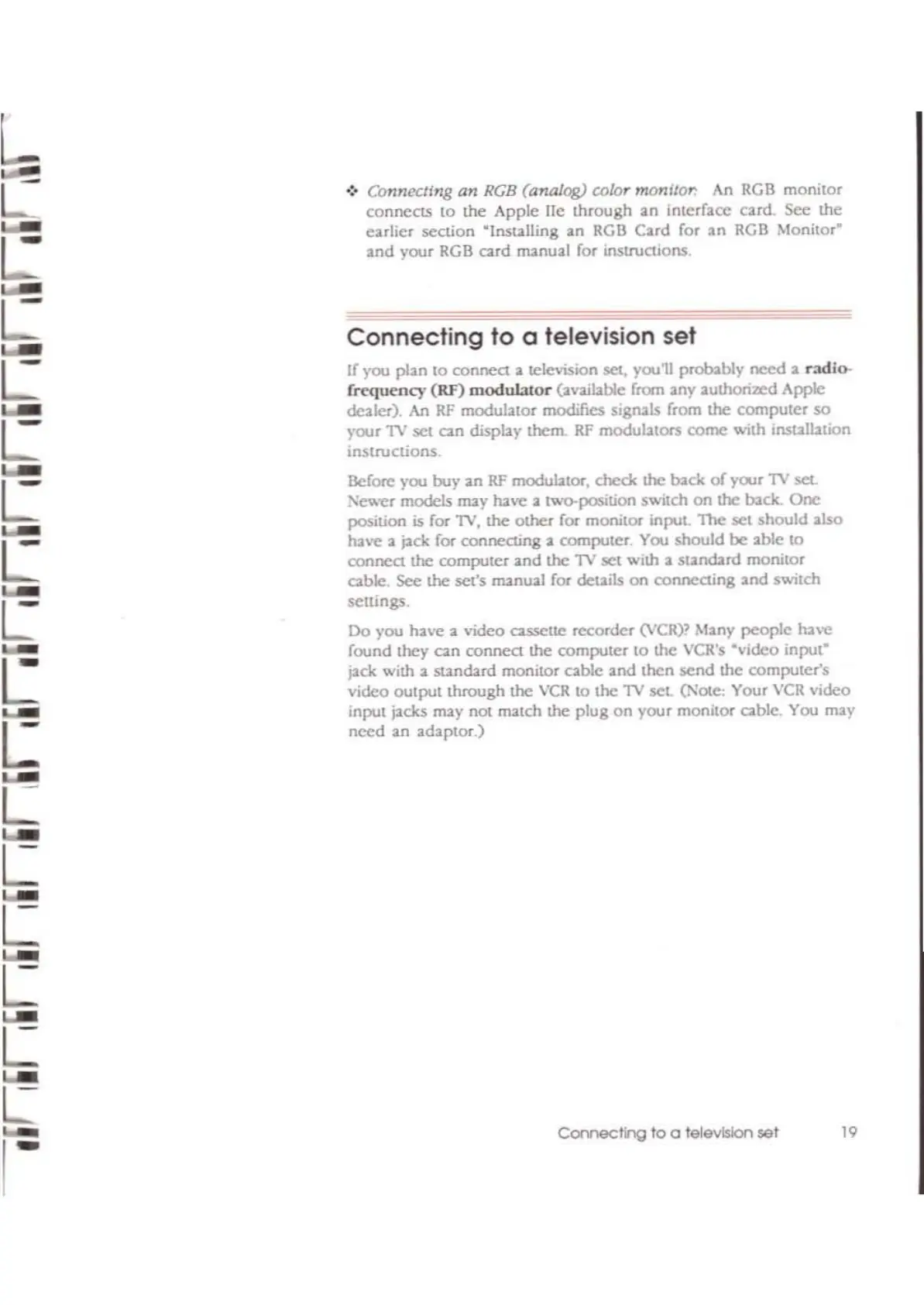

Connecting to a television set
.:. Connectln8 an ReB (analog) color monitor: An RCB monitor
connects to the Apple lie lhrough an interface card. see the
earlier section "Insulling :In RCB Card for an RCB Monitor"
:lnd your RGB card m:lInua[ for instructions
If you plan 10 connea a television set, you1l pr0b3bly need a r:KIio-
frequency (RF) modulator (available from :Iny authorized Apple
de:lller). An RF modulator modifies sigruls from lhe computer SO
your TV SCI can display lhem. Rf modub.tors come with iOSlallation
instructions.
Defore you buy:.ln RF modulator, check the back of your n
'
set.
i\'ewer models lTUy h41\'C a two-position switch on the back. One
position is for lV, lhe other for monitor input. The set should al50
rul.\·c a jack for connecting:l computer You should be :able 10
connect the computer and the 1V SCi wilh a standud monitor
cable. See the SCI'S manu:al for details on connecting :md switch
settings.
Do you have a video cassette recorder (VCR)' M:any people h;;r,\'e
found they can connea Ihe computer to the VCR's ·video input-
pck wilh 2 sunwrd monitor cable 2nd then send Ihe computers
video outpullhrough the VCR to the lV seL (NOIe, Your VCR video
input jacks m.1lY nOi m.1ltch the plug on your monitor able. You may
need 2n 2daptor.)
