Apple Power Mac G4 - Page 43

Take Apart Modem, PCI Graphics - 21

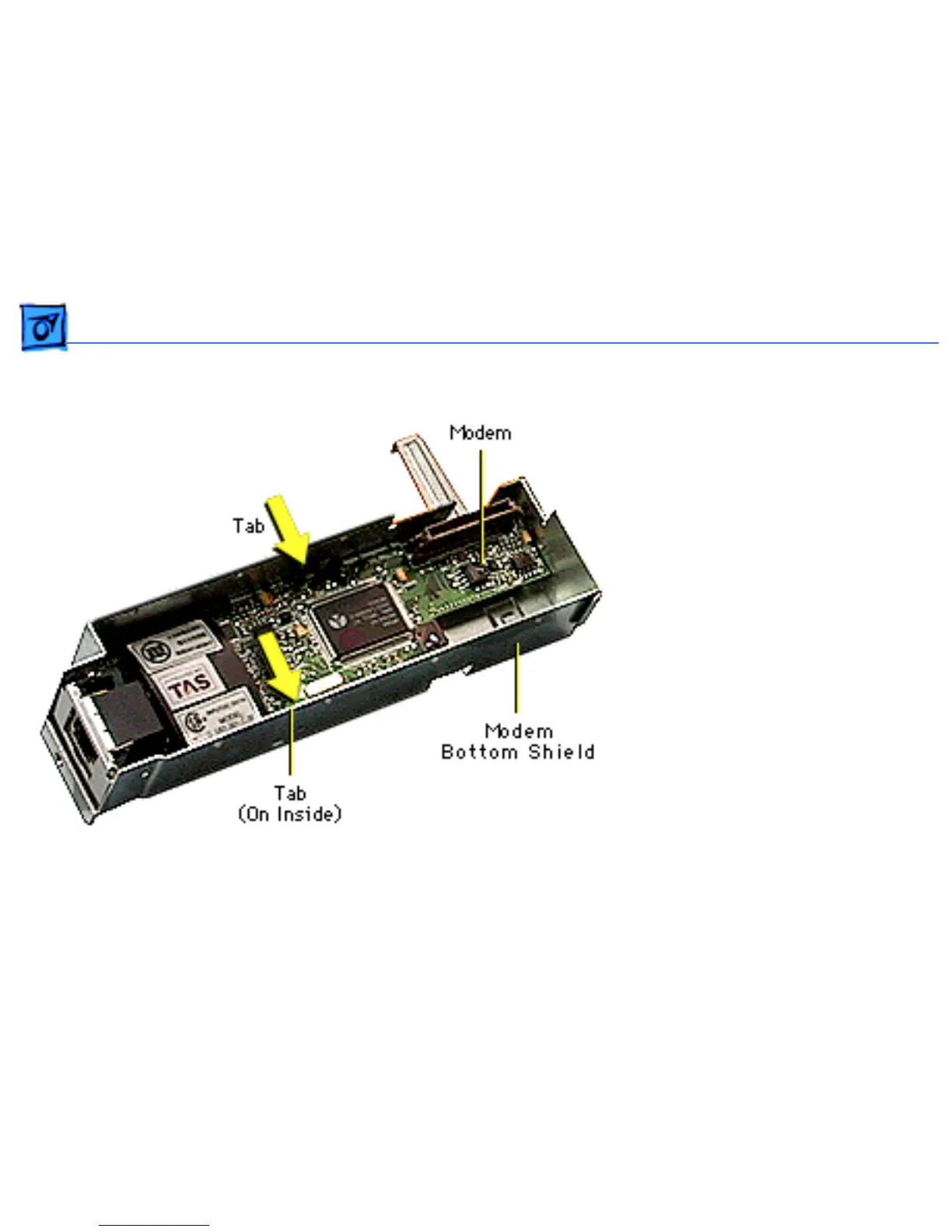

8. Note: There are two tiny
metal tabs on the inside
of the bottom shield. The
modem rests on these
tabs so it does not make
contact with the bottom
shield.
With a needlenose
pliers, pinch the tiny
metal tabs flat so the
modem board can be
removed from the bottom
shield.
