Apple Power Mac G4 - Page 84

Take Apart Hard Drive, IDE /ATA - 62

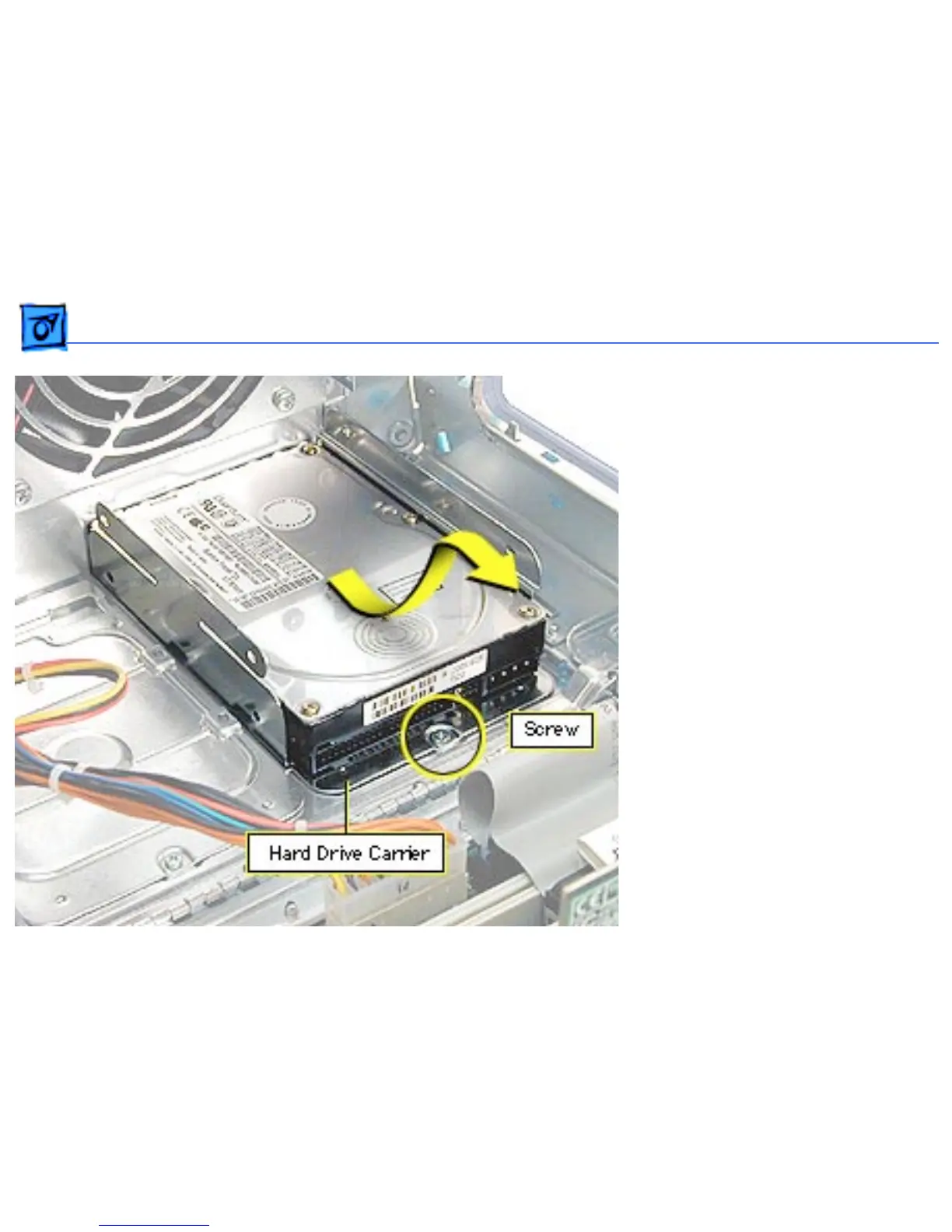

2. Remove the hard drive
carrier mounting screw.
3. Pull the drive carrier
back and lift up at an
angle to release the
carrier tabs from the
slots in the chassis.
4. Remove the carrier and
drive from the
computer.
