Apple Studio Display - Page 28

26 - Studio Display (17" ADC) Take Apart
Deflection Board and Mount Assembly

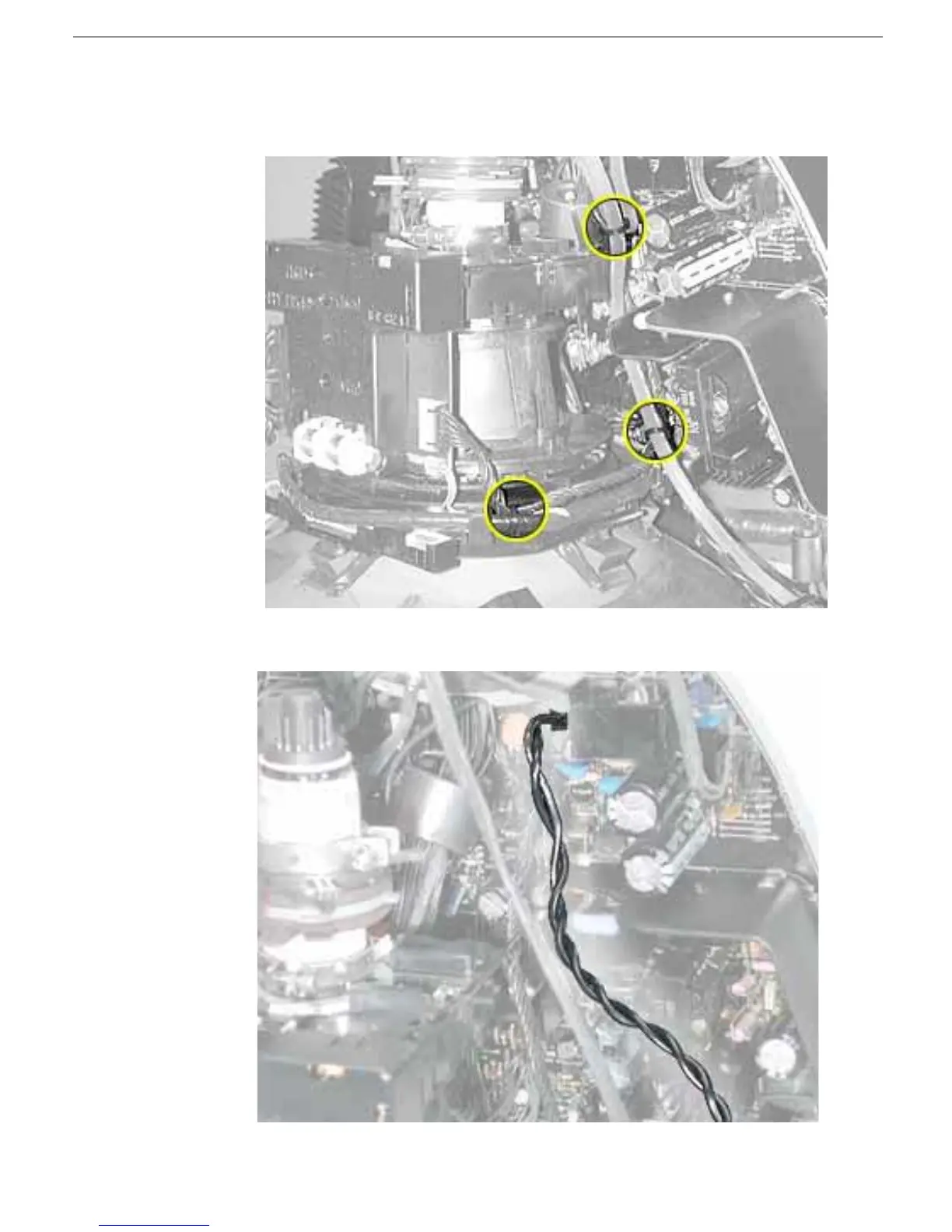

5. Use wire cutters to cut four tie wraps. The three tie wraps on right side of CRT neck
are shown below; the fourth tie wrap is on the left side of the CRT neck.
6. Disconnect the degauss cable from deflection board connector B981.
