Apple Studio Display - Page 30

28 - Studio Display (17" ADC) Take Apart
Deflection Board and Mount Assembly

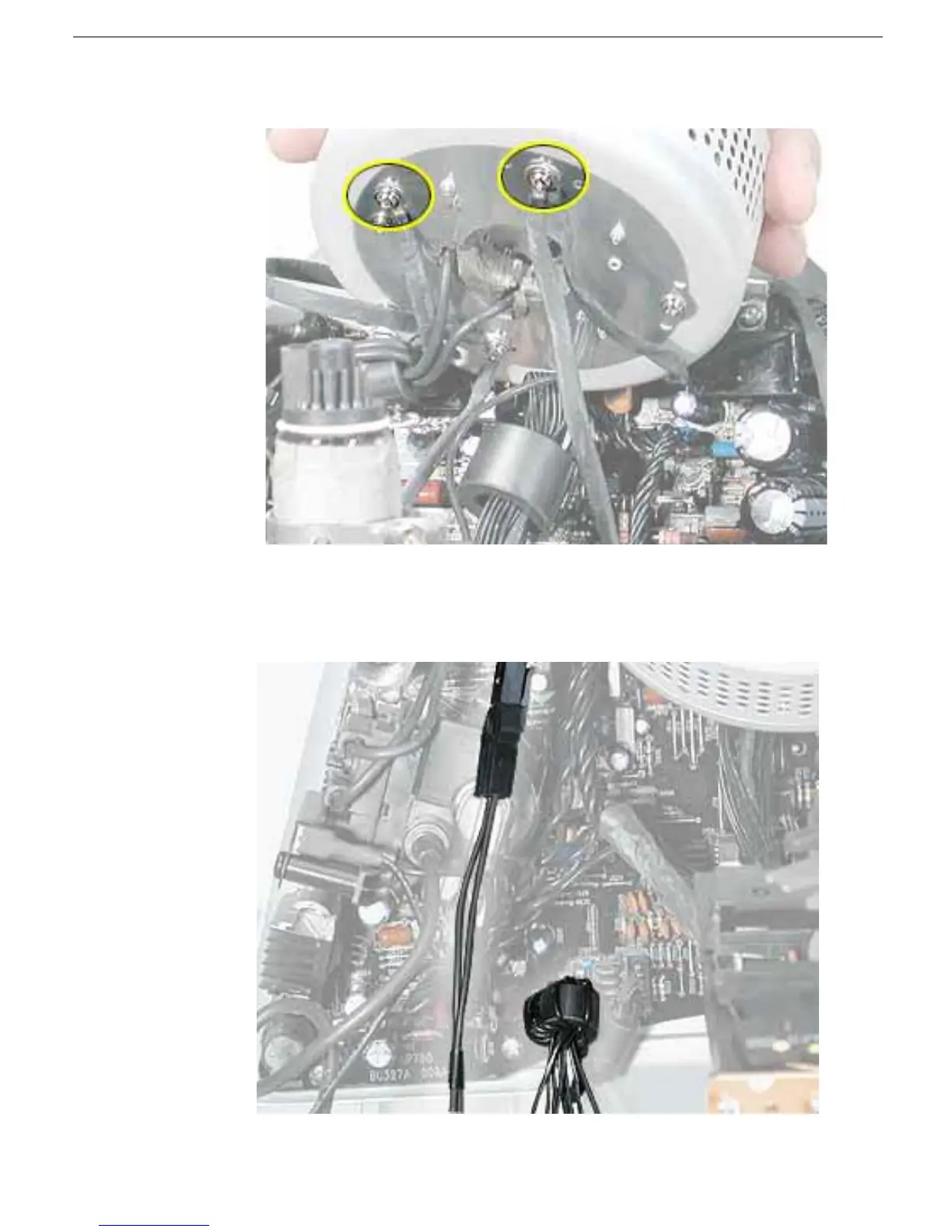

9. Remove two screws and four ground cables from the the video shield.
10. Tilt back the entire deflection/mount assembly for better access in the following steps.
Disconnect the CRT ground cable (1) and the control board cable (2) from connector
B101.
