CSPP Capacitor Charging Unit Operation Manual
CSP-CSPP-8000/2
_________________________________________________________________________________________________________
__________________________________________________________________________________________________________
Page 48 of 59
ISSUE
DESCRIPTION
APPD. DATE
DRAWING No.
TITLE
DATE DATE DATEAPPROVED
CHECKED DRAWN
MATERIAL ALL DIMS IN mm NOT TO SCALE
APPLIED ACOUSTIC ENGINEERING LTD.
APPLIED ACOUSTIC ENGINEERING LTD.
THIS DRAWING IS LOANED WITHOUT OTHER CONSIDERATION THAN THE AGREEMENT AND CONDITITON THAT IS NOT TO BE REPRODUCED, COPIED OR OTHERWISE DISPOSED OF DIRECTLY OR INDIRECTLY, AND IS NOT TO BE USED IN WHOLE OR IN PART TO ASSIST IN OR TO FURNISH ANY INFORMATION FOR THE MAKING OF DRAWINGS, PRINTS, APPARATUS OR PARTS THEREOF.
FILE NAME
C
CSP D
SJM
AD
02/07
PRODUCTION
1
03/10/07
CSP-CSPD-5100-2.sch

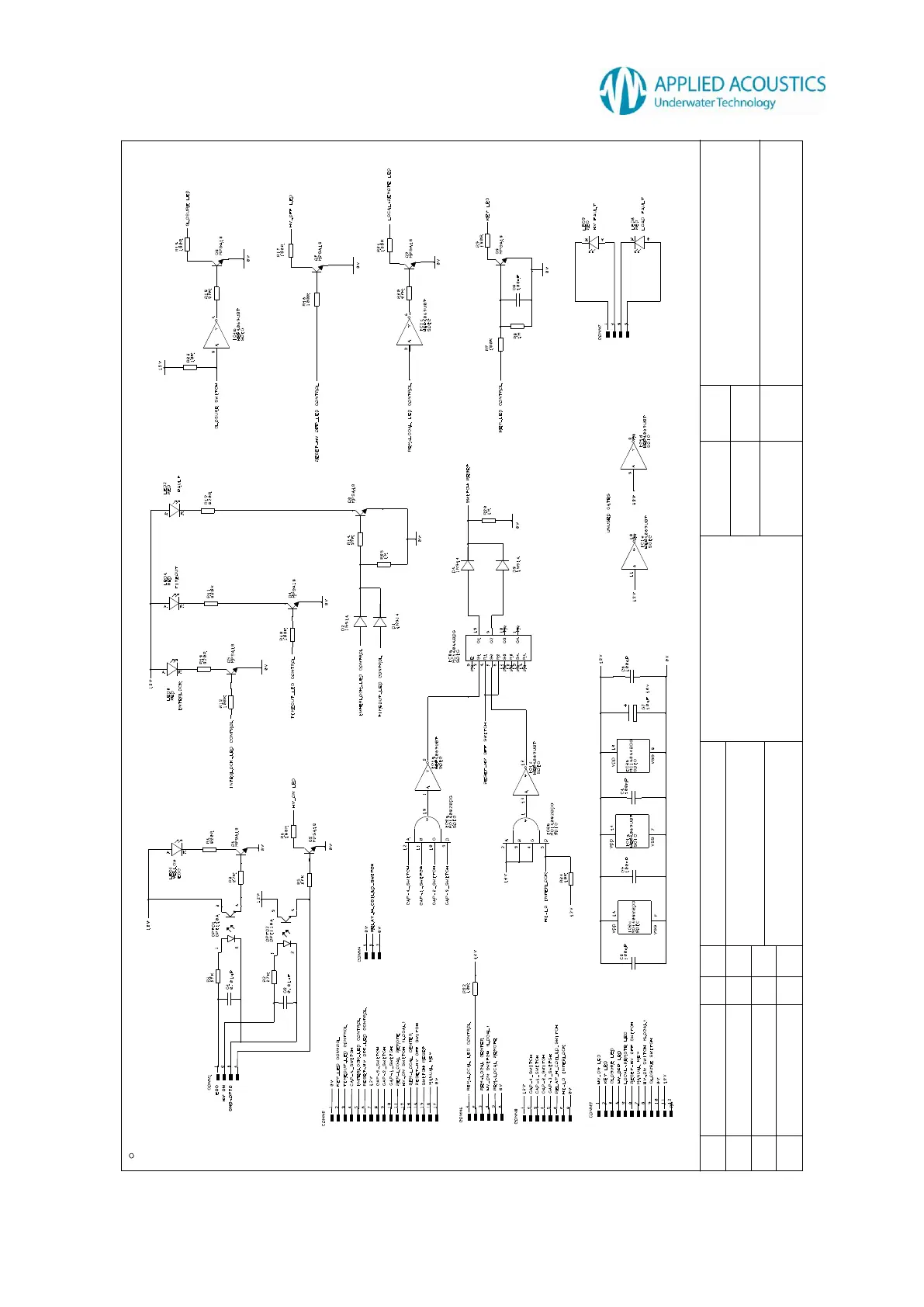

FRONT PANEL BOARD
CSP-CSPD-5100/2
2 DCR395
10/07
SJM
09/10/07
10/10/07
AD
AD
