use and maintenance Area 51

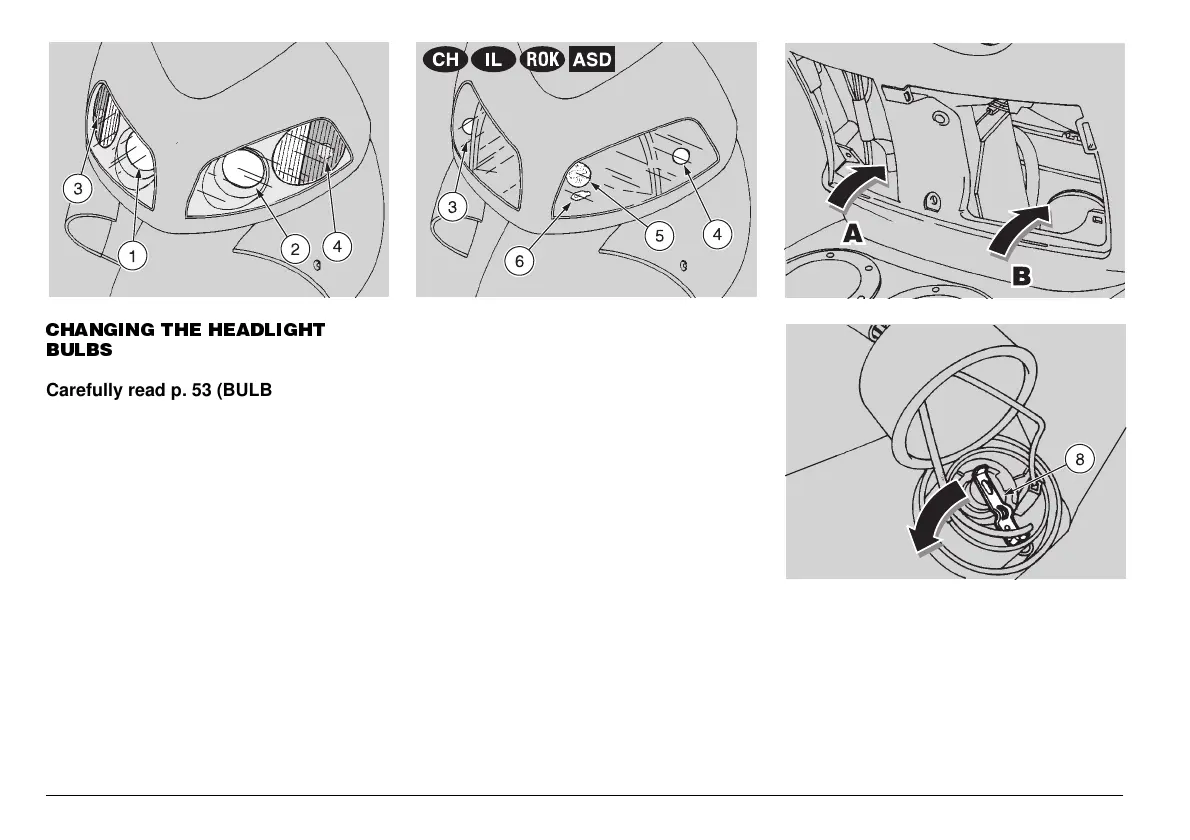

&+$1*,1* 7+( +($'/,*+7
%8/%6
Carefully read p. 53 (BULBS).
The headlight contains:
– A right, low beam bulb (1).
– A left, low beam bulb (2).
– A front right direction indicator bulb (3).
– A front left direction indicator bulb (4).
The headlight
,1j
contains:
– An upper central, low/high beam bulb
(5).
– A lower central, parking light bulb (6).
– A front right direction indicator bulb (3).
– A front left direction indicator bulb (4).
To reach the bulbs, proceed as follows:
◆
Remove the front inspection cover, see
p. 46 (REMOVING THE FRONT IN-
SPECTION COVER).
◆
Reach the protection elements of the
bulbs (1) and (3) from the right side (A).
◆
Reach the protection elements of the
bulbs (2) and (4) from the left side (B).
,1j
The bulbs (5) and (6)
are provided with a single central protec-
tion element (7); to reach it, work on the
right side (A) with one hand and on the left
side (B) with the other hand.
LOW BEAM BULBS (1) AND (2)
To change the bulbs, proceed as fol-
lows:
◆
Manually withdraw the protection ele-
ment of the bulb that must be replaced.
◆
Rotate the check tang (8) positioned at
the back of the bulb socket sidewards.
◆
Extract the bulb and replace it with a new
one of the same type.
