APRILIA ATLANTIC 125 Workshop Manual

ELECTRICAL SYSTEM
8 - 28
ATLANTIC 125 - 200
8.13. BEAM SETTING
8.13.1. BEAM HEIGHT SETTING

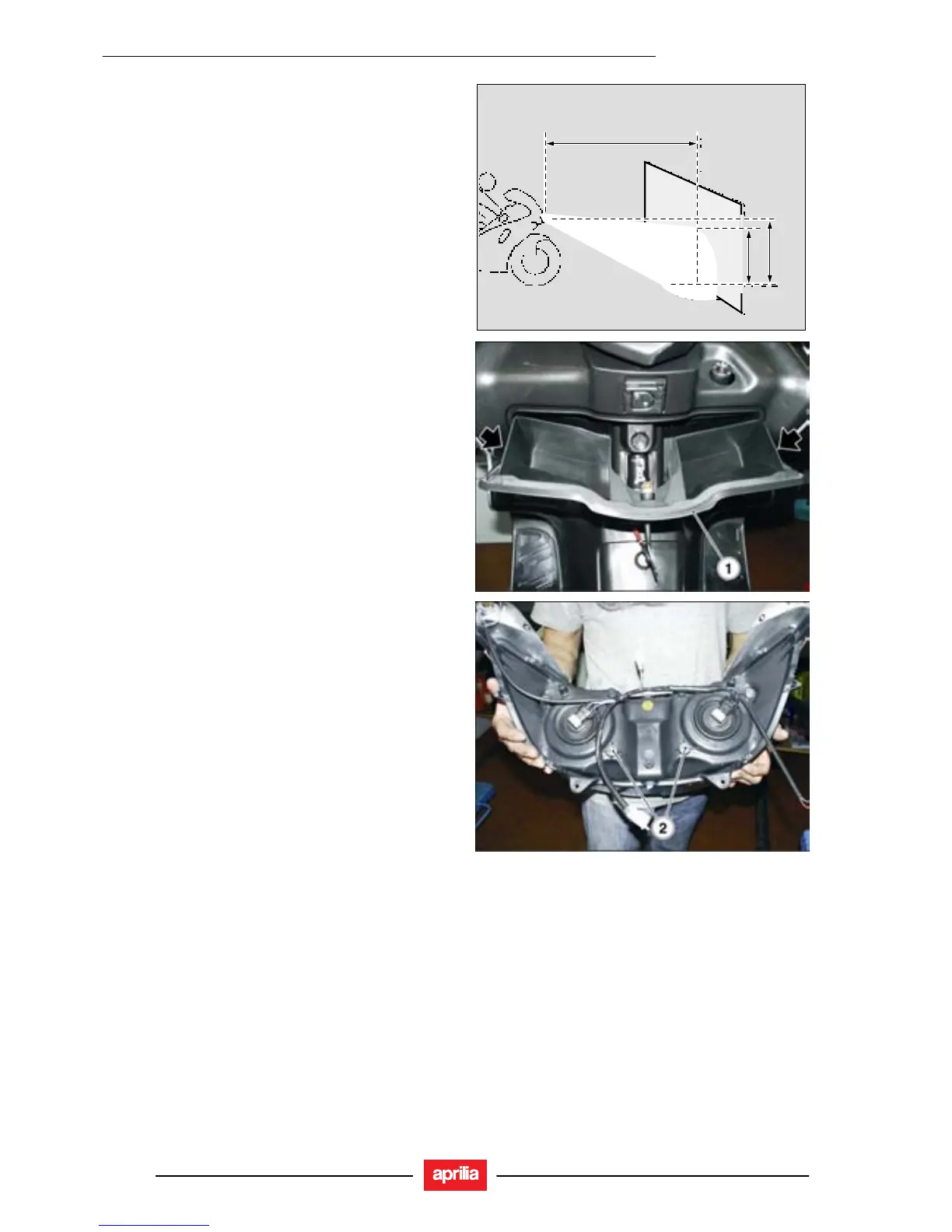

This is a quick beam inspection procedure. Place the vehicle
ten metres away from a vertical wall. It is important that the
motorcycle be on level ground.
Switch on the low beam and sit astride the vehicle. The light
spot on the wall should be just below the horizontal line of
the headlight (about nine/tenths of overall height).
9/10 H
10 m
H
To set beam height:
• Open the glove compartment (1) and unhook the side
guides by pressing moderately downwards.
• Use a screwdriver and rotate the lower adjuster screws
(2) of both beams:
TIGHTEN (turn clockwise) to lower the beam.
SLACKEN (turn anticlockwise) to raise the beam.
