APRILIA PEGASO 650 FACTORY User Manual

02_06

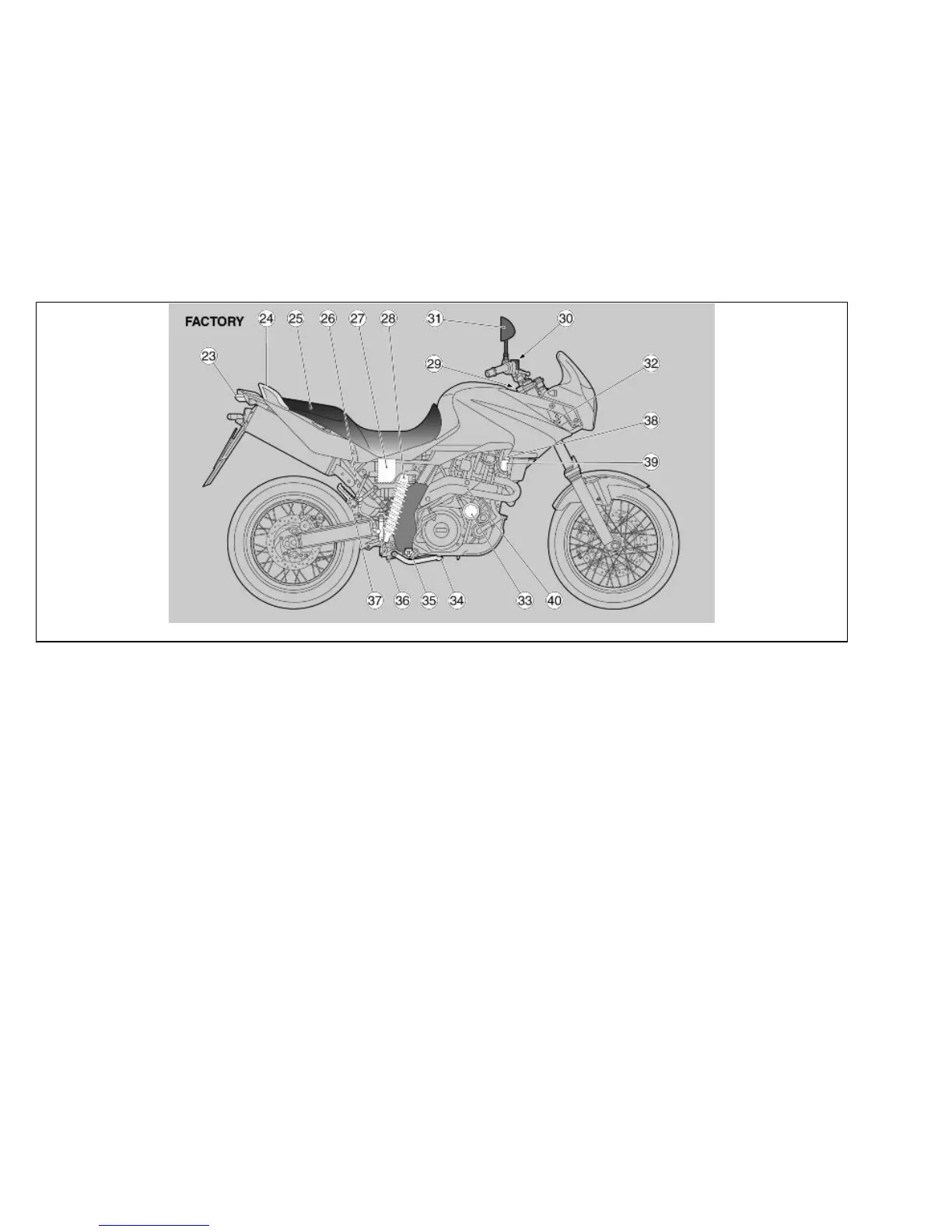

Arrangement of the main
components (02_06)
Key
1. Front headlamp
2. Ignition / steering lock switch
3. Left rear-view mirror
4. Fuel tank cap
5. Fuel tank
6. Battery
7. Electronic control unit
8. Fuse box
9. Passenger handgrip
10. Glove-box
Plaats van de
hoofdcomponenten (02_06)
Legende
1. Voorlicht
2. Schakelaar ontsteking / stuur-
slot
3. Linker achteruitkijkspiegeltje
4. Dop van de brandstoftank
5. Brandstoftank
6. Accu
7. Elektronische centrale
8. Zekeringenhouder
9. Handvat van de passagier
31
2 Vehicle / 2 Voertuing

APRILIA PEGASO 650 FACTORY Specifications

General

Displacement	652 cc
Transmission	5-speed
Fuel System	Electronic fuel injection
Cooling System	Liquid cooled
Seat Height	820 mm
Dry Weight	168 kg
Fuel Capacity	16 liters
Engine Type	Single cylinder, 4-stroke
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	240 mm disc
Power	50 hp (37 kW) @ 6, 250 rpm
