CHASSIS
7 -28
Pegaso 650 I.E.
7.1.36 REMOVING THE SADDLE SUPPORT
Carefully read 0.5.1 (PRECAUTIONS AND GENERAL
INFORMATIONS).
â—† Position the vehicle on the centre stand
m
.
PARTIAL REMOVAL
â—† Remove the exhaust silencers, see 7.1.34 (REMOV-
ING THE EXHAUST SILENCERS).

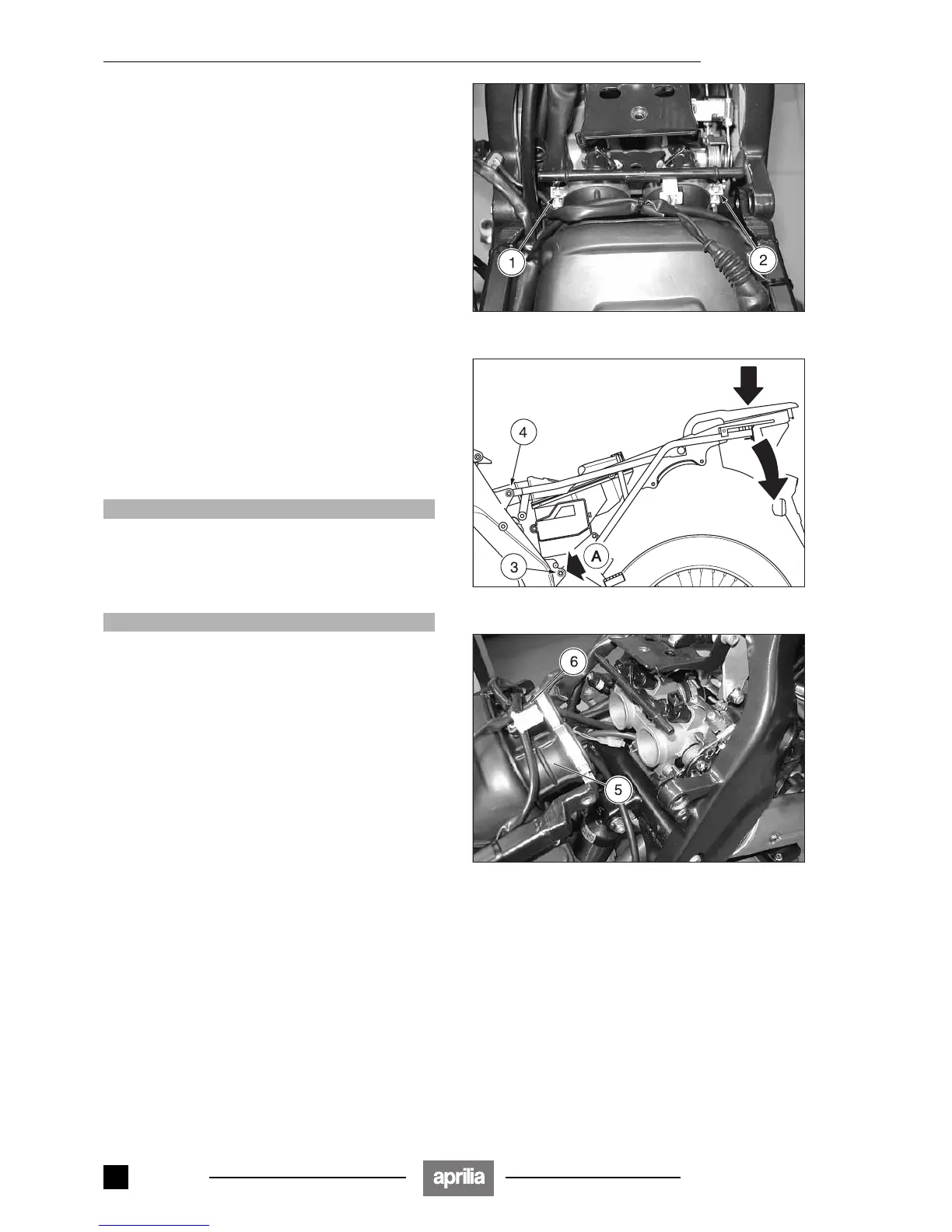

â—† Loosen the two clamps (1) (2).
~ Loosen the saddle pillar lower fastening screw (3),
giving it approximately one turn.
Saddle pillar lower screw driving torque: 25 Nm (2.5
kgm).
~ Unscrew and remove the saddle pillar upper fasten-
ing screw (4) and take the washer.
Saddle pillar upper screw driving torque: 25 Nm (2.5
kgm).
â—† Strike the luggage rack with the palm of your hand until
the whole saddle pillar/filter case assembly rotates
slightly downwards (with fulcrum in point "A"), thus re-
leasing the two couplings (5) (6) from the throttle body.
aCAUTION
Do not force the electric cables.
Do not make the saddle pillar/filter case assembly ro-
tate more than necessary.
~ Temporarily tighten the screw (3), in such a way as
to hold the saddle pillar assembly in its position.
aCAUTION
Plug the throttle body openings so as to prevent any
foreign bodies entering.
Release 00/2002-02
- 00
